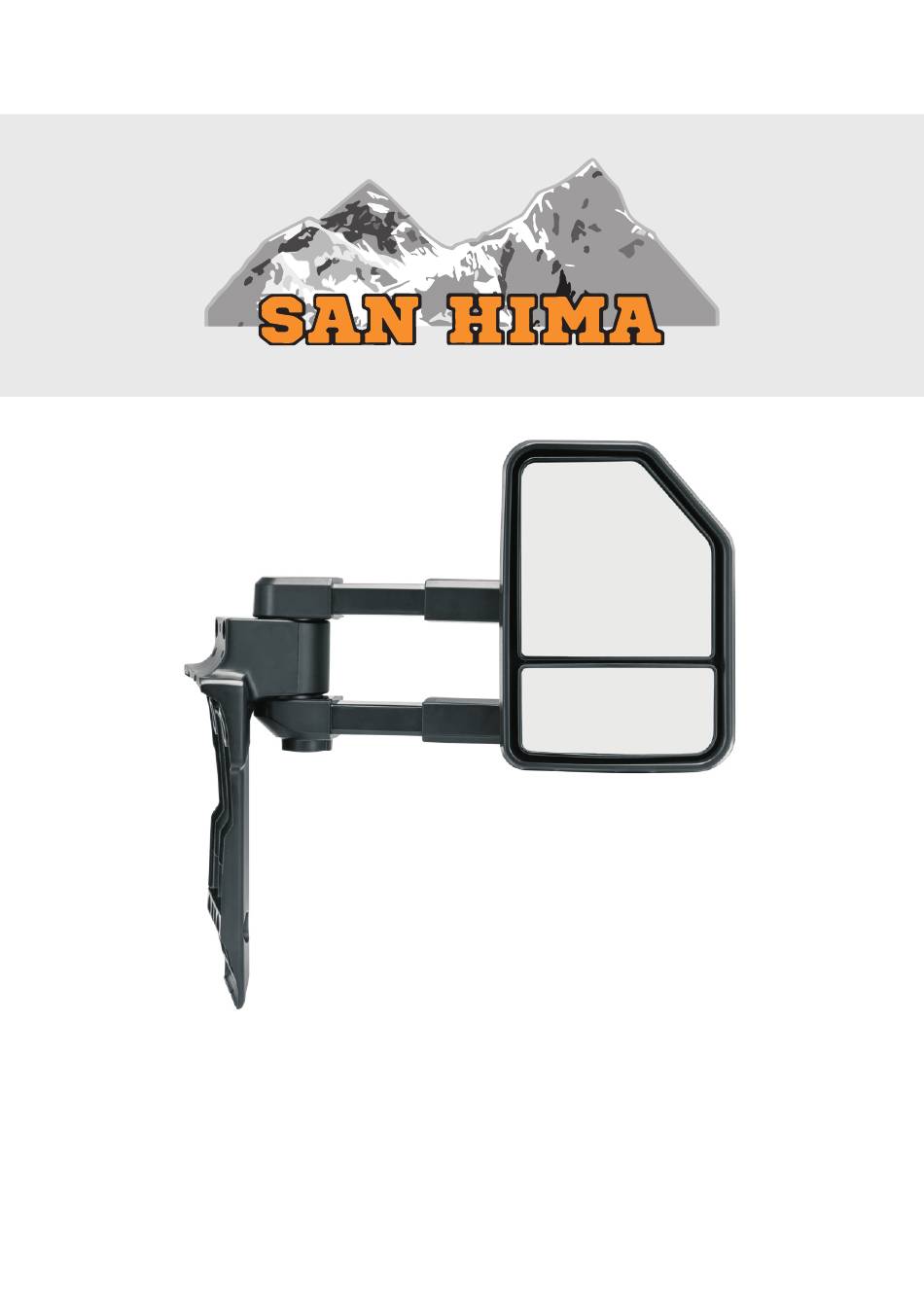

- Page 1 TOWING MIRRORS USER MANUAL SKU: SH-TMLC79-8418-SLI SH-TMLC79-8418-BLK...
- Page 2 At San Hima, we have wild souls and we are committed to designing products that are tough enough to take on any adventures and at the same time, making them safe and easy to use. These values in our conviction are what drive us to make innovations.
- Page 3 1 x Right hand side mirror 2 x Rubber Pads 1 x Super Glue 1 x Mounting Hardware 1 x Base Bolt Cover Caps Kit SH-TMLC79-8418-BLK SH-TMLC79-8418-SLI SPECIFICATION TOOLS REQUIRED (NOT INCLUDED) Product Weight (Single): 4.32kg Vehicle: Toyota Land Cruiser 70-79 1984-2019 Phillips screwdriver Color: Black &...
- Page 4 INSTALLATION 1. Prepare the Vehicle First start with removing the door panels as per recommended manufacturer's instructions. Once this is done you can remove the OE mirrors, you will also need to remove your Toyota badge to allow installation. This is easily done by carefully using a heat gun to heat up the badge to soften the glue, or you can use a small piece of fishing line behind the badge Figure 1...
- Page 5 Fit the Mirrors Secure Bolts & Backing Plates The top mounting holes in the door are already fitted with securing nuts so for this you will just need the securing bolts with washers. To secure the base holes you will need to place the supplied backing plates (FIG 3) on the inside of the door skin.
- Page 6 Push in Covers In your base bolt cover caps kit you will find 4 push in covers per mirror (FIG 6) to cover your securing bolts. The 2 small push in covers per mirror (FIG 7) should be used to cover the 2 exposed bolts which are above the securing bolts.
- Page 7 WARRANTY WARRANTY PERIOD: San Hima warrants that each pair of our towing mirrors that is purchased while this Warranty is in effect will be free from defective workmanship and materials for a period of 3 years. WHAT DOES THE WARRANTY COVER? Under normal usage conditions, this warranty covers: Any defect in design or manufacture which results in its failure to perform correctly as described.
