- Page 1 MFP72 User Manual...
- Page 2 Our MFP72 is a multi-format presentation switcher with in-built video scaling, audio embedding, audio de-embedding and EDID management. The MFP72 works in 2 modes, first as a 7 input dual output switcher, alternatively each Contents output can work independently with output 1 routing the 4x HDMI inputs only and Output 2 switching all 7 video/audio inputs.
- Page 3 VIDEO OUTPUT RESOLUTION set mode, volume setting or F/W input to the HDMI outputs (as The MFP72 includes in-built video scaler. To change the HDMI output video resolution information. above). ESC-Press to exit the menu. press the required resolution button on the bottom of the Blustream remote control.

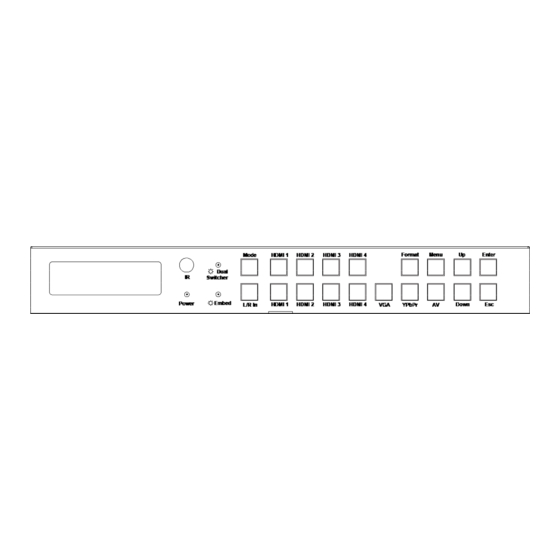

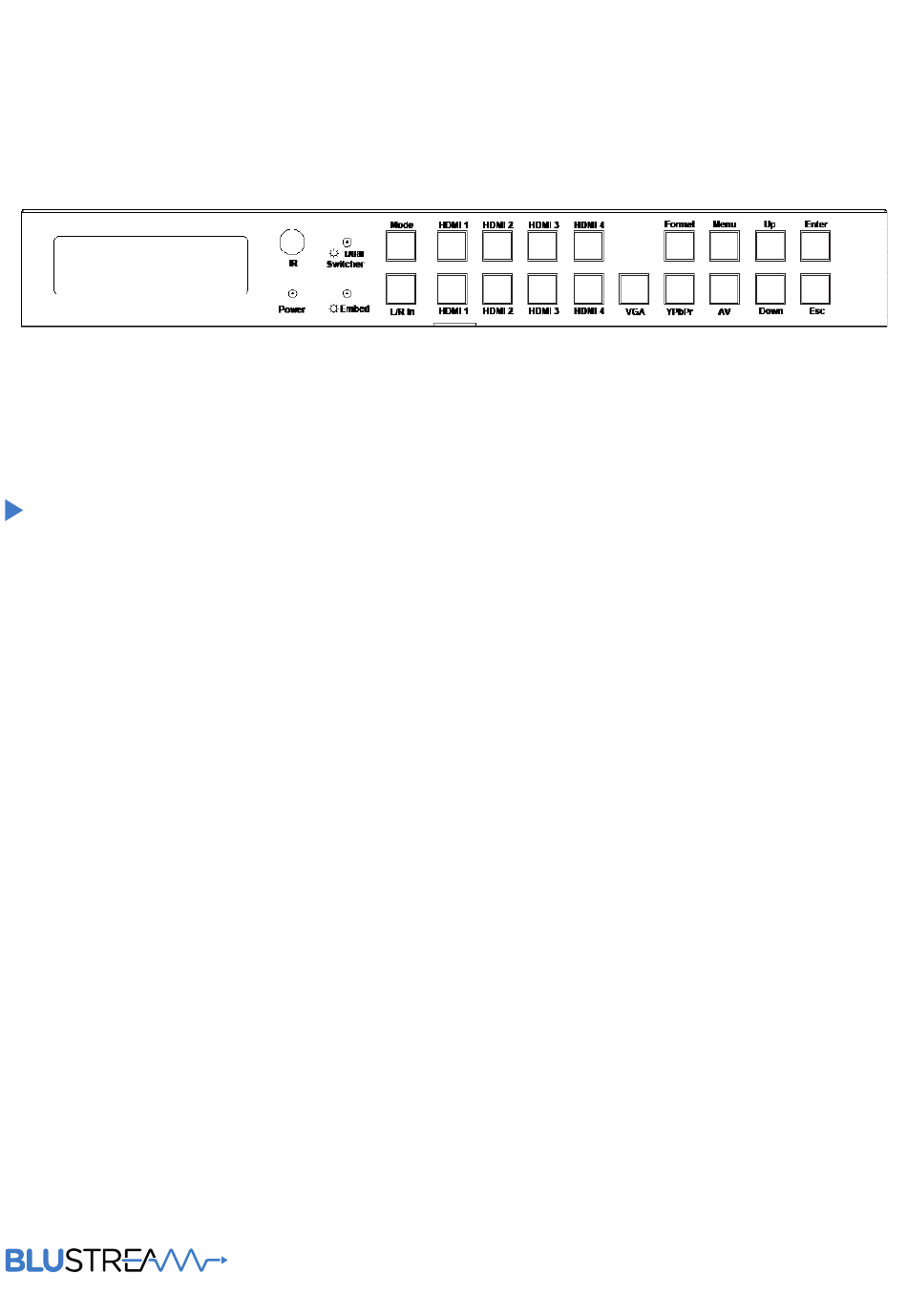

- Page 4 MFP72 MFP72 USER MANUAL USER MANUAL Infrared (IR) Distribution Matrix Front Panel Display The Blustream range of matrix and switcher products include multiple options for control and routing of IR. The front panel display gives information on the current status of the switcher: IMPORTANT: Blustream Infrared products are all 5v and NOT compatible with alternate manufacturers Infrared solutions.
- Page 5 EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This he MFP72 has an in-built video scaler allowing you to alter the resolution of the video output. data is used by the source to find out what audio and video resolutions are supported by the display then from this information the source will determine what the best resolution is to output.
- Page 6 USER MANUAL MFP72 USER MANUAL Specifications: Package Contents: Video Input Connectors: 4x HDMI Type A, 1x VGA, 1xYPbPr, 1x • 1x MFP72 Composite • 1x 5V/2A power supply Video Output Connectors: 2x HDMI Type A • 1x Remote control Audio Input Connectors: 2x 3.5mm Analogue audio stereo jack,...
- Page 7 RS232 and Telnet Commands RS232 and Telnet Commands The Blustream MFP72 can be controlled via RS-232/serial. The following pages list all available serial commands for the MFP72. Details of RS232 pin assignment can be found below. Commonly used Serial commands:...
- Page 8 MFP72 USER MANUAL MFP72 USER MANUAL RS232 and Telnet Commands Infrared Commands contact contact support@blustream.co.uk / support@blustream.com.au support@blustream.co.uk / support@blustream.com.au...
- Page 9 MFP72 USER MANUAL Infrared Commands www.blustream.co.uk www.blustream.com.au contact support@blustream.co.uk / support@blustream.com.au...
