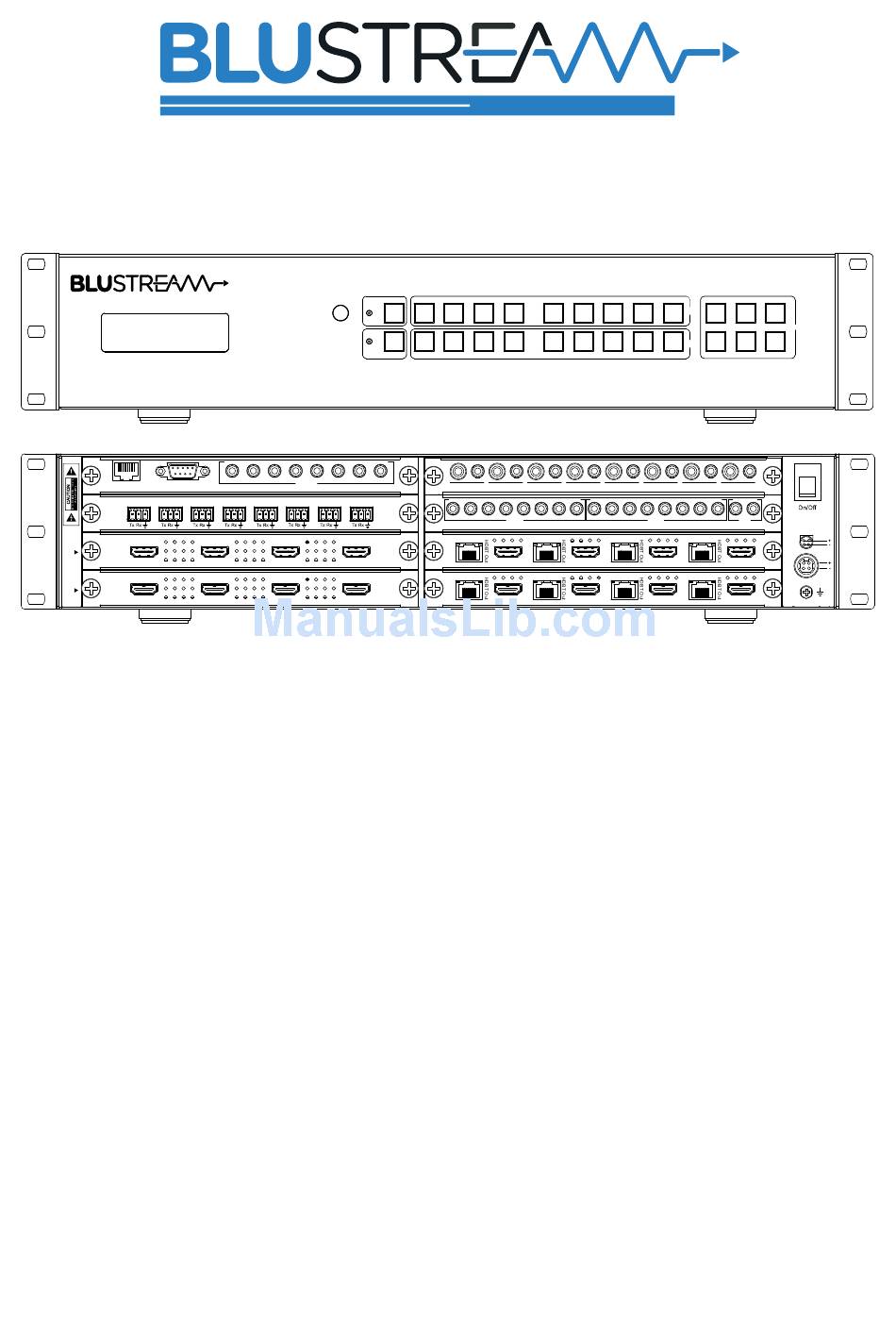

Page 1: User Manual
HDMI In HDMI In HDMI In HDMI In HDMI Out HDMI Out HDMI Out HDMI Out DC 24V In-Out HDMI In HDMI In HDMI In HDMI In HDMI Out HDMI Out HDMI Out HDMI Out Custom Pro Matrix Solution User Manual... -
Page 2: Table Of Contents
CUSTOM PRO MATRIX USER MANUAL Contents Introduction Thank you for purchasing this product. Features For optimum performance and safety, please read these instructions carefully before Panel Descriptions connecting, operating or adjusting this product. Please keep this manual for future reference. -
Page 3: Introduction
CUSTOM PRO MATRIX USER MANUAL Introduction The Blustream Custom Pro Matrix achieves new levels of performance and flexibility. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific project. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. -
Page 4: Panel Descriptions
CUSTOM PRO MATRIX USER MANUAL Panel Descriptions Front Panel Power Menu EDID Lock Select Down Enter Custom Pro 4K Video Matrix - HDCP 2.2 Platinum 4K HDBaseT™ Matrix Menu button – Press to enter EDID set PTP button – Press to mirror all LCD display –... - Page 5 The following pages list the Custom Pro Modular Board options available for the CUSTOMPRO-HUB chassis. Matrix Main Communication Board The Blustream Custom Pro Matrix Chassis (CUSTOMPRO-HUB) includes a web browser interface module for control and configuration of the matrix, RS-232 for third party control as well as analogue audio embedding per zone.
- Page 6 CUSTOM PRO MATRIX USER MANUAL Custom Pro Matrix Input Boards PRO-IN4H 4 Input HDMI Board The PRO-IN4H input board offers 4x HDMI sources that can be independently routed to any HDMI/HDBaseT output board. HDMI In HDMI In HDMI In HDMI In...
- Page 7 CUSTOM PRO MATRIX USER MANUAL Custom Pro Matrix Output Boards PRO-OUT4TLS 4 Output Dual HDBaseT Lite/HDMI Board The PRO-OUT4TLS output board offers 4x simultaneous HDMI/HDBaseT™ Lite outputs for connection to a HDBaseT™ receiver and HDMI display per zone. Note: The PRO-OUT4TLS HDBaseT connections support 1080P up to 70m and 4K up to 40m.
- Page 8 CUSTOM PRO MATRIX USER MANUAL Custom Pro Matrix Output Boards PRO-OUT2TL 2 Output HDBaseT Lite Board The PRO-OUT2TL output board offers 2x independent HDBaseT™ Lite outputs for connection to HDBaseT™ receiver devices. Note: The PRO-OUT2TL supports 1080P up to 70m and 4K up to 40m.
- Page 9 CUSTOM PRO MATRIX USER MANUAL Custom Pro Matrix Feature Boards PRO-8IR Bi-Directional IR Control Board The PRO-8IR IR routing board offers 8x IR outputs for routed control of local source hardware and 8x IR inputs for distribution of IR to compatible HDBaseT™ receivers.
- Page 10 Custom configuration of the Matrix can be achieved using the Matrix Web GUI interface. By default the Matrix is set to DHCP so will obtain an IP address based on your router configuration. If you are unsure of the IP address of the Custom Pro Matrix please use the Blustream IOS/Android Matrix app which has an auto-discover feature.
-
Page 11: Hdbaset Receiver Options
CUSTOM PRO MATRIX USER MANUAL Matrix HDBaseT Receiver Options There are three HDBaseT receiver options that are compatible with the HDBaseT outputs of the Blustream Pro Matrix:- HEX70ED-RX HEX70B-RX Mid-Level HDBaseT receiver which has the same features as the Basic HDBaseT Receiver with 2-way IR pass-through. Supports HEX70B-RX receiver but with added 2-way RS-232 control. -
Page 12: Matrix Front Panel Control
CUSTOM PRO MATRIX USER MANUAL Matrix Front Panel Control Front Panel Display - Input/Output selection The following display shows current source input selection per zone output. To change input selection first press ‘OUTPUT’ button (1-4) Press desired ‘INPUT’ button (1-4) An ‘X’... -
Page 13: Edid Control
CUSTOM PRO MATRIX USER MANUAL EDID Control EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This data is used by the source to find out what audio and video resolutions are supported by the display then from this information the source will discover what the best audio and video resolutions need to be outputted. -
Page 14: Terminating Hdbaset Cat Cable
CUSTOM PRO MATRIX USER MANUAL Terminating HDBaseT CAT cable It is important that the interconnecting CAT cable between the Blustream HDBaseT products is terminated using the correct RJ45 pin configuration. The link CAT cable MUST be a ‘straight’ (pin-to-pin) CAT cable and it is advised that this is wired to the T568B wiring standard as this format is less prone to EMI (Electro-Magnetic Interference). - Page 15 CUSTOM PRO MATRIX USER MANUAL Infrared (IR) Distribution The Blustream range of matrix products include multiple options for control and routing of IR. IMPORTANT: Blustream Infrared products are all 5v and NOT compatible with alternative manufacturers Infrared solutions. When using third party 12v IR control solutions please use supplied Blustream IRCAB cable for IR conversion.
- Page 16 (Example - Input 1 to output 1, input 2 to output 2 etc). INPUT EDID SET UP The Custom Pro Matrix provides a comprehensive range of EDID settings. Below are three examples of how to deploy the desired EDID setting when using the supplied remote.
- Page 17 CUSTOM PRO MATRIX USER MANUAL contact support@blustream.co.uk / support@blustream.com.au...
-
Page 18: Specifications
CUSTOM PRO MATRIX USER MANUAL Specifications CUSTOMPRO-HUB modular chassis Audio Input Connections: 8x 3.5mm stereo jack RS-232 serial port: 1x DB-9, female TCP/IP Control: 1x RJ45, female Rack-Mountable: 2U rack height, rack ears included Casing Dimensions (W x D x H):... -
Page 19: Specifications
CUSTOM PRO MATRIX USER MANUAL Custom Pro Video Input Boards PRO-IN2H 2 Input HDMI Board PRO-IN4H 4 Input HDMI Board Video Input Connections: 2x HDMI type A, 19-pin, female Video Input Connections: 4x HDMI type A, 19-pin, female Dimensions (W x D x H):... -
Page 20: Package Contents
CUSTOM PRO MATRIX USER MANUAL Package Contents: CUSTOMPRO-HUB PRO-8IR • 1x PRO-8IR • 1 x CUSTOMPRO-HUB • 9x IR emitter • 1 x Rack mounting kit • 9x IR receiver. • 1 x 24V/6A power supply • 9x IR 3.5-3.5mm stereo to mono, 12v to 5v interface cable •... - Page 21 CUSTOM PRO MATRIX USER MANUAL IR commands NEC Customer Code = 1898 Advanced Matrix features are not available via IR commands COMMAND COMMAND 0000 0069 0000 002a 0150 00a8 0015 0015 0015 0015 0015 0000 0069 0000 002a 0150 00a8 0015 0015 0015 0015 0015...
- Page 22 CUSTOM PRO MATRIX USER MANUAL COMMAND COMMAND 0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016...
-
Page 23: Rs-232 And Telnet Commands
RS-232 and Telnet Commands The Blustream Custom Pro Matrix products can be controlled via serial and TCP/IP. The following pages list all available serial com- mands for the Custom Pro Matrix. Details of RS-232 pin assignment can be found on page 5. -
Page 24: Rs-232 And Telnet Commands
CUSTOM PRO MATRIX USER MANUAL RS-232 and Telnet Commands COMAND ACTION COMAND ACTION AUD IN xx ANA Input Port:xx Insert Stereo To HDMI/DVI Signal Print Help Information Input Port:xx Insert Stereo To DVI Signal Only AUD IN xx AUTO HELP Print Help Information xx==[00]: All Input Port, [01...08]: Input Port... - Page 25 CUSTOM PRO MATRIX USER MANUAL COMAND ACTION EDID xx CP yy Set Input:xx EDID Copy From Output:yy Set Input:xx EDID To Default EDID:zz xx=[00]: All INPUT Port, [01...06]: INPUT Port yy=[01...06]: OUTPUT Port zz=00: HDMI 1080p@60Hz, Audio 2CH PCM zz=01: HDMI 1080p@60Hz, Audio 5.1CH DTS/DOLBY zz=02: HDMI 1080p@60Hz, Audio 7.1CH DTS/DOLBY/HD...
-
Page 26: Certifications
CUSTOM PRO MATRIX USER MANUAL Certifications FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 27 CUSTOM PRO MATRIX USER MANUAL Notes –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– contact support@blustream.co.uk / support@blustream.com.au...
