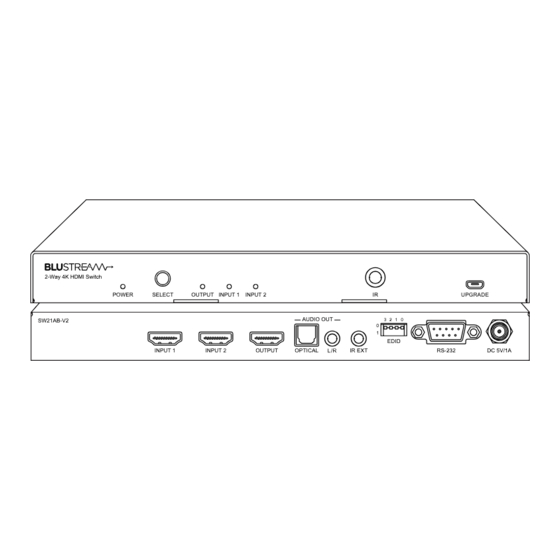

- Page 1 2-Way 4K HDMI Switch POWER SELECT OUTPUT INPUT 1 INPUT 2 UPGRADE AUDIO OUT SW21AB-V2 EDID INPUT 1 INPUT 2 OUTPUT OPTICAL IR EXT RS-232 DC 5V/1A SW21AB-V2 User Manual REVB0_SW21AB-V2_Manual...
-
Page 2: Table Of Contents
SW21AB-V2 USER MANUAL Contents Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully Introduction before connecting, operating or adjusting this product. Please keep this manual for future reference. Features Panel Descriptions Infrared Remote Control... -
Page 3: Introduction
SW21AB-V2 USER MANUAL Introduction The SW21AB-V2 is a 2-way HDMI switch with integrated audio breakout and the ability to auto-switch. The switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4. -
Page 4: Panel Descriptions
Optical S/PDIF Output - De-embed digital audio from the selected HDMI input Analogue Audio Left / Right Output (3.5mm stereo jack) - De-embedded from the selected HDMI input. Source input must be PCM 2 channel audio for the analogue output to work. The SW21AB-V2 doesn’t down-mix multi-channel audio signals... -
Page 5: Infrared Remote Control
IR Control Cable - IRCAB Blustream 5V IR receiver (supplied) to receive IR signal Blustream IR Control cable 3.5mm Mono to 3.5mm and control the SW21AB-V2 Stereo for linking third party control solutions to Blustream products. Compatible with 12V IR third party products. -
Page 6: Edid Control
By pre-determining the video resolution and audio format of the sources and display device you can reduce the time needed for EDID hand shaking thus making switching quicker and more reliable. Configuration of extender EDID settings can be achieved using the product dip-switches on the SW21AB-V2. EDID dip- switch settings are shown below. -
Page 7: Application Diagram
SW21AB-V2 USER MANUAL Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk... -
Page 8: Specifications
1 x 5V/1A DC NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate. Package Contents • 1 x SW21AB-V2 • 1 x REMSW41 Remote Control • 1 x 5V/1A DC Power Supply • 1 x IR Receiver (IRR) •... -
Page 9: Certifications
SW21AB-V2 USER MANUAL Certifications FCC NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 10: Installer Notes
SW21AB-V2 USER MANUAL Installer Notes www.blustream.com.au www.blustream-us.com www.blustream.co.uk... - Page 11 SW21AB-V2 USER MANUAL Installer Notes Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk...
- Page 12 www.blustream-us.com www.blustream.com.au www.blustream.co.uk...
