Summary of Contents for Bluestream MFP112

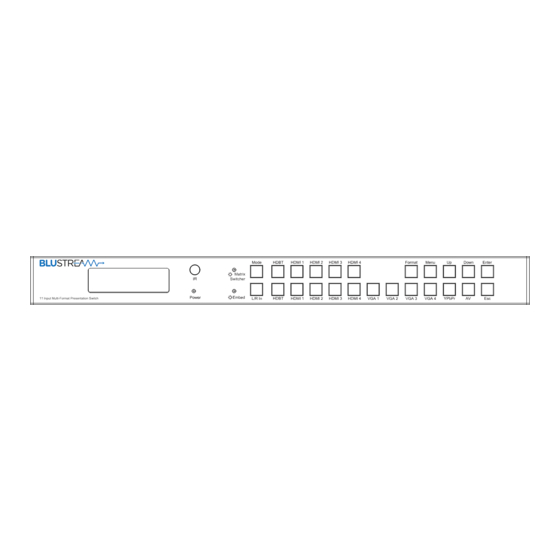

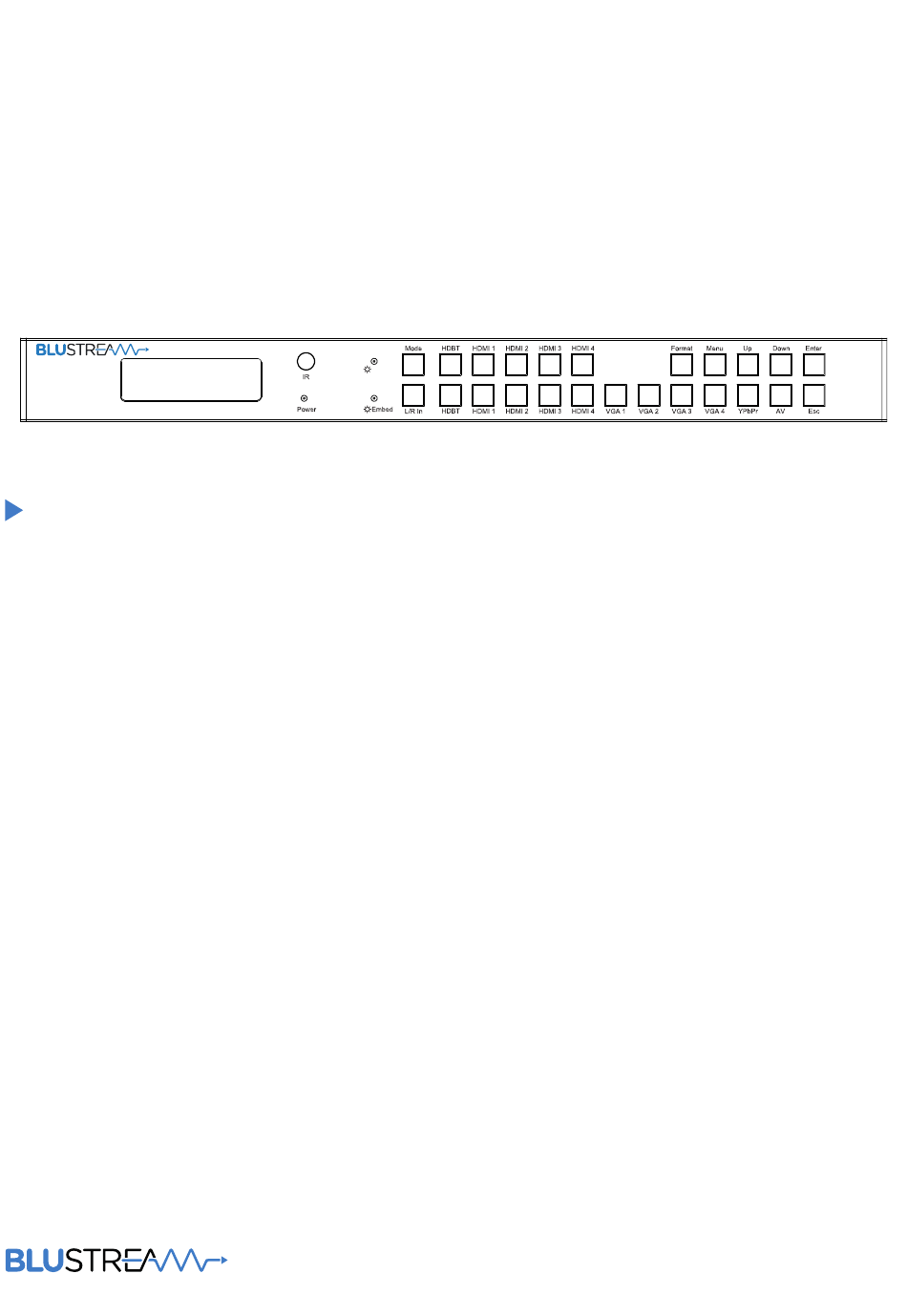

- Page 1 Matrix Switcher 11 Input Multi-Format Presentation Switch MFP112 User Manual...
- Page 2 Our MFP112 is a multi-format presentation switcher with in-built video scaling, audio embedding, audio de-embedding, EDID management and HDBaseT connectivity. The MFP112 works in 2 modes - as an 11 input dual output switcher or as a 2 output matrix. Contents With control of the switcher using the front-panel push buttons, IR remote control, TCP/IP or RS-232 interface it is an ideal solution for commercial installations.
- Page 3 2 source selection. Note: input IR receiver window. L/R in 1-4 - Connect L/R analogue and/or RX (see ‘MFP112 control ports’ Down selection button - Press to Switcher mode, or both HDMI/ must be 2ch PCM for Analogue audio audio inputs to replace original HDMI change segment’s value.
-
Page 4: Remote Control Description
Remote Control Description The MFP112 main communication ports are located on the rear panel and includes the following connections:- The MFP112 is supplied with a Blustream IR remote control which can be used to make the following control and configuration changes: OUTPUT AND INPUT SELECTION Source selection for HDMI output 1 when in Matrix Switcher mode. - Page 5 There are four HDBaseT receiver options that are compatible with the HDBaseT output on the MFP112:- When it is a requirement that source equipment is to be located away from the central Blustream MFP112 switcher there are four Blustream HDBaseT Transmitters that that can be partnered with the HDBaseT Input port and allow source equipment to be...
-
Page 6: Rj45 Pin-Out
Blustream HDBaseT Receiver. *NOTE - The same rules apply when using a Blustream HDBaseT transmitter with the MFP112 HDBaseT input port Blustream Support department are on hand to assist with signal distribution issues should they arise - please email us at one of the email addresses below. - Page 7 The front panel display gives information on the current status of the switcher: he MFP112 has an in-built video scaler allowing you to alter the resolution of the video output. hen in ‘Splitter mode’ both the HDMI outputs (output 1) and HDBaseT (output 2) can be processed via the video scaler, allowing you to Matrix Splitter Mode: alter the resolution of both outputs.
-
Page 8: Edid Control
MFP112 USER MANUAL MFP112 USER MANUAL EDID Control EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This data is used by the source to find out what audio and video resolutions are supported by the display then from this information the source will determine what the best resolution is to output. -
Page 9: Specifications
4x HDMI Type A, 1x HDBaseT RJ45, 4x VGA, 1x • 1x MFP112 The Blustream MFP112 can be controlled via serial and TCP/IP. The following pages list all available serial commands for the MFP112. Details of RS232 pin assignment can be found on page 06. Component (YPbPr), 1x Composite •... -
Page 10: Infrared Commands
AUDSCAANA Scaler Audio Input From Analog L/R Signal "Set Scaler Audio Volume AUDxx xx=[00...30]: Volume Value" Send MFP112 IR and RS232 commands to HDBaseT RX/TX/Both: vv=OFF: Disconnect With Valens IR232 vv=RRX: Remote Valens RX vv=RTX: Remote Valens TX vv=BOTH: Both Valens TX & RX "Only applicable to HDBaseT &... - Page 11 MFP112 USER MANUAL Infrared Commands (Continued) www.blustream.co.uk www.blustream.com.au www.blustream.co.uk...
