Eden 96998EDAMZ Quick Start Manual

1/2 inch zinc flow-thru lawn sprinkler spike base 3 pack

Download this manual

1/2 INCH ZINC FLOW THRU LAWN SPRINKLER

SPIKE BASE (3 PACK)

Shut o valve / ow control to easily

shut o water and swap tools without

returning to the faucet

Flow-through design to connect units

in a series

Mobile spikes – easily placed into

the soil

Assembly:

Note:

If you are not using the Flow Control Extension Adapter, simply connect the sprinkler directly to the spike.

Connect the ow control adapter to

the ow-through spike

Attach to the hose

1/2 inch female thread – Connect any EDEN sprinkler head

16028EDAMZ, 16030EDAMZ, 16039EDAMZ, or any other 1/2

inch male threaded sprinklers.

Filter washer blocks sediment and

dirt from getting into sprinkler

Robust, zinc construction made to last

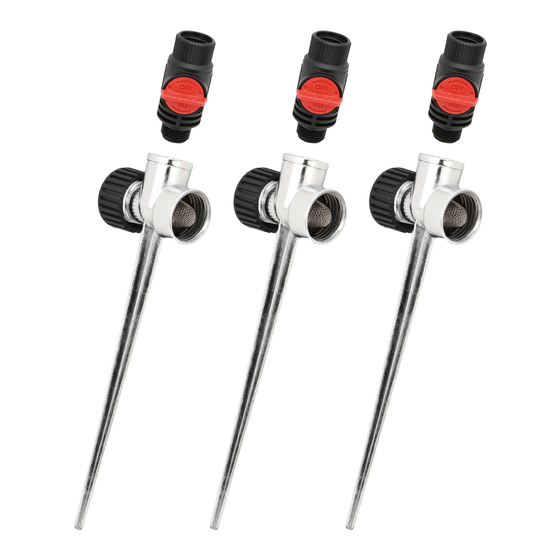

INCLUDES :

3×

Flow control extension adapters

3×

1/2 Inch Flow-Through Metal Spikes

Connect to any 1/2 inch water inlet

sprinkler head (not included)

Insert into the ground

96998EDAMZ

Need help?

Do you have a question about the 96998EDAMZ and is the answer not in the manual?

Page 1 96998EDAMZ 1/2 INCH ZINC FLOW THRU LAWN SPRINKLER SPIKE BASE (3 PACK) 1/2 inch female thread – Connect any EDEN sprinkler head Shut o valve / ow control to easily 16028EDAMZ, 16030EDAMZ, 16039EDAMZ, or any other 1/2 shut o water and swap tools without inch male threaded sprinklers.
Page 2 96998EDAMZ To extend, simply remove the end-cap and attach another hose and connect another sprinkler Adjust the ow control SPECIAL TOOLS REQUIRED CAUTION -For outdoor use with cold water only -When not in use, rinse the tool with water to remove most of the dirt, dry your tool, and store indoors...
