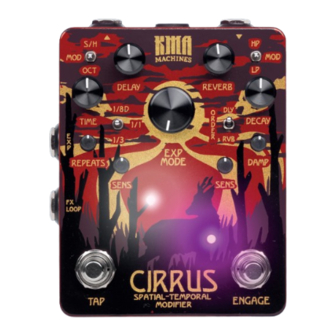

KMA CIRRUS SPATIAL-TEMPORAL MODIFIER Instructions

INPUT/OUTPUT
Upper right is your Input and upper left is your Output.
EXP-IN
Plug in your Expression pedal here. We recommend a standard
TRS connection. DO NOT use a CV source!!!
FX-LOOP
Lets you insert any pedal before the Delay and Reverb and will
also affect the dry signal. You will need to obtain a separate
Mono to TRS Stereo-Y- Splitter Cable - Ring for the output (send)
and Tip for the input (return).
ENGAGE-FOOTSWITCH
Press the switch normally to turn the pedal on and off. When
pedal is off, press and hold to engage the pedal momentarily.
Release the switch and the pedal will turn off again. Press and
hold the switch down when the pedal is engaged to max out the
Reverb decay.
TAP-FOOTSWITCH
Tap to set the Delay time. Press at least three times to set the
time. Press and hold the switch to max out the Delay repeats.
INTERNAL SPILL/TRAILS CUT DIP-SWITCH
Switch 1 - selects whether your signal is sent/not sent to the
Reverb/Delay in Bypass (useful for creative uses such as big
ambient drone pads etc.).
Switch 2 - activates hard bypass (ON) or activates the Reverb
and Delay trails (OFF).
Safety instructions
This device is intended to be used for sound processing of
signals from musical instruments. Any other use or use
under other operating conditions is considered to be impro-
per and may result in personal injury or property damage.
No liability will be assumed for damages resulting from
improper use.
Operating conditions
This device has been designed for indoor use only. To prevent
damage, never expose the device to any liquid or moisture.
Avoid direct sunlight, heavy dirt, and strong vibrations.
External power supply
Use only with 9V power supply. Failure to do so could result
in damage to the device and possibly the user. Unplug the
external power supply before electrical storms occur and
when the device is unused for long periods of time to reduce
the risk of electric shock or fire.
Warranty
We offer a 5-year warranty. The warranty expires immedia-
tely if the product is changed, operated incorrectly, intentio-
nally or negligently damaged, or if it is damaged by force
majeure or use beyond the permitted operating conditions.
Handmade in Berlin with love!
INSTRUCTION
AND WARRANTY
CIrrUs
spatIal-TEMP0raL m0dIfIEr
- CLOUDS AHEAD -
A GUIDE TO REACH THE SKY
