KMA TYLER DELUXE Quick Start Manual

Quick Start Guide
TYLER DELUXE
Thank you for purchasing this
We hope you get many years of pleasure and use from this device and if
this is your first product from our brand, welcome!
This simple connecting guide should help start you on your journey to
sonic creativity.
However, if you wish to know all of the pedal's hidden secrets, you can find
the full manual online on the product page at:
kma-machines.com
Some quick fun examples of use:
You can insert different modulation pedals, for example insert a lush
phaser for the lows and a nice shimmering delay for the highs and TYLER
DELUXE will make it sound like two different guitars are playing at once.
Mix up your modulation pedals with any of your dirt pedals, for a very
pronounced and punchy sound all coming from one amp.
Bass players also want to retain their low end while using their favourite
fuzz or dirt pedal. Insert your dirt box in the high-pass FX-Loop and
adjust the cut-off frequency of the High and Low Pass to your needs.
Dial in your preferred ratio of those Low and High Pass signals, engage the
HP LOOP foot switch and you will never turn TYLER DELUXE off again!

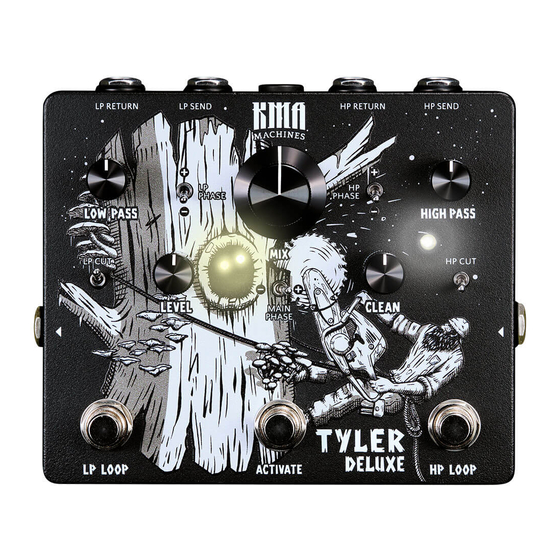

TYLER DELUXE Specifications
•
Two-Channel Signal Splitter - variable 12 dB/oct. Low/High-Pass
•
Fully-Isolated and Transformer-based FX Loop Sends
Frequency Splitter Pedal.
•
Variable Clean Blend and Mix controls
- for the perfect blend of highs and lows
•
Loop-dedicated and main Phase-Inverters
•
Relay-based Soft-Switching
•
Separate Buffered FX-Loops for each Filter
•
Active Level Control - up to 12 dB Boost
•
Power requirements:
9 V DC, centre -, 2.1mm, >100 mA max. current draw
Please follow us on social:
E-mail: hello@kma-machines.com | Website: www.kma-machines.com
Made in Berlin, Germany since 2013
@kmamachines
© 2021 KMA Audio Machines UG & Co.KG
QSG V1.01
