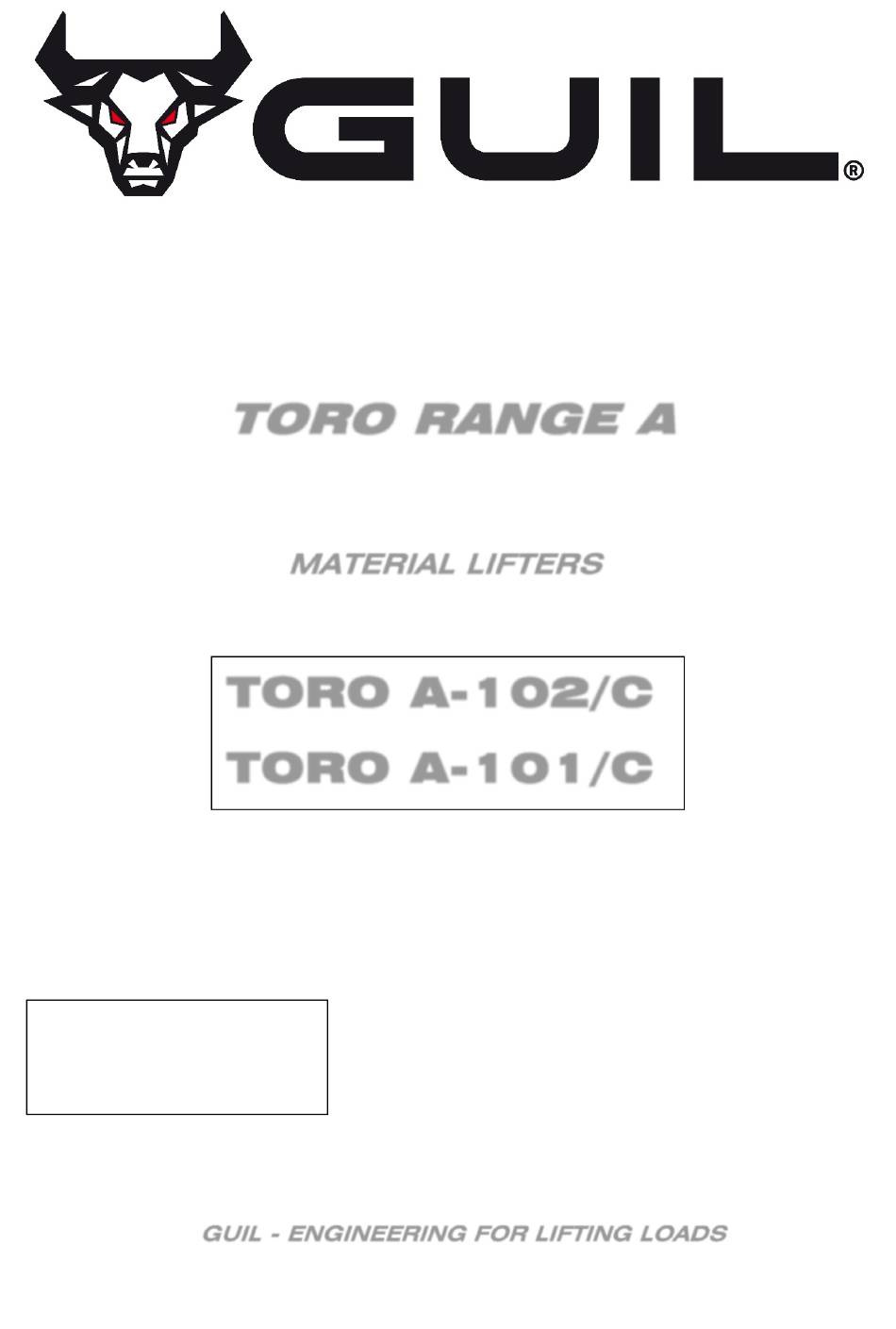

USER MANUAL
TORO RANGE A
MATERIAL LIFTERS
TORO A-102/C
TORO A-101/C
ENGLISH
GUIL - ENGINEERING FOR LIFTING LOADS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TORO A Series and is the answer not in the manual?

Questions and answers

Summary of Contents for GUIL TORO A Series

  • Page 1 USER MANUAL TORO RANGE A MATERIAL LIFTERS TORO A-102/C TORO A-101/C ENGLISH GUIL - ENGINEERING FOR LIFTING LOADS...
  • Page 2: Table Of Contents

    Failure to comply with the safety or operating instructions in this manual may result in damage to the tower, the lifted load, personal injury or even death! The instructions laid out in this manual must be followed at all times. www.guil-lifters.com - GUIL -...
  • Page 3: Introduction

    ® If either of the manuals are misplaced please contact your dealer or the manufacturer (GUIL SAFETY RECOMMENDATIONS Prior to set-up, be aware of and avoid the following hazardous situations: •...
  • Page 4: Set-Up And Working Area Safety

    If it were necessary to replace components, it is important that it is replaced with an original spare part. • Do not exceed the rated load capacity recommended by the manufacturer GUIL ® • Do not lift the load unless: the blocking hook is unhooked, the legs are correctly installed and the brakes on the wheels are activated.
  • Page 5: Pre-Operation Inspection

    • Never raise objects that make a large surface for the wind. If it is absolutely necessary please contact your ® dealer or the manufacturer (GUIL ) for safety advice. •...
  • Page 6: Operating Instructions

    NOTE: The legs have 2 width positions to offer greater stability when raising a wide load or to be used in reduced work areas. www.guil-lifters.com - GUIL -...
  • Page 7 5.- Remove the profile blocking hook by twisting the central part to lengthen it and unhook it from the eye nut. 6.- Hook it on the back part of the mast sections so that it isn’t left loose. www.guil-lifters.com - GUIL -...
  • Page 8: Reversing The Forks

    MAGNETIC FORK 5.- Install the forks in the working position. LOCKING BOLT When the forks are in the working position they should slope slightly upwards. 6.- Secure using the magnetic locking bolts. www.guil-lifters.com - GUIL -...
  • Page 9: Function Test

    * If the load isn’t correctly placed on the forks this could cause a serious accident, or even death. * Ensure that the load you wish to raise does not exceed the rated load capacity recommended by the manufacturer. * Ensure the profile blocking hook is not engaged. www.guil-lifters.com - GUIL -...
  • Page 10: Lowering The Load

    Unblock the IPB system using the releasing. AFTER EACH USE 1.- Completely lower the forks and remove any adaptor being used that is fixed to them. 2.- Put the forks into the storage position. www.guil-lifters.com - GUIL -...
  • Page 11 IMPORTANT: Always attach the mast profile blocking hook to the profiles to prevent sliding during horizontal transportation. 5.- Select a safe storage location making sure it is: on a firm and level surface, protected from the elements. www.guil-lifters.com - GUIL -...
  • Page 12: Transport

    • Do not replace parts of the TORO lifter that are critical to stability or structure with items of different strength ® or specification. If it were necessary to replace parts, please contact your dealer or the manufacturer GUIL www.guil-lifters.com - GUIL -...
  • Page 13: Risk Assesment

    BAD WEATHER CONDITIONS. DO NOT SET UP. UNPREDICTABLE WEATHER USE EXTRA SAFETY PRECAUTIONS. CONDITIONS. 1.- DO NOT LIFT. THE LEGS DO NOT LOCK INTO THE HORIZONTAL POSITION. 2.- CONSULT A GUIL TECHNICIAN. UNQUALIFIED PERSONNEL. COMPLETELY PROHIBITED. www.guil-lifters.com - GUIL -...
  • Page 14 HOOK. THE TELESCOPIC MASTS WON’T 2.- ENSURE THE CABLE IS SECURED TO RAISE. THE WINCH DRUM. 3.- CONSULT A GUIL TECHNICIAN. 1.- UNBLOCK THE BRAKES ON THE WHEELS. DIFFICULTIES IN MOVING THE 2.- CHECK THERE IS NOTHING LIFTER / NO LOAD.
  • Page 15 POSITION THE TOWER TO WINCH HANDLE STICKS PREVENT DAMAGE TO THE OUT. HANDLE. LIFTER LOOSE IN THE SECURE THE LIFTER WITH TRANSPORT VEHICLE. SLINGS OR ROPES. THE LIFTER CANNOT BE USE SUITABLE LIFTING LOADED INTO THE VEHICLE. TECHNIQUES. www.guil-lifters.com - GUIL -...
  • Page 16: Guarantee

    4. In the case of special products manufactured by GUIL to customer specifications, or from drawings or models, GUIL takes no responsibility for the technical quality of such special products. In any case, the products in question are not covered by the guarantee.
  • Page 17 ANEXO / ANNEX ELEVADORES DE CARGA MATERIAL LIFTERS TORO A-102/C TORO A-101/C ENGINEERING FOR LIFTING LOADS...
  • Page 18 ® Ante cualquier duda o problema, no dude en ponerse en contacto con el fabricante GUIL This document is an annex to the User Manual and therefore the rules, warnings, suggestions etc. that are found in that document must also be applied to this document.
  • Page 19: Medidas / Measurements

    30.5 / 12 Número de perfiles / Number of sections Carga máxima / Maximum load (kg / lbs) 170 / 375 150 / 331 Peso / Weight (kg / lbs) 67.5 / 149 77.5 / 171 www.guil-lifters.com - GUIL -...
  • Page 20: Diagrama De Carga / Load Chart

    40 / 16 170 / 375 40 / 16 150 / 331 50 / 20 150 / 331 50 / 20 130 / 287 60 / 24 130 / 287 60 / 24 110 / 243 www.guil-lifters.com - GUIL -...
  • Page 21 PLATAFORMA DE CARGA / ACT-04/L LOAD PLATFORM from 0 to 24.8 in ADAPTADOR PARA PERSIANAS Y de 0 a 60 cm PUERTAS ENROLLABLES / ACT-06 ADAPTOR TO INSTALL ROLLER DOOR from 0 to 23.6 in AND WINDOW SHUTTERS www.guil-lifters.com - GUIL -...
  • Page 22: Planos De Despiece / Exploded Drawings

    – Ref. TORO A-102/C, TORO A-101/C GUIL PLANOS DE DESPIECE / EXPLODED DRAWINGS El número de perfiles dependerá del modelo del elevador. The number of profiles will depend on the lifter’s model. www.guil-lifters.com - GUIL -...
  • Page 23 REF. 0001702 - RUEDAS ABATIBLES / TRANSPORTATION WHEELS ............A18 Nr. 10: REF. 0003267 - PATA IZQUIERDA / LEFT STABILISER LEG ................. A19 Nr. 11: REF. 0003268 - PATA DERECHA / RIGHT STABILISER LEG ................ A19 www.guil-lifters.com - GUIL -...
  • Page 24 0000320 TORNILLO DIN912 M08X020 8.8 ZN 0000140 ARANDELA DIN9021 M08 ZN 0000080 TUERCA DIN985 M08 ZN 0000660 TORNILLO DIN912 M10X035 8.8 ZN 0000194 ARANDELA DIN9021 M10 ZN 0000195 TUERCA DIN985 M10 ZN 0003735 TENSOR BLOQUEO TRANSPORTE www.guil-lifters.com - GUIL -...
  • Page 25 – Ref. TORO A-102/C, TORO A-101/C GUIL Nr. 2: REF. 0003154 - PERFILES ENSAMBLADOS TORO A-102/C / ASSEMBLED PROFILES TORO A-102/C REF. 0003054 - PERFILES ENSAMBLADOS TORO A-101/C / ASSEMBLED PROFILES TORO A-101/C Ref. 0003154 (TORO A−102/C) Ref. 0003054 (TORO A−101/C) www.guil-lifters.com - GUIL -...
  • Page 26 0001501 PLANCHA SUPERIOR ULK 500 0003211 PLANCHA INFERIOR TORO A 0001687 REMACHE DIN7337 4,0X16 ALUMINIO 0000166 TORNILLO DIN912 M10X025 8.8 ZN 0000144 ARANDELA DIN125 M10 ZN 0000195 TUERCA DIN985 M10 ZN 0003155 MONTAJE BASE TORO A www.guil-lifters.com - GUIL -...
  • Page 27 TORNILLO DIN912 M12X170 8.8 ZN 0000078 ARANDELA DIN125 M12 ZN 0000182 ARANDELA DIN127 M12 ZN 0001187 TUERCA DIN934 M12 ZN 0000336 PALOMILLA 6X24 M10 PASANTE CINCADA 0000194 ARANDELA DIN9021 M10 ZN 0002339 TORNILLO DIN912 M10X080 8.8 ZN www.guil-lifters.com - GUIL -...
  • Page 28 TORNILLO DIN7991 M04X16 10.9 ZN 0001142 TUERCA DIN985 M04 ZN 0000826 TUERCA DIN1587 M06 ZN 0000445 TUERCA DIN985 MO6 ZN 0001145 TORNILLO DIN912 M06X030 8.8 ZN 0000224 TORNILLO DIN912 M08X025 8.8 ZN 0002775 TUBO TERMORETRACTIL 9.5 MM ROJO 16 MM www.guil-lifters.com - GUIL -...
  • Page 29 – Ref. TORO A-102/C, TORO A-101/C GUIL Nr. 5: REF. 0002502 - COMPONENTES TRAMO I / 1st PROFILE COMPONENTS www.guil-lifters.com - GUIL -...
  • Page 30 0001325 POLEA DE COMPRA DE 45X10 0001326 SEPARADOR POLEA BASE ULK 500 0001407 PASADOR ELSATICO DIN1481 06X45 0001003 TORNILLO DIN7991 M10X040 10.9 ZN 0001680 ENGANCHE CABLE ULK 500 0002775 TUBO TERMORETRACTIL 9.5 MM ROJO 16 MM www.guil-lifters.com - GUIL -...
  • Page 31 – Ref. TORO A-102/C, TORO A-101/C GUIL Nr. 6: REF. 0002504 - COMPONENTES TRAMO II DERECHA / 2nd PROFILE COMPONENTS - RIGHT www.guil-lifters.com - GUIL -...
  • Page 32 POLEA DE COMPRA DE 45X10 0001326 SEPARADOR POLEA BASE ULK 500 0001407 PASADOR ELSATICO DIN1481 06X45 0001260 TAPITA ALUMINIO ULK 500 0002042 TORNILLO DIN7982 3.9X19 ZN 0000070 TORNILLO DIN933 M12X025 8.8 ZN 0002775 TUBO TERMORETRACTIL 9.5 MM ROJO 16 MM www.guil-lifters.com - GUIL -...
  • Page 33 REF. 0002508 - COMPONENTES TRAMO III IZQUIERDA / 3nd PROFILE COMPONENTS – LEFT REF. 0002509 - COMPONENTES TRAMO III DERECHA / 3nd PROFILE COMPONENTS - RIGHT 7A - 0002508 TORO A-102/C 7B - 0002509 TORO A-101/C www.guil-lifters.com - GUIL -...
  • Page 34 0000171 TORNILLO DIN912 M08X040 8.8 ZN 0000140 ARANDELA DIN9021 M08 ZN 0001444 CASQUILLO BISAGRA ULK 500 0000194 ARANDELA DIN9021 M10 ZN 0002413 NIVELA ACRILICO NT29 0001143 TORNILLO DIN7991 M04X016 10.9 ZN 0001142 TUERCA DIN985 M04 ZN www.guil-lifters.com - GUIL -...
  • Page 35 CANCAMO DIN580 M10 0003585 TAPON GOMA INFORMACION 60 Nr. 9: REF. 0001702 - RUEDAS ABATIBLES / TRANSPORTATION WHEELS DENOMINACIÓN / DESCRIPTION CANT/QTY 0002120 SOPORTE RUEDAS MOVILES TORO B 0002898 ARO 100 TRANSPORTE 0002880 MANGO TRANSPORTE ULK 500 www.guil-lifters.com - GUIL -...
  • Page 36 0000194 ARANDELA DIN9021 M10 ZN 0000143 ARANDELA DIN127 M10 ZN 0000660 TORNILLO DIN912 M10X035 8.8 ZN 0003209 ARO 50 POLIPROPILENO 0000602 TORNILLO DIN912 M08X045 8.8 ZN 0000140 ARANDELA DIN9021 M08 ZN 0000716 TUERCA DIN1587 M08 ZN www.guil-lifters.com - GUIL -...
  • Page 37: Declaración De Conformidad Ce / Ec-Certificate Of Conformity

    – Ref. TORO A-102/C, TORO A-101/C GUIL DECLARACIÓN DE CONFORMIDAD CE / EC-CERTIFICATE OF CONFORMITY www.guil-lifters.com - GUIL -...
  • Page 38: Libro De Mantenimiento / Maintenance Record

    Servicio realizado por / Checked by: Fecha / Date: Operación / Tested elements: Servicio realizado por / Checked by: Fecha / Date: Operación / Tested elements: Servicio realizado por / Checked by: Fecha / Date: Operación / Tested elements: www.guil-lifters.com - GUIL -...
  • Page 39 Servicio realizado por / Checked by: Fecha / Date: Operación / Tested elements: Servicio realizado por / Checked by: Fecha / Date: Operación / Tested elements: Servicio realizado por / Checked by: Fecha / Date: Operación / Tested elements: www.guil-lifters.com - GUIL -...
  • Page 40 VAT No ES- B96498829 P.I. La Creu C/ Ismael Tomás Alacreu, 28 46250 L’Alcúdia (VALENCIA) SPAIN Tel: + 34. 96 299 65 00 Fax: + 34. 96 254 08 33 www.guil-lifters.com info@guil.es Fecha de edición de este manual / Manual edition date: 01/2022...
