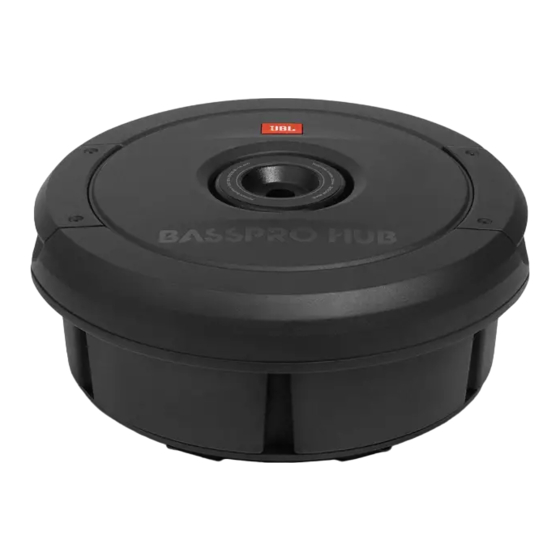

Harman JBL BASSPRO HUB Owner's Manual

THANK YOU FOR YOUR PURCHASE ...
Your JBL product has been designed to provide you with
D
the performance and ease of operation you would expect
from JBL.
• Please take time to read your owner's manual in its
entirety before operating or installing your subwoofer.
• Keep the owner,s manual for JBL BassPro Hub in your
glove compartment along with the owner,s manual for
your car.
• Put your subwoofer sales receipt with other important
documents in order to expedite warranty service if
needed.
ABOUT THE MANUAL
This manual describes general installation guidelines
and operation instructions. However, please note that
proper installation of mobile audio and video components
requires qualified experience with mechanical and electrical
procedures. If you do not have the knowledge and tools to
successfully perform this installation, we strongly recommend
consulting an authorized JBL dealer about your installation
options. Keep all instructions and sales receipts for
reference. Consider this manual as an indispensable feature
of your subwoofer.
What's in the box:
1 x JBL BassPro Hub
1 x wiring harness
1 x vehicle mounting post
1 x remote controller with 16-2/5"(5m) cable
1 x Owner's manual
INSTALLATION
IMPORTANT: Disconnect the vehicle's negative (-) battery
terminal before beginning the installation.
NOTE: You may find it more convenient to make all of the
connections to the amplifier base before you permanently
mount it.
MOUNTING THE BASSPRO HUB
The BassPro Hub mounts inside the rim of the spare tire in
your trunk. To mount the BassPro Hub properly, follow these
steps:
1 . Remove the vehicle's spare mounting post.
2. Make sure that the spare tire is placed in the trunk with
the outside of the tire facing downwards; the back of
the rim should be facing you. This will ensure sufficient
mounting depth for the BassPro Hub.
3. Carefully place the BassPro Hub inside the rim of the
spare tire.
4. Insert the BassPro Hub mounting post into the slot in the
center of the BassPro Hub. When it reaches the spare
tire mounting bracket, begin turning clockwise to thread
the post into the bracket and tighten. Some applications
require the use of the included adapter to provide a
threaded slot for the mounting post.
NOTE: To keep from damaging the BassPro Hub or the
spare tire rim, do not overtighten the mounting post.
T
l~
original base
T
'il
Take outthe
BASSPRO HUB INPUT PANEL
You'll make all wiring connections at the panel on the right
side of the BassPro Hub. To access the panel, remove two
screws securing the cover on the top panel of the BassPro
Hub, then lift off the cover (see illustration below).
