molex Mi2 Operating Manual

Molex Japan Co., Ltd.
1. Specifications
Connector name
Mi2 Single row receptacle
Mi2 Single row board-in right angle
2. Operation steps
No Operation steps
Set a "connector (1)" in the "holder (4)", push
1
the "locator (2)", and fix it with the "knob (3)".
Install the "holder (4)" in the main body as
shown in figure and insert it in the position in
2
which the plunger enters the first dent of the
back of a holder.
Insert a "wire (5)" from the wire insertion
entrance until bumps to the wall and confirm
3
that the wire point touches to the wall.
In the state, the termination of a wire is
executed grasping the "handle (6)" strongly.
4
Next, shift the holder to the next circuit.
"Note" Please do not use this tool except the termination work of the specified connector.
OPERATING MANUAL

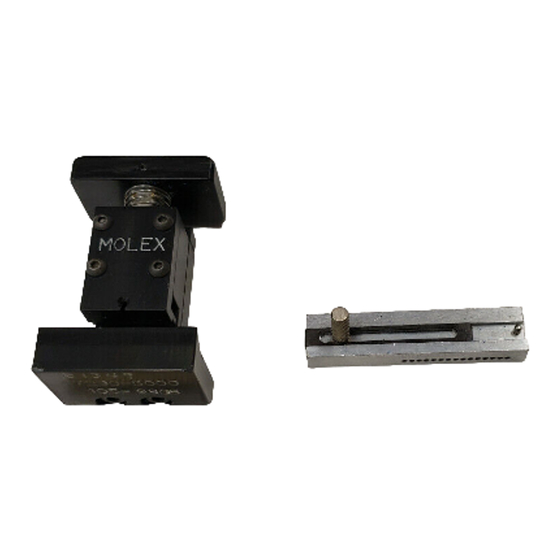

Tool Name: Mi2 HAND TOOL
Tool Number：57290-5000
Product number
52484
52693
Explanation figure
Knob (3)
Connector (1)
Grasp strongly.
Touch the point to
the wall.
Page 1 of 2
INSTRUCTION MANUAL
IS-0076E
ISSUED 1993-10-19
REVISED 2007-02-23
REV. C
Circuit number
2-15
2-15
Locator (2)
Holder (4)
Install in the main
body
Wire (5)
Wire (5)
