INSTALLATION

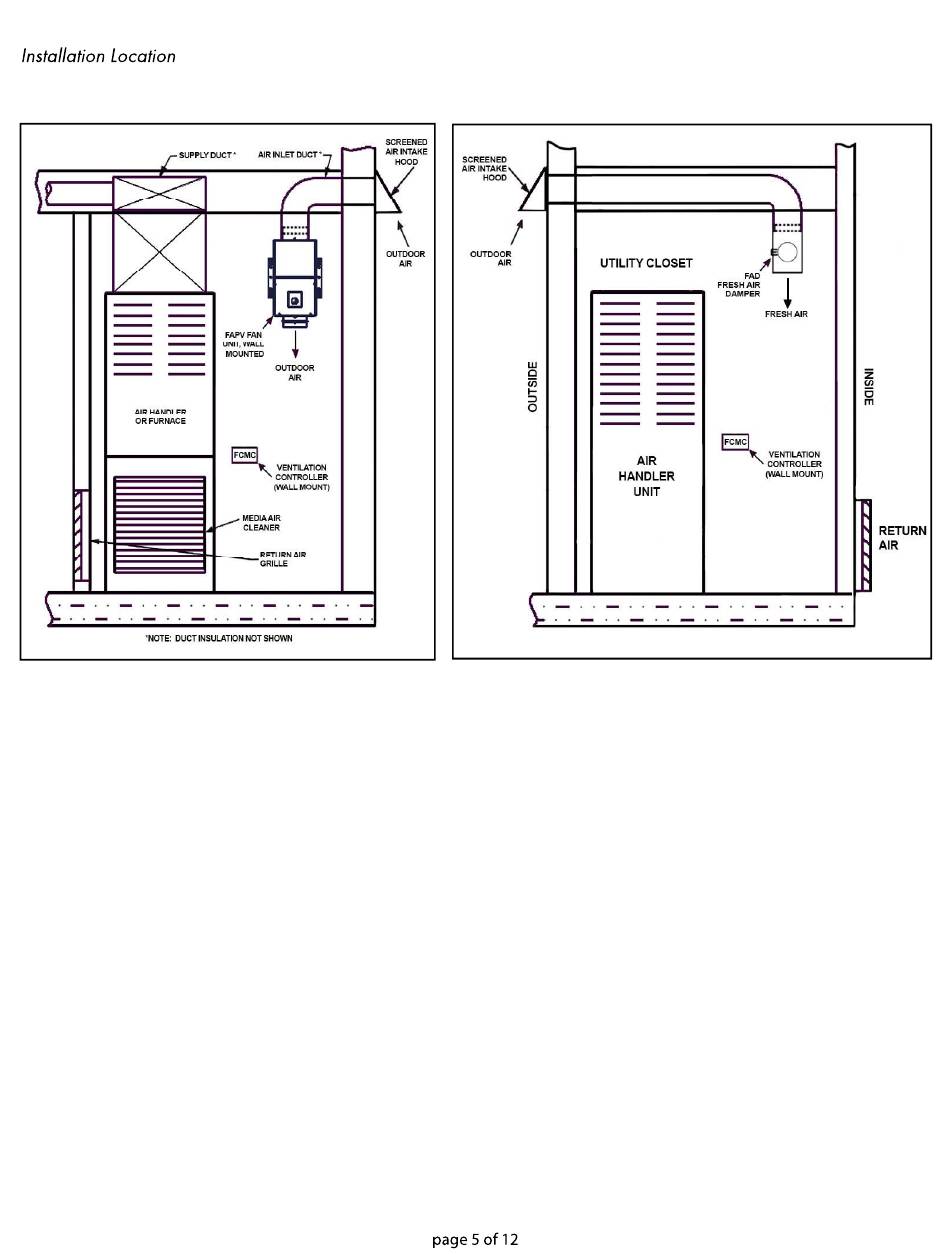

The FCMC has been designed to install directly to the wall in the mechanical utility closet. Refer to the below
installation diagrams for additional information.
FCMC INSTALLATION WITH FAPV
The FCMC will perform best if the control is mounted where both outside air and return air can blend. Mount-
ing the FCMC away from the return or too close to the fresh air discharge may result in reduction of fresh air
ventilation.
FCMC INSTALLATION WITH FAD
780110400 | RevA | 07/23
