Designed for use with the SWG Series Power Venter for controlling 750 millivolt controlled Natural

and L.P. Gas appliances with a 24AC voltage thermostat or wall switch, such as a gas fireplace.

NOTE: The use of flue gas spillage switches such as The Field Controls Model GSK-3, or equivalent,

is recommended. Manual operation controls to gas valve must be rendered inoperative.

THESE INSTRUCTIONS MUST REMAIN WITH EQUIPMENT

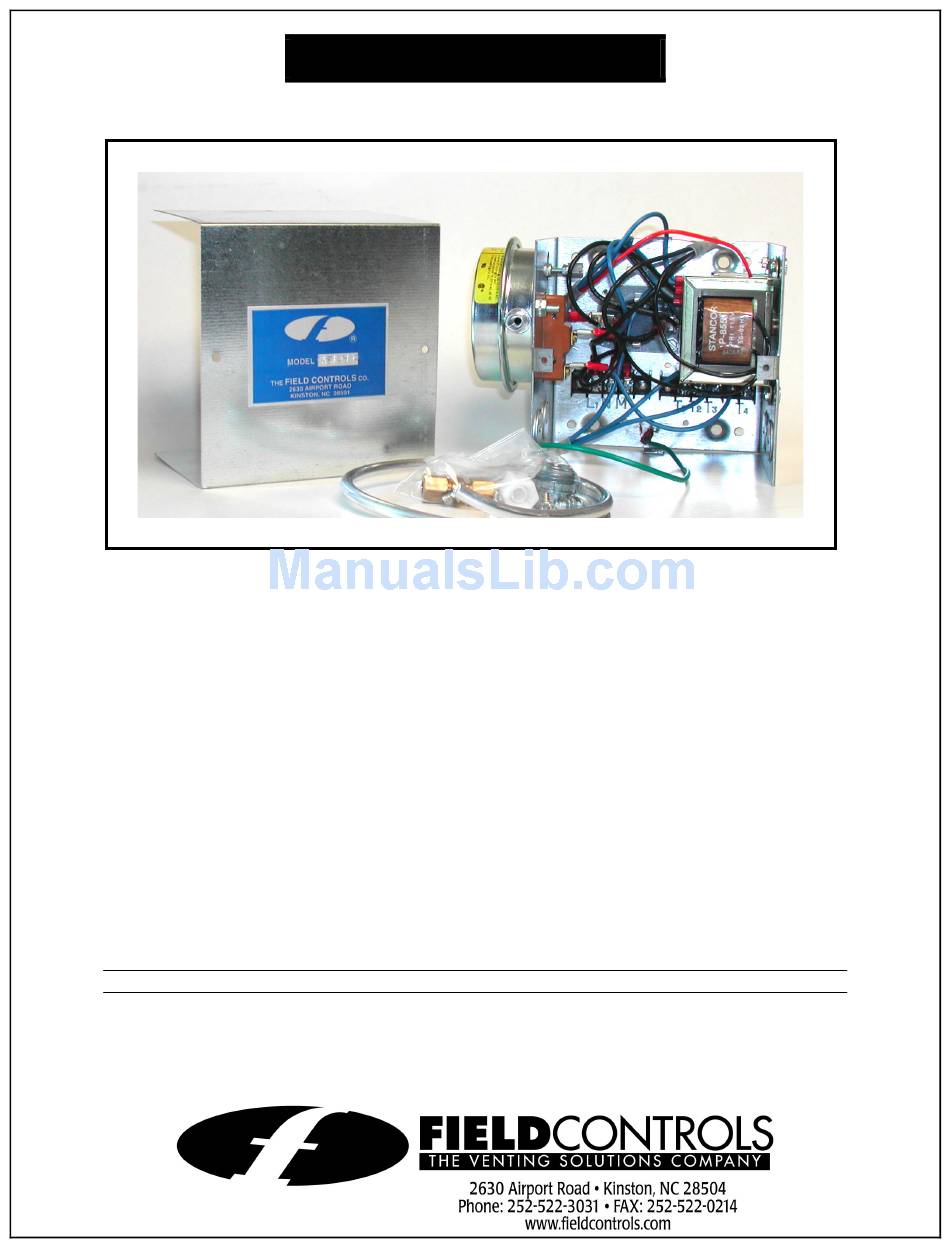

SYSTEM CONTROL KIT

Model: CK-81

TEMS INCLUDED IN

1) Junction box with mounted pressure switch

1) 1 ft. length of 1/8 inch aluminum tubing

1) 1/8" tubing connector

1) 1/8" tubing to 1/8" NPT elbow

1) Flexible conduit connector

1) Mounted 115 VAC/24 VAC transformer

1) Mounted post-purge timer (non-adjustable)

DO NOT DESTROY

Table of Contents

Need help?

Do you have a question about the 46161700 and is the answer not in the manual?

Page 1 L.P. Gas appliances with a 24AC voltage thermostat or wall switch, such as a gas fireplace. NOTE: The use of flue gas spillage switches such as The Field Controls Model GSK-3, or equivalent, is recommended. Manual operation controls to gas valve must be rendered inoperative.
Page 2 MOUNTING JUNCTION BOX The junction box can be mounted at the venter or remotely mounted away from the venter. (See Figures 1 & 2) 1. Remove one of the knockouts from the side of the junction box where the pressure switch is mounted.
Page 3 PRESSURE SWITCH SENSING TUBE INSTALLATION 1. Attach the 1/4 inch tubing connector to the pressure tube on the SWG Venter. (See Figure 3) 2. Connect the supplied 1/4" aluminum tubing to the tubing connector. Route the tubing to the CK-81 junction box and connect the tubing to the pressure switch.
Page 4 INSTALLATION INFORMATION CK-81 MODEL NO.:____________________________________________________________ INSTALLER'S NAME:_____________________________________________________ INSTALLER'S COMPANY: _________________________________________________ INSTALLER'S PHONE NO.: ________________________________________________ DATE OF INSTALLATION:_________________________________________________ Page 4 P/N 46161700 Rev B 06/04...
