120 VAC SYSTEM CONTROL KIT
Designed for use on SWG Series Power Vent Hoods for controlling oil fi red heating appliances
with 120 VAC controls.
The CK-63 control has the ability to operate the oil burner motor (up to
same time. This allows for shorter post purge time. This feature requires the burner to be equipped
with a delayed oil solenoid valve, which is not supplied with this kit.

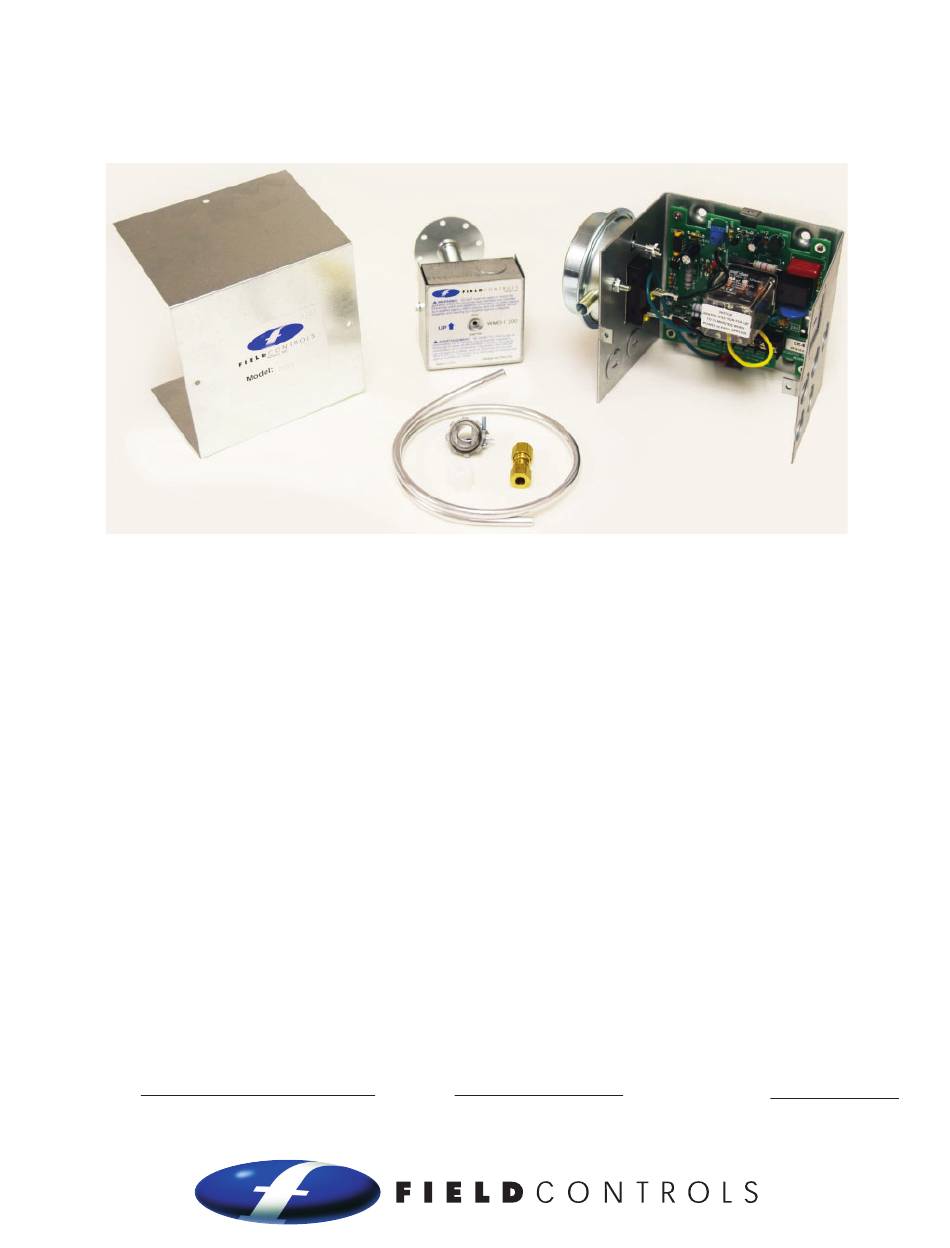

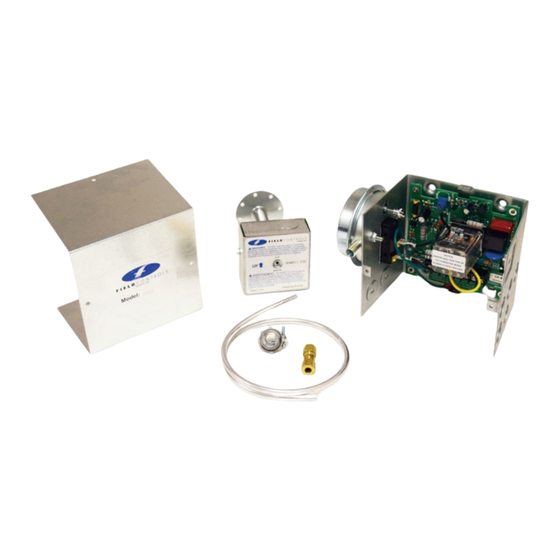

ITEMS INCLUDED IN KIT:
1- Junction box with mounted pressure switch solid state post purge control
1- 2' Length of
1
⁄
4
1-
⁄
" tubing connector
1
4
1- Flexible conduit connector
1- WMO-1 Blocked Vent Switch
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE PROCEEDING WITH THE INSTALLATION.
This device MUST be installed by a qualifi ed agency in accordance with the manufacturer's installation instructions. The defi nition of
a qualifi ed agency is: any individual, fi rm, corporation or company which either in person or through a representative is engaged
in, and is responsible for, the installation and operation of HVAC appliances, who is experienced in such work, familiar with all the
precautions required, and has complied with all the requirements of the authority having jurisdiction.
Installed By:
Model: CK-63
(Replaces CK-61 & CK-62 models)
" aluminum tubing
Please retain these instructions after installation.
Phone:
www.fi eldcontrols.com
⁄
HP) and the venter at the
1
3
Installation Date:
P/N 46400900 Rev P 08/19

Advertisement

loading
Need help?

Need help?

Do you have a question about the CK-63 and is the answer not in the manual?

Questions and answers

Related Manuals for Field Controls CK-63

Summary of Contents for Field Controls CK-63

  • Page 1 Designed for use on SWG Series Power Vent Hoods for controlling oil fi red heating appliances with 120 VAC controls. The CK-63 control has the ability to operate the oil burner motor (up to ⁄ HP) and the venter at the same time.

  • Page 2: Installation

    Install the fl exible conduit connector onto the CK-63 junction box and secure with fastening nut. If remote mounting the CK-63 junction box, mount the fl exible conduit connector onto a 2" x 4" installer supplied junction box.

  • Page 3: Wiring Instructions

    If Replacing CK-62: All external wiring is the same. Wires connected to the L1, N, M1, T1, T2, & T3 terminals of the CK-62 will connect to the same terminals of the CK-63. The PPC-4 is no longer needed with a CK-63 and can be removed from any circuits it was previously installed in.
  • Page 4 Diagram A - Oil Fired System: Single Unit Wiring P/N 46400900 Rev P 08/19 page 4 of 16...
  • Page 5 Diagram B - Oil Fired System: Wiring With Electronic Primary page 5 of 16 P/N 46400900 Rev P 08/19...
  • Page 6 Diagram C - Typical Wiring for Oil Fired Warm Air Furnace with a Honeywell ST9103 Control Board P/N 46400900 Rev P 08/19 page 6 of 16...
  • Page 7 Diagram D - Multiple Oil Fired Systems page 7 of 16 P/N 46400900 Rev P 08/19...
  • Page 8 Diagram E - 24V Gas Furnace Application P/N 46400900 Rev P 08/19 page 8 of 16...
  • Page 9 Diagram F - Riello Burner Application page 9 of 16 P/N 46400900 Rev P 08/19...
  • Page 10 ADJUSTMENTS PRESSURE SWITCH ADJUSTMENTS With the venter air fl ow set and the appliance operating at the best operating effi ciency, adjust the pressure switch by rotating the adjustment screw clockwise until the burner shuts off , then rotate the adjustment screw counterclockwise until the burner fi res.

  • Page 11: Troubleshooting Hints

    YEARLY MAINTENANCE PROCEDURE FOR POWER VENTER Motor: Inspect motor once a year; the motor should rotate freely. Lubricate motor with 6 drops of SWG Superlube in each oil port hole annually. Wheel: Inspect venter wheel annually, for oil fi red heating systems, clear any soot, ash or coating, which inhibits either rotation or air fl ow.
  • Page 12 P/N 46400900 Rev P 08/19 page 12 of 16...
  • Page 13 CK-63 Wiring Aquastat Relay Check-Out page 13 of 16 P/N 46400900 Rev P 08/19...
  • Page 14 CK-63 Wiring Check-Out Standard Set-up P/N 46400900 Rev P 08/19 page 14 of 16...
  • Page 15 page 15 of 16 P/N 46400900 Rev P 08/19...
  • Page 16 This manual may be downloaded and printed from the Field Controls website (www.fi eldcontrols.com) This manual may be downloaded and printed from the Field Controls website (www.fi eldcontrols.com) WARRANTY WARRANTY For warranty information about this or any Field Controls product, visit: For warranty information about this or any Field Controls product, visit: www.fi eldcontrols.com/ventCool...
