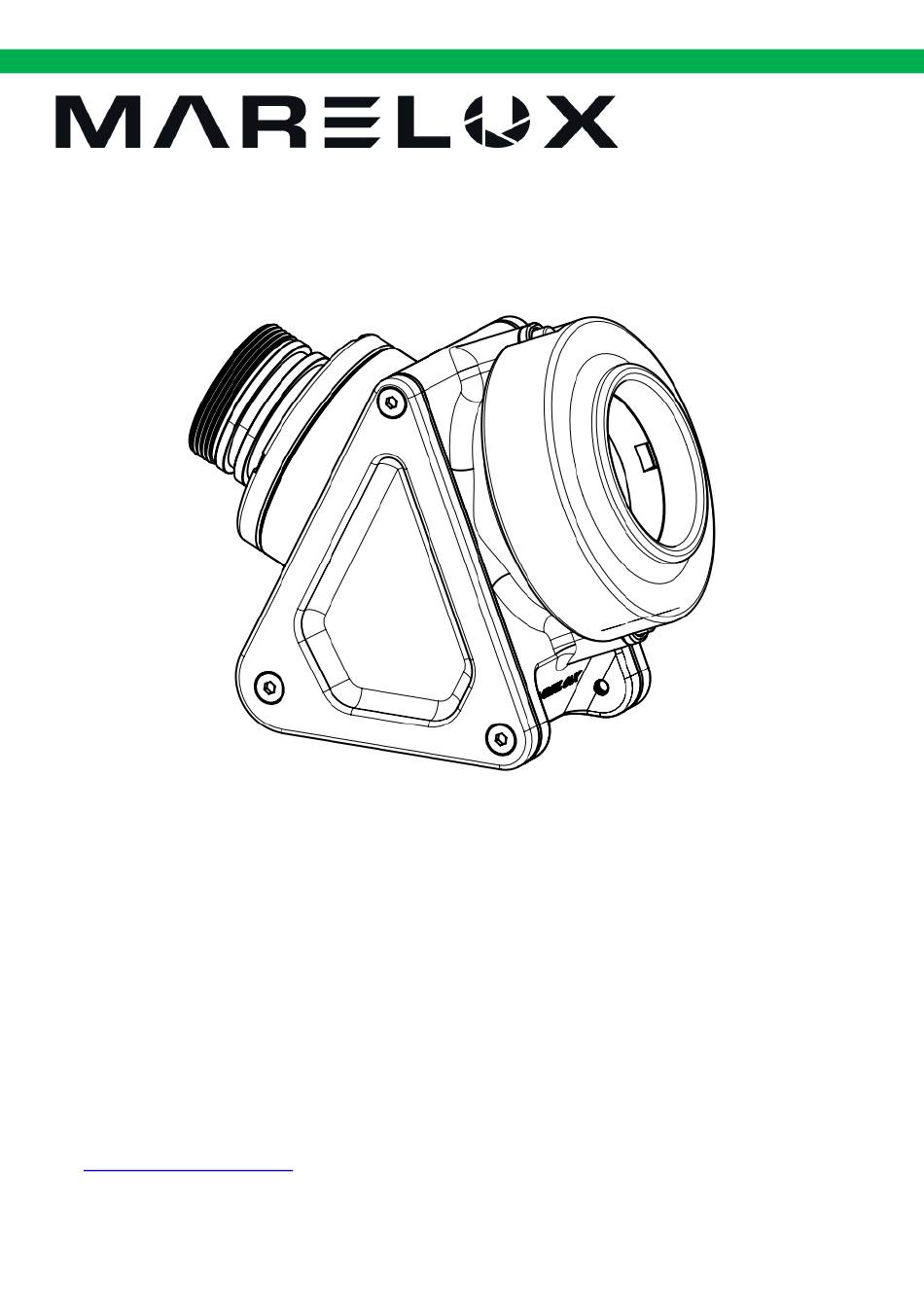

- Page 1 45 Degree Viewfinder User Manual Please read this user manual carefully before starting to use the product, and use the product properly based on the thorough understanding of this user manual. https://www.marelux.co/...
- Page 2 Package Contents Remover Tool 45 Degree Viewfinder Diopter Adjustment Tool...
- Page 3 Product Specification: Material: Optical Glass, Anodized Aluminum Alloy Weight: 368g Depth Rating：100m Magnification: 1X (Underwater)
- Page 4 Installation Align the Remover Tool (1) with the ring of the Optical Viewfinder 0.66x (2) on the housing, then insert it. （2） （1） Then rotate the Remover Tool counterclockwise to remove the ring (3) and the Optical Viewfinder 0.66x (4). （3）...
- Page 5 Installation Insert the 45 Degree Viewfinder into the housing. Then use the remover tool to tighten the ring clockwise.
- Page 6 Diopter Adjustment Remove the eyepiece hood first. （1） Align the diopter adjustment tool (2) with （3） the slot of the 45 degree viewfinder (3). （2） Rotate counterclockwise to increase diopter and clockwise to decrease diopter.
