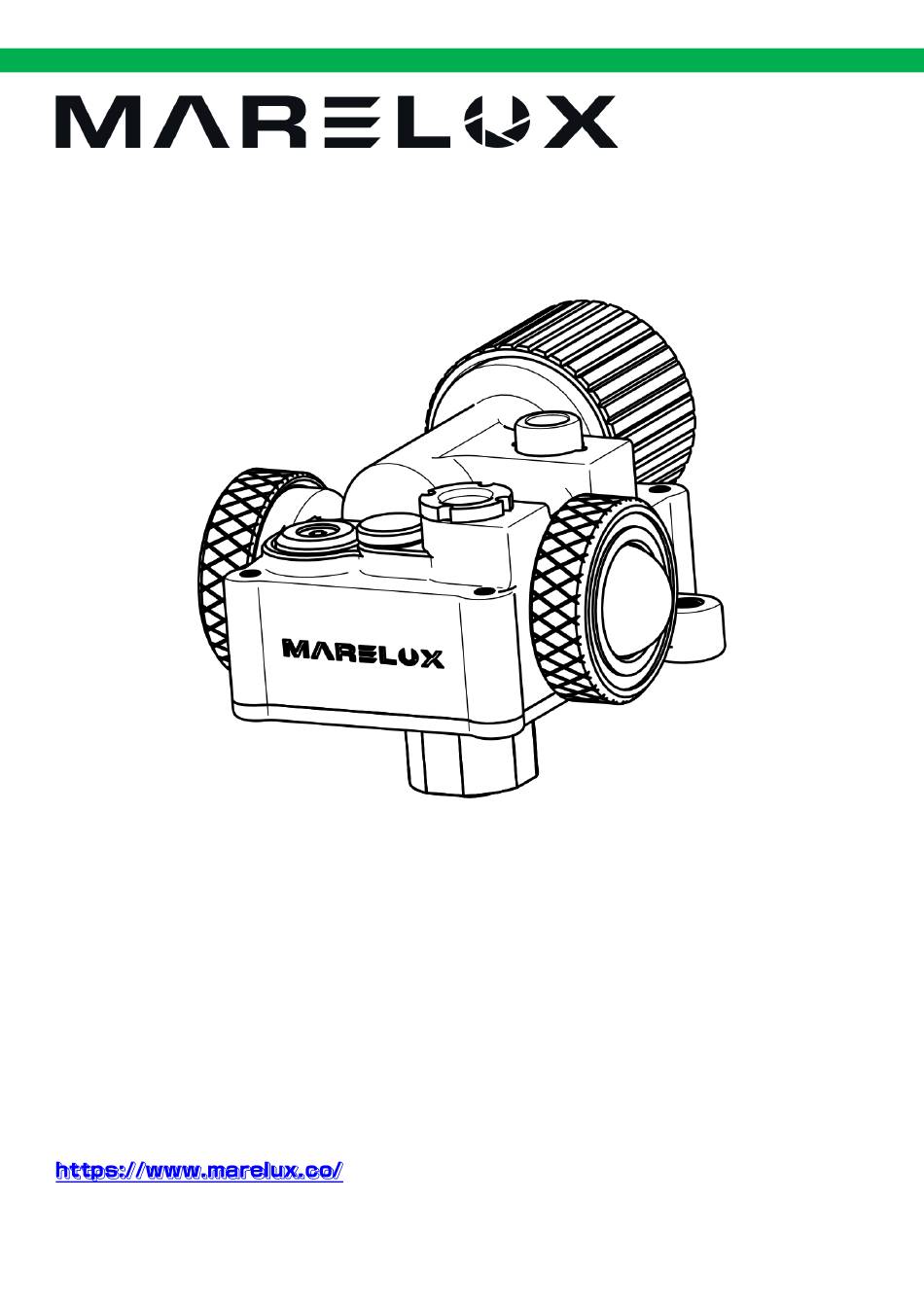

- Page 1 Lumilink User Manual Please read this user manual carefully before starting to use the product, and use the product properly based on the thorough understanding of this user manual.
-
Page 2: Product Features
Weight in Air: 180g Depth Rating: 100m Battery: 1x10440 lithium battery Installed on the camera housing's fiber optic port, Lumilink amplifies and encrypts the signal received from the camera housing's internal optical flash trigger, and then forwards it through optical signals. -
Page 3: Parts Illustration
Parts Illustration Fiber port Optical signal transmitter Indicator light Power button... -
Page 4: Battery Installation
Battery Installation Rotate counterclockwise to remove the battery cap. After inserting the battery as shown, rotate clockwise to tighten the battery cap. - Page 5 Install It Onto The Camera Housing Insert the Lumilink into the camera housing's fiber port. Rotate the bolt clockwise to tighten and secure it.
-
Page 6: Operation
Press and hold the power button for 2 seconds to turn on. The indicator light will stay on continuously. When the shutter button is pressed, it will trigger the Lumilink to emit a blue light signal, triggering the Apollo strobe. There is also a separate fiber optic port on the top,... -
Page 7: Maintenance And Storage
Maintenance And Storage 1. After diving, make sure the Lumilink is locked and sealed, wash the strobe body with fresh water. 2. When immersed with fresh water, push each button few times, thus can help to let salt and sand go out. -
Page 8: Warranty
Warranty 1. Marelux provides 2 years warranty for its housing body, cable (such as fiber cable and HDMI cable), and 1 year warranty for electronic parts and components made of silicon, rubber and plastic. 2. Marelux will keep components and parts for repair and maintenance in storage for 5 years after EOL of each model. - Page 9 ⚫ Products will lose warranty immediately after unauthorized repair or modification. ⚫ The warranty terms above are made for Marelux customers to conduct free warranty service and repair and have no restriction to any legal rights that customers shall possess.
