Summary of Contents for MARELUX MX-RX100M7

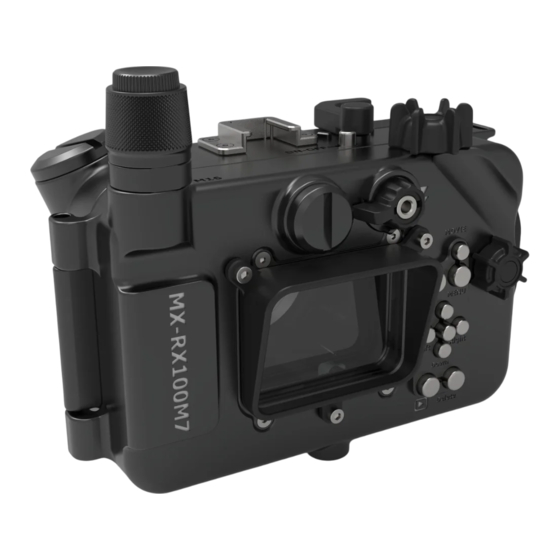

- Page 1 MX-RX100M7 FOR SONY RX100M7 COMPACT CAMERA User Manual Please read this users’ manual carefully before starting to use the product, and use the product properly based on the thorough understanding of this user manual. https://marelux.co/...
-
Page 2: Important Notices
13. Marelux is not responsible for losing or damaging of user's photo, video or other form of user data in the camera or memory card. Marelux is not responsible for damages of user's camera, lens or other accessories when Marelux products are not properly used according to this user manual. - Page 3 O-Ring. 2. For maintenance of the Marelux O-Ring, only use the original lubricant supplied by Marelux. Any unauthorized usage of lubricant or chemical material from other brands on the O-Ring may cause malfunction or damage of the O-Ring and even lead to leakage to the housing.
-
Page 4: Package Contents
Package Contents MACRO PORT 28 *1 EXTENSION RING 35 *1 PORT LOCK *2 O-RING*1... -

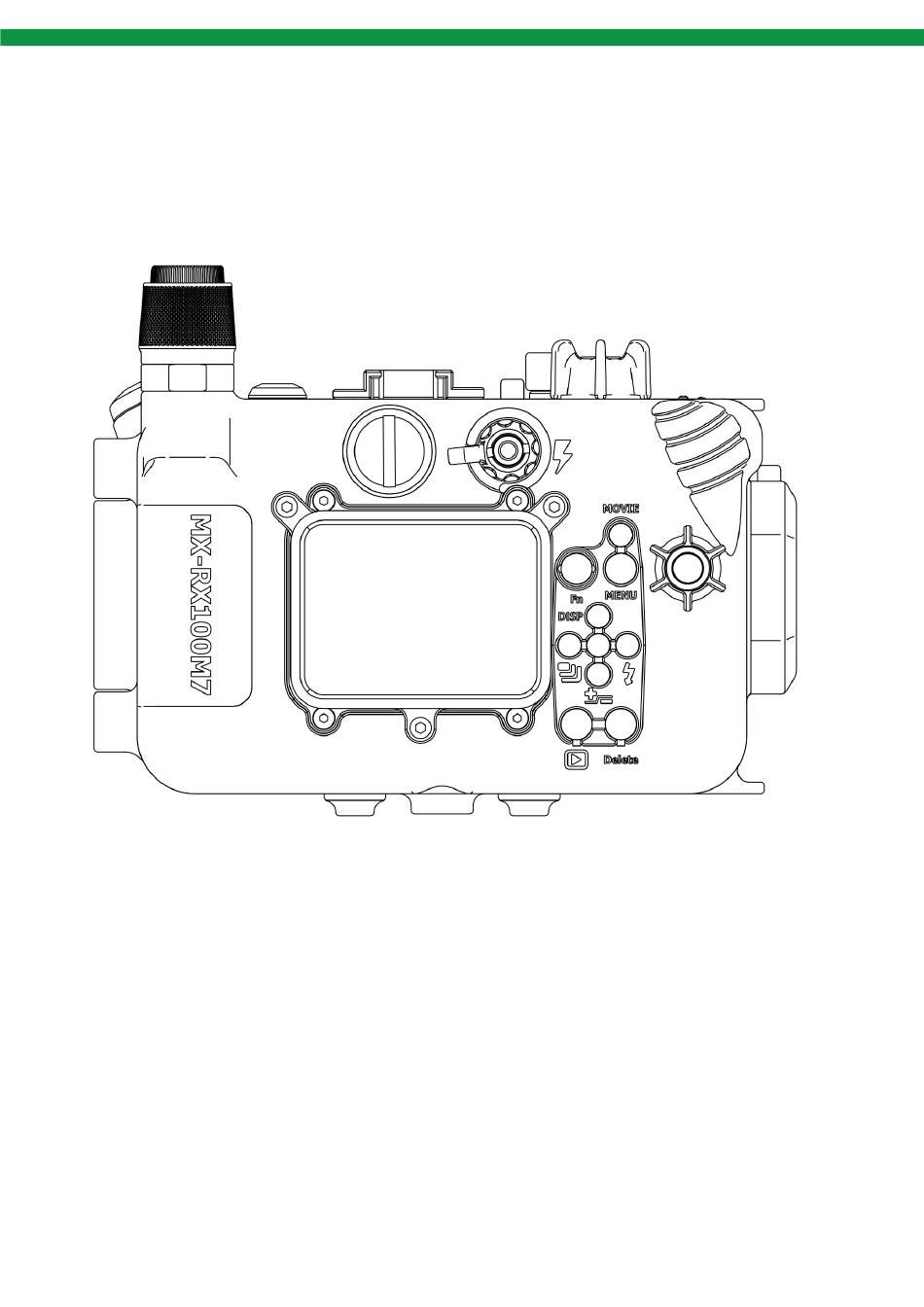

Page 5: Part Names And Functions
Part Names and Functions Accessory Coldshoe On/Off Button Moisture Alarm Window Accessory Port Mode Dial Zoom Lever Shutter Release Lever Housing Lock Safety Button Optical Fiber Mount Housing Lock Macro Port 28 Front Control Wheel... - Page 6 Part Names and Functions Flash Up/Off Lever Vacuum Valve Fn Button Movie Button MENU Button Rear Control Wheel Display / Up Selection Button Drive Mode/ Left Selection Button Flash mode/Right Selection Button SET Button Exposure Compensation/ Down Selection Button Playback Button Custom / Delete Button...
-
Page 7: Opening And Closing The Housing
OPENING AND CLOSING THE HOUSING To open the housing: 1. Press the housing lock safety button. 2. Turn the housing lock clockwise for 180° , until the lock reaches the “Open” position as shown. - Page 8 To close the housing: 3. Close the housing while the housing lock is in the “Open” position. 4. Turn the housing lock anti-clockwise for 180° until the lock reaches the “lock” position as shown.
-
Page 9: Installing The Port
INSTALLING THE PORT Align the white bar (1) on the port to the white dot (2) on the housing then attach the port to the housing. （2） （1） （2） Turn the port clockwise until the white dot(3) on the port aligns with （3）... -
Page 10: Internal Components
INTERNAL COMPONENTS （1） （2） （1）Reserved installation position for power bank （2）Leak detector alarm Press the red on/off button for one The indicator will blink twice in green then keep blinking in second to turn on the leak detector yellow alarm... -
Page 11: Maintenance And Storage
Maintenance And Storage 1. After diving, make sure housing is locked and sealed, wash the housing body with fresh water. When immersed with fresh water, push each button few times, thus can help to let salt and sand go out. 3. -
Page 12: Warranty
Warranty 1. Marelux provides 2 years warranty for its housing body, cable (such as fiber cable and HDMI cable), and 1 year warranty for electronic parts and components made of silicon, rubber and plastic. 2. Marelux will keep components and parts for repair and maintenance in storage for 5 years after EOL of each model. - Page 13 6. Marelux is not responsible for and will not compensate any collateral damages or financial losses caused by using Marelux products, such as income or fees related to the users of Marelux products. ⚫ Warranty is only provided to products sold inside the service territory of the distributor or reseller.
