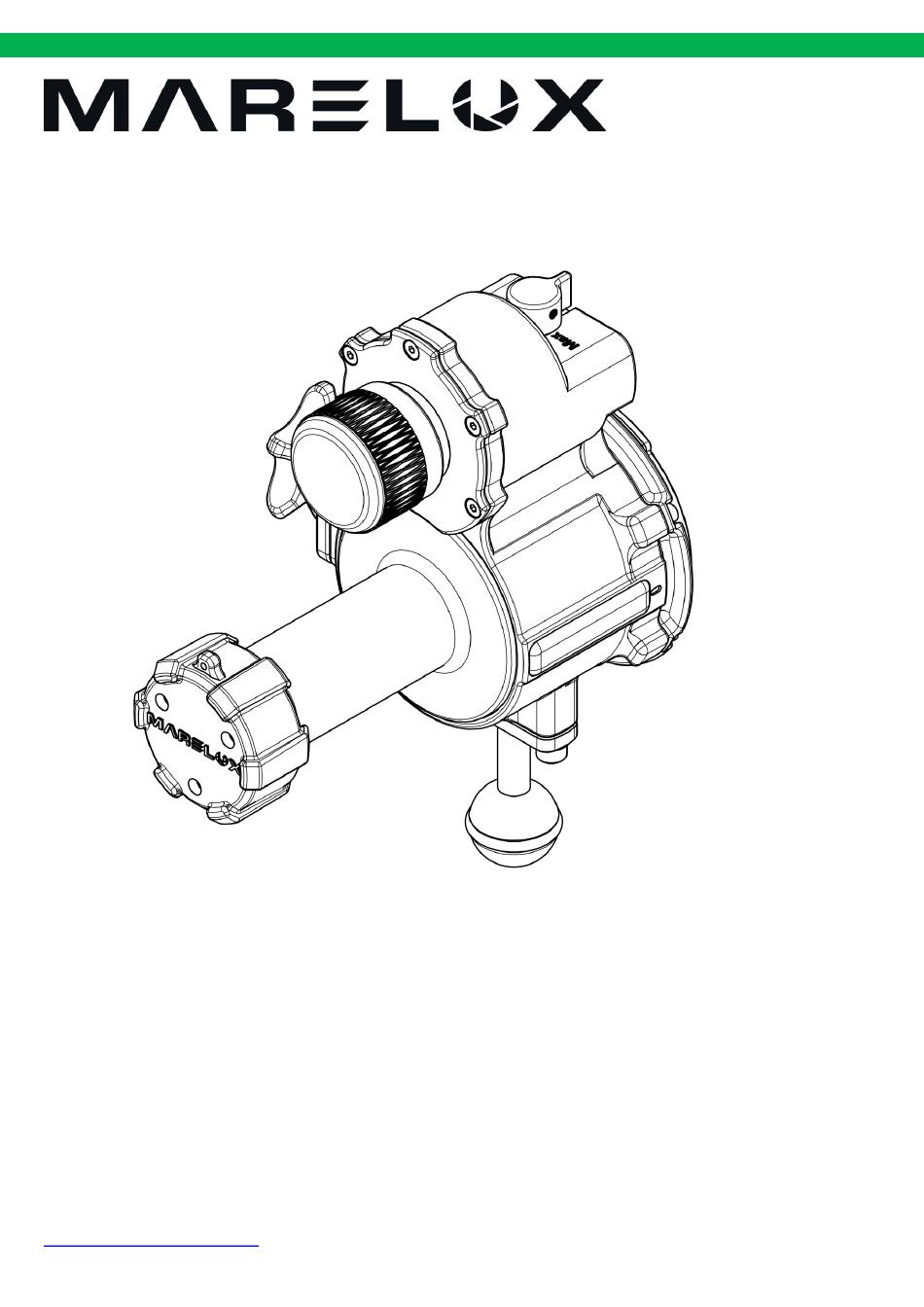

- Page 1 Smart Optical Flash Tube Professional (SOFT Pro) Main Body For Sea & Sea YS User Manual Please read this user manual carefully before starting to use the product, and use the product properly based on the thorough understanding of this user manual. https://www.marelux.co/...
-
Page 2: Package Contents
Package Contents Dock for Sea & Sea YS D3 SOFT Pro Main Body Lanyard Lock Allen Wrench Mounting Ball * 1 扳手*1... -
Page 3: Product Features
Product Features Use with strobe to narrow down the beam coverage Length: 155mm Weight: 790g (Battery Weight 25g), Underwater 210g (With buoyancy cover 125g) Depth Rating：-100m Focal Length (Underwater)：130mm Beam Spot Adjustment Range: 3~50mm Beam light switchable between white and red colors with adjustable luminance and adjustable delay shutoff time of beam light Use one 18350 Lithium battery which can support 3 hours of continuous use... -
Page 4: Part Names And Functions
Part Names and Functions （1） （2） (1) Power Switch (2) Beam Spot Adjustment Knob... -
Page 5: Battery Installation
Battery Installation This product requires one 18350 Lithium battery Remove the battery end cap by rotating it counter clockwise then insert the battery in the direction shown in the figure. Attach the battery end cap by rotating it clockwise. - Page 6 Dock Installation （2） （1） Attach the dock to the strobe so that the notch (1) of the dock aligns to the fiber-optic cable socket (2) of the strobe. Tighten the screw to secure the dock onto the strobe.
-
Page 7: Installation
Installation Align the white bar (1) on the SOFT Pro to the white dot (2) on the dock then attach the SOFT Pro to the dock in the direction shown in the figure （1） （2） Rotate the SOFT Pro clockwise until the white dot of the SOFT Pro aligns to the white dot of the dock. - Page 8 Uninstallation Press the lock button (1) and rotate the SOFT Pro counterclockwise （1） Until the white bar (2) aligns to the white dot（3） Separate the SOFT Pro main body from the dock in the direction shown in the figure （2） （3）...
- Page 9 Usage • Align the handle of the power button (1) to the groove (2) • Long press the power button (1) for 2 （1） seconds to turn on the beam light • Press the power button to switch between white light and red light •...
-
Page 10: Maintenance
Maintenance And Storage After each underwater use, always remove this product from the strobe and soak it in fresh water for ⚫ several hours to dissolve any salt buildup. Wipe off water with soft cloth and let it dry in shaded and well-ventilated area. -
Page 11: Warranty
Warranty Marelux provides 2 years warranty for its SOFT Pro body and 1 year warranty for electronic parts and components made of silicon, rubber and plastic. Repairs caused by following reasons will be charged by Marelux even during the 2 years warranty period.
