Summary of Contents for TECPEL DCM-039

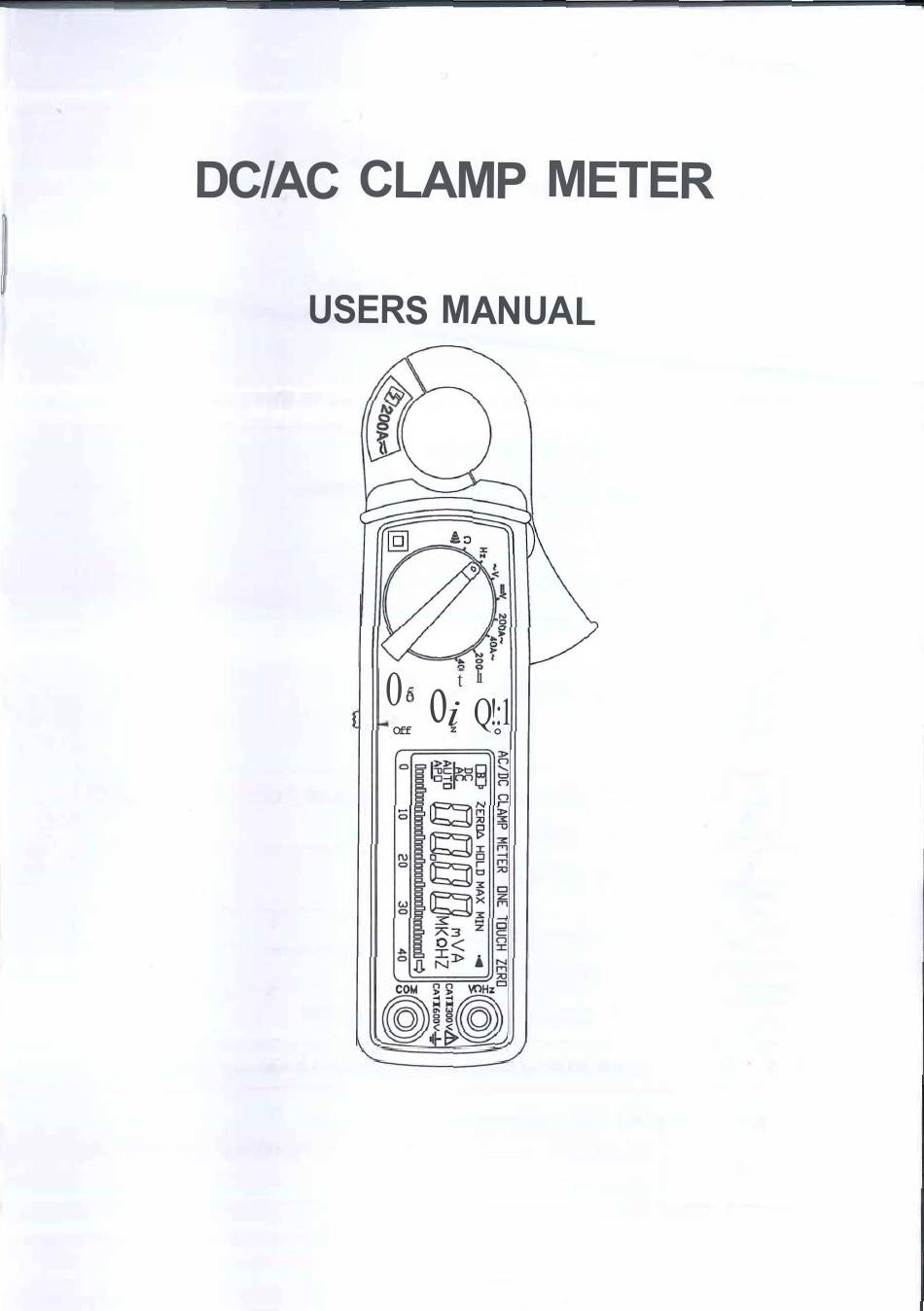

- Page 1 E-mail: sales@tecpel.com Tel: 886-2-2218-3111 # 11...
- Page 2 ALWAYS use the clamp meter as the instructions in the manual. WARNING: If the clamp meter i s used i n a manner not specified by the manufacturer, the protection provided by the clamp meter may be impaired. https://tecpel.com E-mail: sales@tecpel.com Tel: 886-2-2218-3111 # 11...
-
Page 3: Table Of Contents
Press once, minimum value shall be displayed and updated. Press again, maximum value shall be displayed and updated. Zero function will be disabled if MAX/MIN is enabled. This button is not available i n continuity or Hz function. https://tecpel.com E-mail: sales@tecpel.com Tel: 886-2-2218-3111 # 11... - Page 4 This terminal is used as input for voltage, ohm/continuity, or frequency measurements. 17. COM Terminal This terminal is used as common reference input. 18. Hand Strap Put your hand through the hole of hand strap to avoid accidental drop of the clamp https://tecpel.com E-mail: sales@tecpel.com Tel: 886-2-2218-3111 # 11...
-
Page 5: Peration Instructions
Set the rotary switch at 40A AC or 200A AC b. Press the trigger to open the jaw and fully enclose the conductor to be measured. No air gap is allowed between the two half jaws. https://tecpel.com E-mail: sales@tecpel.com Tel: 886-2-2218-3111 # 11... -
Page 6: Resistance And Continuity Measurement
Press the HOLD button, then the reading shall be hold and kept on LCD. NOTE: The HOLD button is disabled if ohm and continuity function is selected. 3.7. Finding the MAX/MIN Value Press the MAX/MIN button to enable the maximum and minimum values to be https://tecpel.com E-mail: sales@tecpel.com Tel: 886-2-2218-3111 # 11... -
Page 7: Specifications
Resistance (n) and Continuity:(open voltage 0.4V) Range Resolution Accuracy Beeping Overload Protection ±1.0%±2dgts AC600V 40400Q 0.1n <40.0 n (approx.) Frequency (auto range): Resolution 1 Range Accuracy Sensitivity Overload (Hz) (Hz) Protection 1-100K 0.001 - 100 ±0.5%±2dgts AC600V https://tecpel.com E-mail: sales@tecpel.com Tel: 886-2-2218-3111 # 11... -
Page 8: Battery Replacement
Servicing not covered i n this manual should only be performed by qualified personnel. Repairs should only be performed by qualified personnel. Periodically wipe the case with a damp doth and detergent; do not use abrasives or solvents. Address of Agent, Distributor, Importer, or Manufacturer https://tecpel.com E-mail: sales@tecpel.com Tel: 886-2-2218-3111 # 11...
