RC -QN1/QN2/QN3

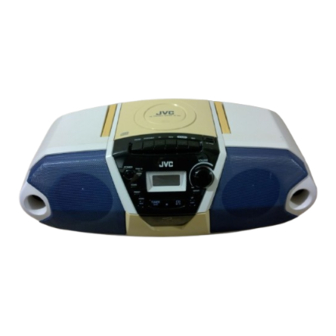

Thank you for purchasing the JVC CD Portable System.
We hope it will be a valued addition to your home as well as to your outdoor life, giving you years of enjoyment.
Be sure to read this instruction manual carefully before operating your new stereo system.
In it you will find all the information you need to set up and use the system.
If you have a query that is not answered by the manual, please contact your dealer.
Here are some of the things that make your System both powerful and simple to use.
HB The controls and operations have been redesigned to make them very easy to use, freeing you to just enjoy the music.
*«
With JVC's COMPU PLAY you can turn on the System and automatically start the Radio, CD Player, or Cas-
sette Deck with a single touch. (When power is supplied from AC)
ME Sound effects; BEAT, POP, and CLEAR.
ME A 30-station preset capability (15 FM and 15 AM) in addition to auto-seek and manual tuning.
MA
user-friendly timer lets you fall asleep to music.
¢
Basic information that is the same for many different functions - e.g. setting the volume - is given in the section 'Common Operations',
and not repeated under each function.
e
The names of buttons/controls are written in all capital letters: e.g. TUNER BAND.
e
System functions are written
with an initial capital letter only: e.g. Normal Play.
Use the table of contents to look up specific information you require.
We' ve enjoyed making this manual for you, and hope it serves you in enjoying the many features
built into your System.
¢
Do not raise or lower the carrying handle of the Unit with the telescopic antenna extended in order to avoid damaging the antenna.
Where to place the Unit
¢
Select a place which is level, dry and neither too hot nor too cold (between 5°C/41°F and 35°C/95°F).
e
Leave sufficient distance between the Unit and a TV.
*
Do not use the Unit in a place subject to vibrations.
| Power cord
¢
Do not handle the power cord with wet hands!
*
Some power (2.6 W) is always consumed as long as the power cord is connected to the wall outlet.
e
When unplugging the Unit from the wall outlet, always pull the plug, not the power cord.
: Jeet w:tions, etc.
*
There are no user serviceable parts inside. In case of system failure, unplug the power cord and consult your dealer.
¢
Do not insert any metallic object into the System.
FCAUUT OS iets tse ed acs
ees
eee ioc eid
asarieeisantete H
Care And Maintenance
...... s u c h e n vedetsieregtsse eedatebade «eee 10
How This Manual Is Organized ................. pears Tee menalk
IMPORTANT CAUTIONS ooocciecccccccccs
sce cseccccscssecnsreceeens ]
Troubleshooting ...........ccceccere eeltectsecese neacesrouacevanees 11
Getting Started ........ccccsseee nick desunaduceiaeAluieata teidscadl 2
Specifications ........ccecesecsersesescnenes ichdatbuteudisenseveaesecese 11
COMMON OPeratiONS .......cccccanvencesnerorncnenssansecsersnsenses 4
Using the Tuner .......... cutuadesutusiecesceausseees aduabhaaskaszaseees 5
Using the CD Player ...........c::scsesssecteccsssssnecereernnessenes 6
Using the Cassette Deck (Listening to a Tape)
....7
Using the Cassette Deck (Recording)
................ 8
Using the Sleep Timer ...........ccccsenscsesensesereees atecaes 9
Using the Microphones
...........:.ccccscccccccssscseneeersensees 9
