Analogue Relay - SMARTFOX PRO LIGHT 2 Operating Instructions Manual

P: P is the power value of the consumer connected to the relay, adjustable from 1 to
9999 watts.
td: td is the delay time for how long the set power must exceed P to activate the
relay. Adjustable between 0 and 99 minutes.
th: th is the minimum time the relay remains activated after the switch-on
condition is fulfilled, adjustable between 1 and 999 minutes. If, for example, a th
of 5min is set and the surplus collapses after 3 minutes (switch-on condition no
longer fulfilled), the relay remains active for another two minutes.
Relay 1= Analogue relay
r 1 : A N A L O G R E L A I S
z w : a i n p n : a i n

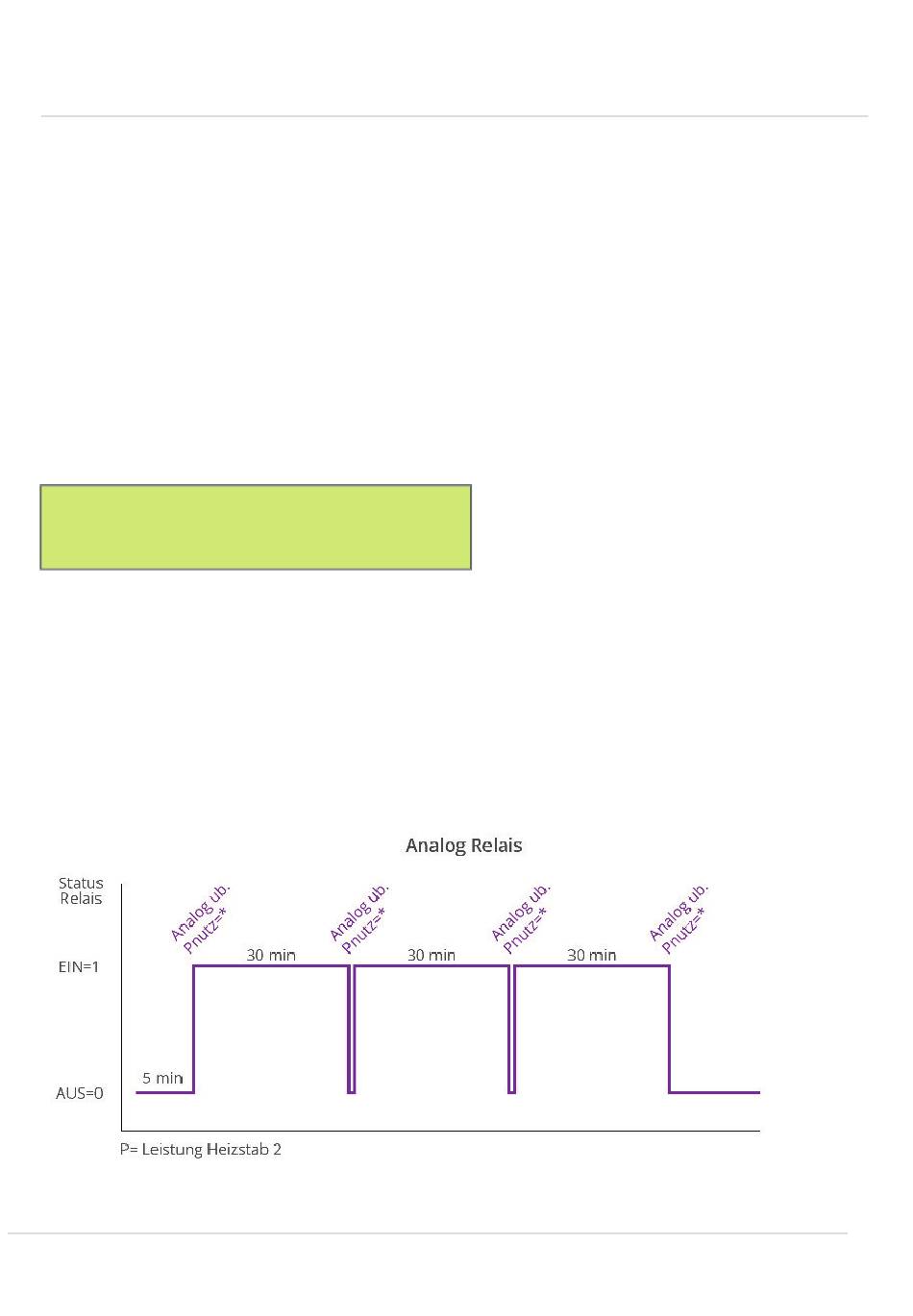

Analogue relay: If the control behaviour Analogue relay is selected, the relay
switches as soon as the analogue monitoring is activated. This means whenever
the heating element at the analogue output no longer consumes power (e.g.
thermostat switched off). In this way, several heating elements can be operated
steplessly one after the other by switching the contactor at the output of the
power controller (e.g. boiler-buffer switchover). Only the setting P is required for the
relay; the nominal power of the second heating rod must be stored here.
