SMARTFOX PRO LIGHT 2 Operating Instructions Manual page 10

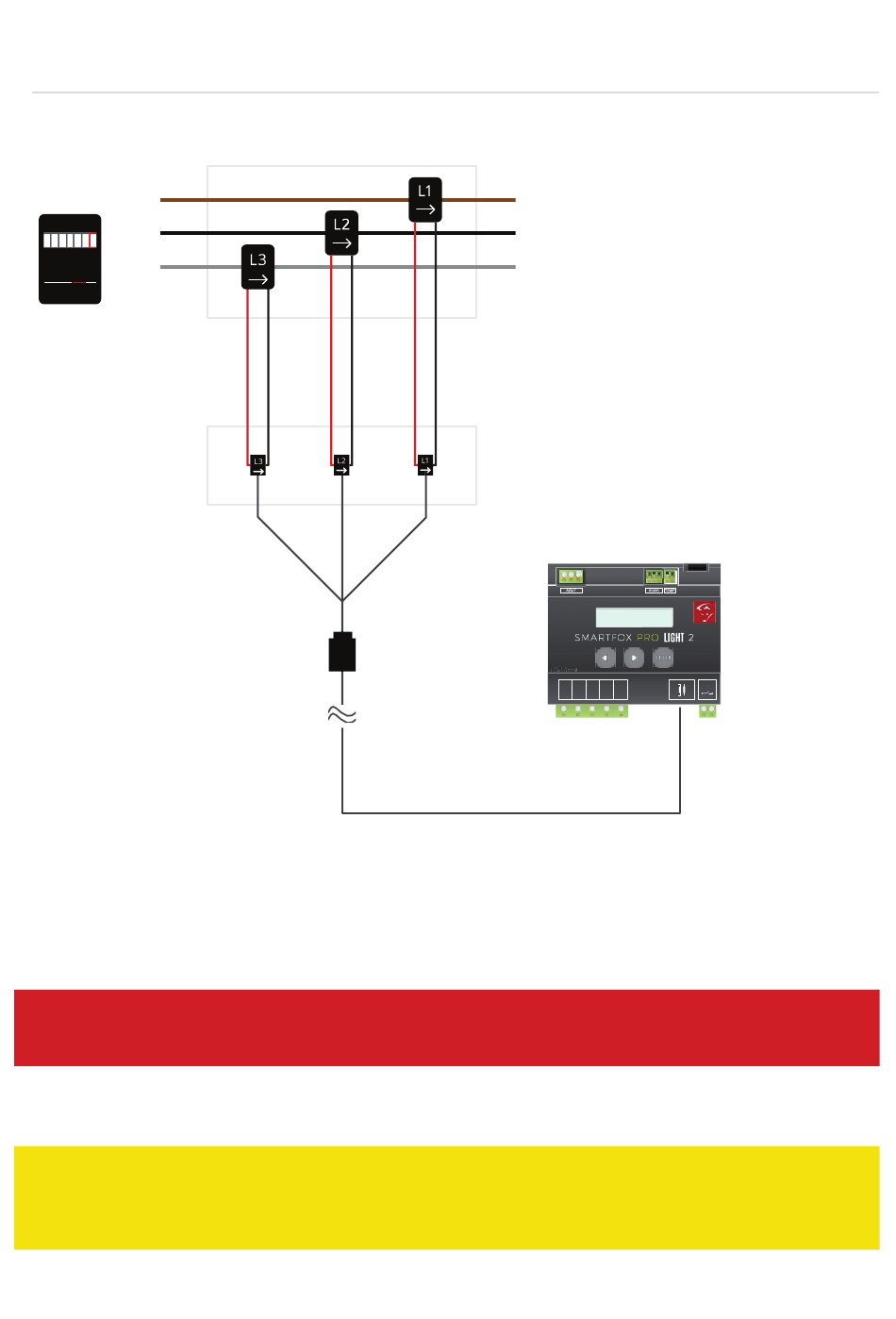

SMARTFOX ADDITIONAL CURRENT
TRANSFORMER
L1
0003127
L2
kWh
L3
CURRENT WALLER
SMARTFOX
Current transformer extension
optional up to 15 m.
ART NO. 0791732486520
WARNING!
The SMARTFOX current transformer cable must not be cut (loss of warranty).
NOTE!
The SMARTFOX current transformer set can be extended up to 15m. A suitable
current transformer extension must be used for this purpose.
ADDITIONAL CURRENT
TRANSFORMER
K
K
L
K
L
L
K L K
w w w . s m a r t f o x . at
L
K L
24V IO 0V
L1 L2 L3 N PE
L1 L2 L3 N PE
1. SW divisible 200A with 1m connection cable
ART NO. 0791732486490
2. SW divisible 500A / 5A 1m connection cable
ART NO. 0791732486650
0V UO IO 24V 0V + - S0+ S0- PT1000 24V 0V RX TX
0V + - PT1000
K K
R1 R2 R3 R4
L L
K K
R1
L L
