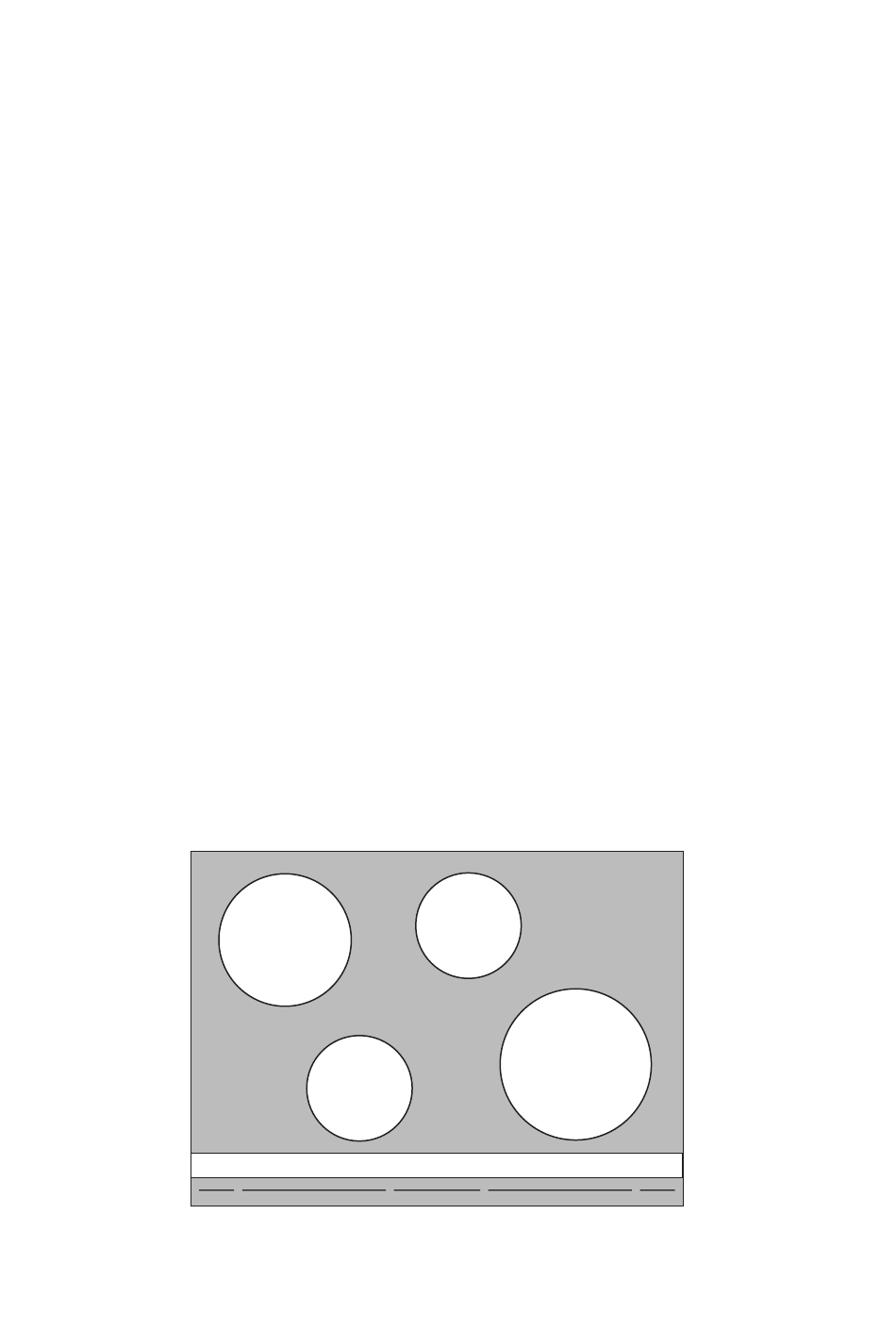

- Page 1 FM 7803 K-AN Ceramic glass induction hob Installation and Operating Instructions...
- Page 2 Dear Customer, Please read these user instructions carefully and keep them to refer to later. Please pass the user instructions on to any future owner of the appli- ance. The following symbols are used in the text: Safety instructions Warning! Notes that concern your personal safety. Important! Notes that show how to avoid damage to the appliance.
-
Page 3: Table Of Contents
Contents Operating Instructions ........Safety instructions. -
Page 4: Operating Instructions
Operating Instructions 1 Safety instructions Please comply with these instructions. If you do not, any damage re- sulting is not covered by the warranty. This appliance conforms with the following EU Directives: – 73/23/EEC dated 19.02.1973 Low Voltage Directive – 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive 92/31/EEC –... - Page 5 Safety during use • Remove stickers and film from the glass ceramic. • There is the risk of burns from the appliance if used carelessly. • Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware. •...
-
Page 6: Description Of The Appliance
Description of the Appliance Cooking surface layout 1850 W induction cooking zone Induction cooking zone 1400W with 2500 W Power function with power function 1800W Frontline strip Control panel Induction cooking zone 1400W Induction cooking zone 2300W with power function 1800W with power function 3200W... -
Page 7: Control Panel Layout
Control panel layout Left-hand side Warm up pilot STOP+GO pilot Timer indicator Heat setting light light indicator Heat setting Warm up pilot indicator light Heat setting Timer Automatic warm up selection function/Power function Timer STOP+GO Heat setting Automatic warm up selection function/Power function selection... -
Page 8: Touch Control Sensor Fields
Touch Control sensor fields The appliance is operated using Touch Control sensor fields. Functions are controlled by touching sensor fields and confirmed by displays and acoustic signals. Touch the sensor fields from above, without covering other sensor fields. Sensor field Function On / Off Switches appliance on and off... -
Page 9: Residual Heat Indicator
Residual heat indicator Warning! Risk of burns from residual heat. After being switched off, the cooking zones need some time to cool down. Look at the residual heat indicator Residual heat can be used for melting and keeping food warm. Operating the appliance Use the induction cooking zones with suitable cookware. -
Page 10: Switching The Stop+Go Function On And Off
Switching the STOP+GO function on and off The STOP+GO function simultaneously switches all cooking zones that are switched on to the keep warm setting and then back to the heat setting that was previously set. This function can be used to briefly in- terrupt and then continue the cooking process e.g. -
Page 11: Using The Automatic Warm-Up Function
Using the automatic warm-up function All cooking zones are equipped with an automatic warm-up function. The automatic warm-up function sets the cooking zone to the highest setting for a certain period of time and then automatically switches back to the cooking setting that was originally set. Automatic warm up Sensor field Power indicator... -
Page 12: Switching The Power Function On And Off
Switching the power function on and off The power function makes more power available to the induction cooking zones, e.g. to bring a large quantity of water to the boil quick- The power function is activated for 10 minutes. After that the induc- tion cooking zone automatically switches back to heat setting 9. -
Page 13: Using The Child Safety Device
Using the child safety device The child safety device prevents unintentional use of the appliance. The child safety device can only be switched on and off, if the appli- ance is switched on, but no cooking zone has a heat setting set. Activating the child safety device Step Control panel... -
Page 14: Using The Timer
Using the timer All cooking zones can use each use one of the two timer functions at the same time. Function Pre-condition Outcome after time has elapsed Safety cut-out When a heat setting is Acoustic signal lights up Cooking zone switches off Countdown timer When cooking zones are... - Page 15 Setting the time Step Control panel Indicator Select a cooking Pilot light for the selected cooking zone zone flashes Touch minutes After a few seconds the pilot light flashes more slowly. The time is set. The time counts down. If other timer functions are set, after a few seconds the shortest re- maining time of the right or left timer is displayed.
- Page 16 Displaying the time remaining for a cooking zone Step Control panel field Display Select cooking Pilot light of the cooking zone select- zone ed flashes faster The time remaining is displayed After a few seconds the pilot light flashes more slowly. Switching off the acoustic signal Step Control panel field...
-
Page 17: Safety Cut-Out
Safety cut-out Cooking surface • If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. 10 seconds, the cooking surface auto- matically switches itself off. • If one or more sensor fields are covered for longer than approx. 10 seconds, e.g. -
Page 18: Tips On Cooking And Frying
Tips on cooking and frying Information about acrylamides According to the latest scientific research, intensive browning of food, especially in products containing starch, may present a health risk due to acrylamide. Therefore we recommend cooking at low temperatures and not browning foods too much. Cookware for induction cooking zones Cookware made of suitable... -
Page 19: Examples Of Cooking Applications
Examples of cooking applications The information given in the following table is for guidance only. Heat Cooking set- suitable for Cook time Tips/Hints process ting Off position Keeping Keeping cooked foods food as required Cover warm warm Hollandaise sauce, Melting melting butter, chocolate, 5-25 mins. -
Page 20: Cleaning And Care
*Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialist shops, supermarkets, the parts department of your local Service Force Centre or from www.shop.electrolux.co.uk Remove stubborn residues with a cleaner for glass ceramic or stainless steel. -
Page 21: What To Do If
Removable Frontline strip The aluminium Frontline strip fastens on by means of magnets. It is easy to remove by hand and can be cleaned with detergent. Please do not use any scouring agents or sponges that scratch. Do not clean the strip in the dishwasher. - Page 22 Problem Possible cause Remedy is lit Unsuitable cookware Use suitable cookware No cookware on the cook- Put cookware on zone ing zone Diameter of the base of the Move to smaller cooking cookware is too small for zone the cooking zone Use suitable cookware and number are dis- Electronics fault...
-
Page 23: Disposal
Disposal Packaging material The packaging materials are environmentally friendly and can be recy- cled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at your local waste disposal facilities. Old appliance The symbol on the product or on its packaging indicates that this... -
Page 24: Installation Instructions
Installation Instructions Safety instructions The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accord- ance with the regulations, etc.) Installation may only be carried out by a qualified electrician. The minimum distances to other appliances are to be observed. - Page 25 A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors.
-
Page 26: Assembly
Assembly... -
Page 29: Installing More Than One Frontline Hob
Installing more than one Frontline hob Additional parts: connecting cross bar(s), heat-resistant silicon, rubber block, razor blade Only use special heat-resistant silicon. Cut-out section Distance from the wall: at least 50 mm Depth: 490 mm Width: The widths of all appliances to be built-in are added together, minus 20 mm (see also ”Overview of all appliance widths“) Example: Installation of more than one appliance... - Page 30 5. Place the first appliance in the cut-out. Lay connecting cross bar in the cut-out and push up against the appliance. 6. Put silicon on the appliance corners that will touch one another. Put silicon on the end of the cross bar. 7.
- Page 31 8. Loosely screw in fixing plates from below on the worktop and on the connecting cross bar. 9. Place Frontline strips on the appliances. Check that the Frontline strips are in line with one another. 10. Tighten the fixing plate screws. 11.
- Page 32 14. Leave silicon until the next day to harden. 15. Carefully remove projecting silicon with a razor blade. 16. Clean glass ceramic thoroughly. 17. Replace Frontline strips. Overview of all appliance widths 180 mm Worktop-mounted cooker hood 360 mm Glass ceramic cooking surface with 2 radiation cooking zones Glass ceramic cooking surface with 2 induction cooking zones Gas hob with 2 burners Grill...
-
Page 33: Rating Plate
Rating Plate ELECTROLUX 941 177 450 7.4 kW 230 V 50 Hz FM7803K-AN 55GDD86AG... -
Page 34: Warranty Conditions
Warranty conditions Great Britain Standard guarantee conditions We, AEG, undertake that if within 12 months of the date of the purchase this AEG appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our discretion repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: •... -
Page 35: Service And Spare Parts
AEG Domestic Appliances of Ireland please contact us at the ad- 55-77 High Street dress below: Slough AEG/ Electrolux Group (Ire) Ltd Berkshire, SL1 1DZ Long Mile Road/ Dublin 12 Tel: 08705 350350 (*) Republic of Ireland Tel: +353 (0) 1 4090754 Email: service.eid@electrolux.ie... - Page 36 From the Electrolux Group. The world´s No.1 choice. The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
