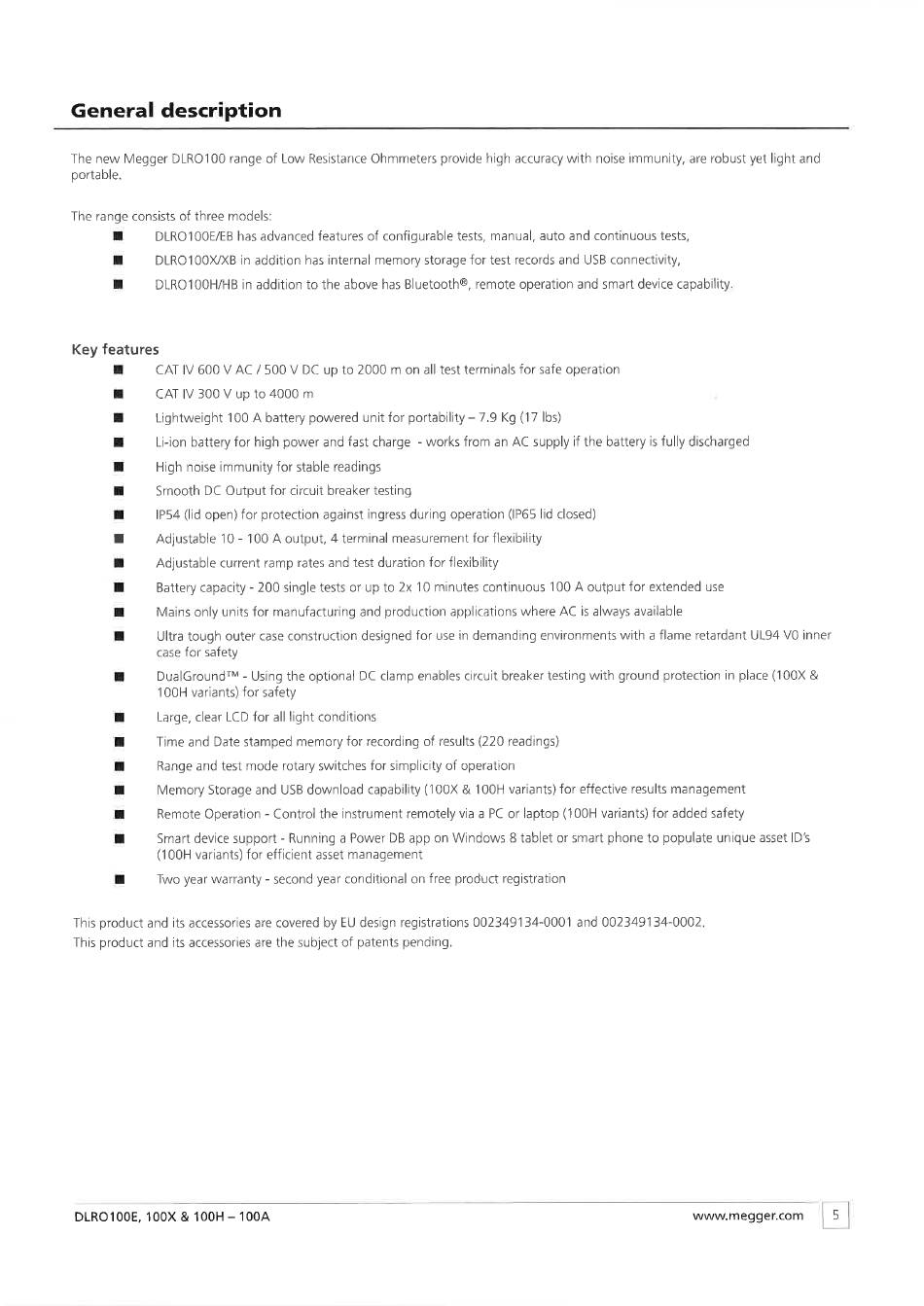

General description
The new Megger
DLRO100
range of Low
Resistance
Ohmmeters provide high
accuracy
with
noise
immunity,
are
robust yet light
and
portable.
The range
consists
of
three models:
I
DLROl00E/EB has advanced
features of configurable tests, manual, auto and continuous tests,
I
DLRO100}7X8
in addition has internal memory storage
for
test records and
USB
connectivity,
I
DLRO100H/HB
in addition to the above
has Bluetooth@,
remote operation and smart device capability
Key
features
I
CAT lV
600 V
AC
/
500
V
DC
up to 2000
m
on
all
test terminals
for
safe
operation
I
CAT
lV 300 V up
to 4000
m
I
Lightweight 100 A
battery powered unit for portability - 7.9
Kg
(17
lbs)
I
Li-ion battery
for high power and fast charge -
works
from
an
AC supply if
the
battery
is
fully
discharged
I
High noise immunity
for
stable readings
I
Smooth DC
Output for
circuit breaker testing
I
lP54
(lid open)
for protection against
ingress
during operation (1P65 lid
closed)
f
Adjustable
10
-
100 A output, 4 terminal measurement
for
flexibility
I
Adjustable current ramp rates and test duration
for
f
lexibility
I
Battery capacity
-
200
single
tests or up to 2x
1
0 minutes continuous
1
00 A
output for
extended
use
I
Mains only units
for
manufacturing and production applications where AC
is
always available
I
Ultra
tough
outer case construction designed
for
use in demanding environments
with
a
flame retardant
UL94
V0 inner
case
for
safety
I
DualGroundrM
-
Using the
optional
DC clamp enables
circuit breakeriesting
with ground protection in place
(100X
&
1
00H
variants)
for
safety
I
Large, clear LCD
for
all
light conditions
I
Trme
and
Date
stamped memory
for
recording
of
results
(220
readings)
t
Range and test mode rotary switches
for
simplicity
of
operation
I
Memory
Storage
and
USB
download capability (100X
&
100H variants)
for
effective results management
I
Remote Operation
-
Control the instrument remotely via a
PC
or laptop (100H
variants)
for
added safety
I
Smart device support
-
Running
a
Power
DB
app on Windows
8
tablet
or smart phone to populate unique
asset
lD's
(l00H
variants)
for
efficient
asset
management
I
Two year warranty - second year
conditional on free product registration
This
product and
its accessories are covered
by
EU
design registrations 002349134-0001 and 002349134-0002
This
product and
its accessories are
the subject
of patents pending.
