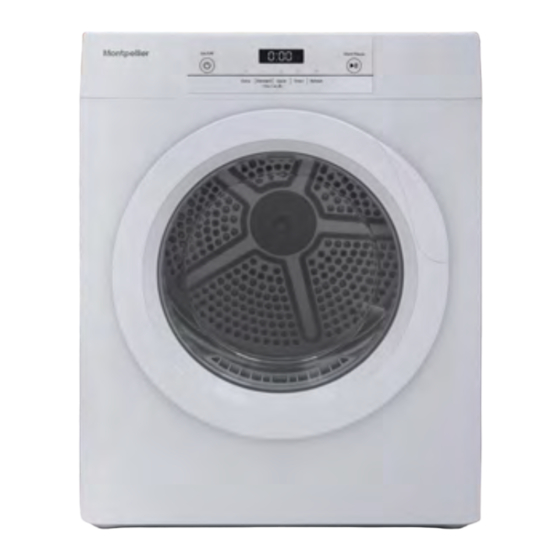

3kg compact tumble dryer

Advertisement

Quick Links

THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
3kg Compact Tumble Dryer
MTDAD3P - White
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTDAD3P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for montpellier MTDAD3P

  • Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions 3kg Compact Tumble Dryer MTDAD3P - White Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
  • Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
  • Page 3: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS Sa f ety Instructions..........■ INSTALLATION Pro d uct Descr iption ..........■ Installation ............■ OPERATIONS Q uick Star t ............. ■ Be f ore Dr ying ............■...
  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS ■ Safety Instructions • The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 5 SAFETY INSTRUCTIONS • Items such as foam rubber (latex form), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer. • Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
  • Page 6 To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Rated capacity Model MTDAD3P 3.0kg...
  • Page 7 SAFETY INSTRUCTIONS • Power supply and grounding The dryer employs alternative current with the rated voltage and frequency. When the voltage fluctuates between 6% of rated voltage, the dryer can work normally. A standard 13A socket outlet should be situated beside the dryer for convenience and safety.
  • Page 8 SAFETY INSTRUCTIONS Do not wash or dry articles that have been Never attempt to operate this appliance if it cleaned in, washed in, soaked in or spotted is damaged, malfunctioning, partially with combustible or explosive substances disassembled.or has missing or broken parts, (such as wax, oil, paint, gasoline, degreasers, including a damaged cord or plug.
  • Page 9: Installation

    INSTALLATION ■ Product Description Top Board Electronic Control Panel-----,..,.- Handle � --+--- Cabinet�!------- ■ Installation Installation Position Selection • Dryer should be placed in a ventilated area with not less than 10cm distance from the wall. It is suggested there are no obstacles within 1.5m in front of dryer to keep the appliance well ventilated.
  • Page 10 INSTALLATION • Level Adjusting Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet with a tool. �Note! If the dryer can't be placed horizontally (the lean angle is no more than 2°) this may cause the appliance to be unbalanced and stop working.
  • Page 11: Operations

    OPERATIONS ■ Quick Start � Note! --------- Before using, please make sure its installed properly. plug in load close door Drying � � select program start After Drying Buzzer beep or "0:00"on display. unload clean filter unplug...
  • Page 12: Before Drying

    OPERATIONS ■ Before Drying 1.Before drying, thoroughly spin the laundry in a washing machine. Hig h spin speed can reduce the drying time and save energy. 2.For uniform drying results, sort the laundry according to fabric type and drying appropriate drying programme. 3.Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
  • Page 13: Control Panel

    OPERATIONS ■ Control Panel o,mtt @ Start/Pause - p: - � ➔';f_- -�- Extra lstandardal Quick Time+ Refresh ls___. 1...- Press 3 sec. G)@) On/Off Start/Pause After plugging in and loading, Press the button to start or switch the product on or off. pause the drying cycle.
  • Page 14: Drying Programmes Table

    OPERATIONS Child Lock To set this function: Press "Standard" and "Quick" simultaneously for 3secafter the programme has been started, then the Child Lock symbol will display. This function can only be set after the machine starts to operate. Once it's activated, no pressing (except power On/Off key) of any button on the dryer will work.
  • Page 15: Cleaning And Care

    MAINTENANCES ■ Cleaning And Care Filter clean • Clean the lint filter after each use. • Remove the filter by pulling straight up. • Gently open the filter taking care not to break it. • Remove the lint by hand or with a damp cloth. •...
  • Page 16: Troubleshooting

    MAINTENANCES ■ Troubleshooting Issue Cause Solution • Power cut. • Wait for the power to return. Will not start/dry • The power plug is not plugged in • Check the socket/plug is not damaged and the plug is correctly fitted. correctly •...
  • Page 17: Technical Specifications

    Criteria Action code Temperature Temperature Sensor is Stop the program and call Sensor error open or short circuit 01759 487839 for service ■ Technical Specifications MTDAD3P � Dimension 655*520*435(mm) (H*W*D) Rated input power 1250W Rated voltage 220-240V- Rated frequency 50Hz...
  • Page 18: Pro D Uct Fiches

    MTDAD3P Model Rated Capacity Dryer Type Air-Vented Energy efficiency class 250.7 kWh/year Weighted annual energy consumption (AE ) ❶ Automatic Automatic or non-automatic EU Ecolabel Energy consumption of the standard cotton programme 1.54 kWh Weighted energy consumption of the standard cotton programme at full and partial load 2.11 kWh...
  • Page 19 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
  • Page 20 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
