THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING

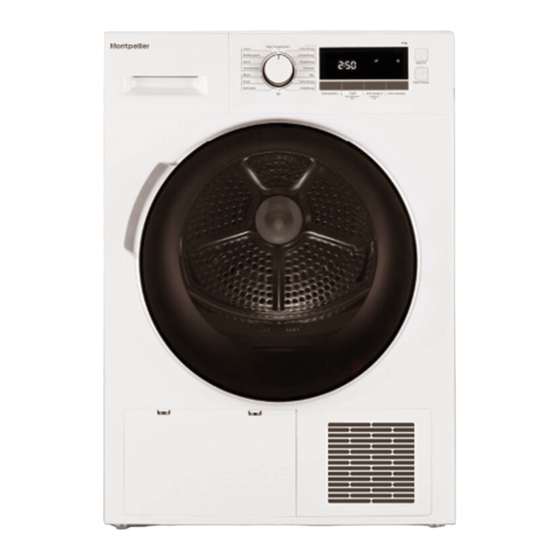

Freestanding Heat Pump Tumble Dryer
MHP8SDW
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
Advertisement
Table of Contents
Related Manuals for montpellier MHP8SDW
Summary of Contents for montpellier MHP8SDW
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Freestanding Heat Pump Tumble Dryer MHP8SDW Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ........... INSTALLATION Product Description ......... Installation ............OPERATION Quick Start ............Before each Drying .......... Control Panel ........... Option............... Display.............. Programmes............. Drying Programmes Table ....... Consumption Data..........MAINTENANCE Cleaning and Care .......... Trouble Shooting ..........TECHNICAL/WARRANTY Technical Specifications ........ -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions CAUTION: RISK OF FIRE ! ！ Warning! To prevent any damages to yours and others' life or property, you have to follow the safety notes. Intended use • This heat pump dryer is intended for drying typical amounts of household laundry, which have been washed with water. - Page 5 SAFETY INSTRUCTIONS ！ Warning! Electric shock hazard • The electrical safety of this tumble dryer can only be guaranteed when correctly earthed. It is essential that this standard safety requirement is met. If in any doubt, please have the household wiring system tested by a qualified electrician.
- Page 6 SAFETY INSTRUCTIONS Danger of Injury • The appliance must not be installed behind a lockable door,a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that fully opening the tumble dryer door is restricted.
- Page 7 SAFETY INSTRUCTIONS CAUTION: RISK OF FIRE ! Explosion & danger of fire • Please do not dry the clothes with any flammable substances such as kerosene or alcohol. Otherwise, there may be a risk of an explosion. • The appliance contains an environmentally friendly but flammable R290 refrigerant.
- Page 8 SAFETY INSTRUCTIONS • Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard. • Remove all objects from pockets such as lighters and matches. • If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent.
- Page 9 SAFETY INSTRUCTIONS Safety with children • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 10 The packaging materials are environmentally friendly and should be recycled. Recycling the packaging can reduce the use of raw materials in the manufacturing process and the amount of waste in landfill sites. Rated capacity Model 8.0kg MHP8SDW...
-
Page 11: Product Description
INSTALLATION Product Description Top board Control panel Water container Drum Power cord Door Lint filter Air inlet Maintenance cover Note: The actual model you purchased might differ. The above diagram is for illustration purposes only. Accessories If you wish to drain the water rather than it be collected in the water container then you can purchase a drain hose as an optional extra. -
Page 12: Installation
INSTALLATION Installation Packing the dryer Unpacking the Dryer • • Warning! ！ Packaging material (e.g. Foils, Styrofoam) can be dangerous for children. There is a risk of suffocation! Keep all packaging well away from children. Transportation. Move cautiously. The machine door cannot be used as a handle for transport. If the dryer can't be transported upright, the dryer can be tilted to the right less than 30°. - Page 13 INSTALLATION Installation Position Warning! Children can become entangled in the packaging film or ！ swallow small parts and suffocate. Do not allow children to play with the packaging. • The appliance is designed as a freestanding appliance and should not be built-in to any housing or be covered by a door of any description.
-
Page 14: Operation
OPERATION Quick Start Note! Before using, make sure the tumble dryer is installed correctly. Before Drying plug in load close the door Drying select program select function start or default After Drying Buzzer beep and "0:00"on display. open the door pull out the pour out clean the filter... -
Page 15: Before Each Drying
OPERATION Before each Drying Note! Before the first use, please use a soft fabric cloth to clean the inside of the drum, then follow the below instructions. 1.Put some clean rags into the drum. 2.Plug in to the power outlet, press [On/Off]. 3.Select the [Refresh] Programme, press [Start/Pause] button. - Page 16 OPERATION The reference weight of dry clothes (weight per item) Sweater Jacket Jeans Bath Towel Mixed 800g Cotton 800g Cotton 800g Cotton 900g Single bed sheet Work clothes Pyjamas Shirt Cotton 600g 1120g 200g Cotton 300g T-Shirt Underwear Socks Cotton 180g Cotton 70g Mixed weave 50g Note!
-
Page 17: Control Panel
OPERATION Control Panel Display On/Off Product is switched on or off. This display shows the setting, estimated program time remaining and status messages of your dryer. Start/Pause Press the button to start or Programmes pause the drying cycle. Different drying cycles can be selected according to the users need Option and the type of laundry to be dried. - Page 18 OPERATION Option Delay Delay This function is used for delaying the start of the drying programme up to 24 hours. When the delayed programme starts, the time starts to countdown on the display and the delay icon blinks. Load your laundry and make sure the machine door is closed. Press the 【On/Off】button,then use the programme selector knob to select the desired programme.
-
Page 19: Display
OPERATION My Cycle My Cycle Used to define and save your favourite programme, which is used frequently. Select the desired programme and other drying functions. Press and hold the【 】for 3 seconds until the beep sounds and the desired programme has been saved. Turn the programme selector to the【My Cycle】... -
Page 20: Programmes
OPERATION Programmes Programme selector 1.When the LED display screen lights up, rotate the programme knob to select the desired programme. 2.Select the【Delay】,【Time】,【Intensity】, or【Anti-Crease】functions for additional options. 3.Press the【Start/Pause】button. 4.Press the【On/Off】button after the programme has comlpeted. Programme start The drum will rotate after the programme starts. The remaining programme time will be displayed. -
Page 21: Drying Programmes Table
OPERATION Drying Programmes Table Programme Delay Application/Properties Time Load Extra For single or multi-layer cotton laundry to be dried completely for direct storage. Standard 8.0kg Cotton Iron For single layer cotton laundry to remain damp for ironing. For delicate laundry that is suitable for drying or laundry 1.0kg Delicate adviced to be hand washed at low temperature. -
Page 22: Consumption Data
Drying Capacity Residual Program Model Consumption Time Humidity Cotton Standard 1000rpm / 60% 210min 1.90kWh MHP8SDW Cotton Standard 1000rpm / 60% 125min 1.10kWh Synthetic Standard 3.5kg 800rpm / 40% 60min 0.60kWh Note! • Thick or multi-layered fabrics, e.g. jackets etc., are not easy to dry. You are better off choosing Cotton Extra programme or use “Intensity”... -
Page 23: Maintenance
MAINTENANCE Cleaning and Care Empty the water container 1. Pull out and hold the water container with two hands. 2. Tilt the water container, pour out the condensate water into the sink. 3. Re-Install the water container. Warning! ！ • Empty the water container after each use. Once the water container is filled completely, the programme will be paused and the "FULL"... - Page 24 MAINTENANCE Warning! ！ Do not touch the heat exchanger with your hand, as this may cause an injury. Cleaning the heat exchanger Leave the dryer to cool down. Residual water may leak out, place an absorbent cloth under the maintenance cover. •...
- Page 25 MAINTENANCE Cleaning the tumble dryer Warning! ！ • Disconnect the power cord before cleaning! • Clean the dryer with a wet cloth which is only damped by clean water. • Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaners. These could damage plastic surfaces and other parts.
-
Page 26: Trouble Shooting
MAINTENANCE Trouble Shooting Many malfunctions and faults that might occur in daily operation can be easily remedied. Time and money will be saved because a service call won't be needed. The following guide may help you to find the reason for a malfunction and correct it. - Page 27 MAINTENANCE Note! Before you call the service, please check if you have dealt with the problems yourself by consulting the user instructions. Solution Problem • Check if the power supply works. • Check if the mains plug is inserted. • Display is not on •...
-
Page 28: Technical/Warranty
TECHNICAL/WARRANTY Technical Specifications Model MHP8SDW Parameter Dimension(H*W*D) 845*595*600(mm) +5°C ~ +35°C Ambient temperature Rated input power 800W Rated voltage 220-240V~ Rated frequency 50Hz Refrigerant R290 41kg Weight of product Rated capacity 8.0kg CO² = eq 0.00t Quantity of refrigerant 120g Note! •... -
Page 29: Product Fiches
TECHNICAL/WARRANTY Product Fiches MHP8SDW Model Rated Capacity 8.0kg Dryer Type Condenser Energy efficiency class Weighted annual energy consumption (AE ) ❶ 235.0kWh/year Automatic or non-automatic Automatic EU Ecolabel Energy consumption of the standard cotton programme 1.44kWh Weighted energy consumption of the standard cotton programme at full and partial load 1.90kWh... -
Page 30: Here For You
Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim. - Page 31 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 SJU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
