l\•ontpellier
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions

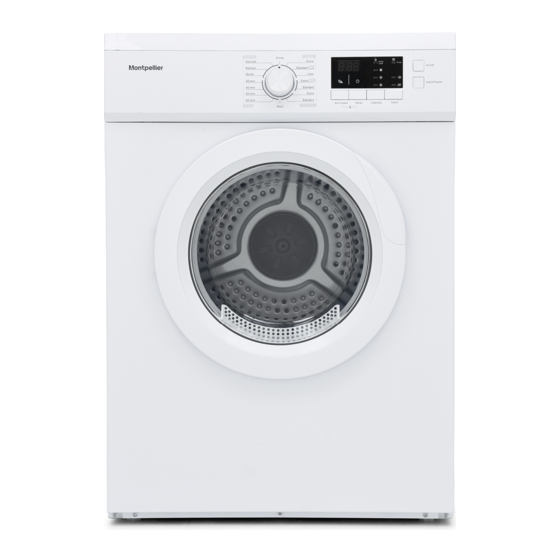

Freestanding Vented Tumble Dryer
-
MVSD7W
White - 7kg - Sensor Dry
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Advertisement
Table of Contents
Related Manuals for montpellier MVSD7W
Summary of Contents for montpellier MVSD7W
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Freestanding Vented Tumble Dryer MVSD7W White - 7kg - Sensor Dry Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Sa f ety Instructions..........■ INSTALLATION Pro d uct Description ..........■ Installation ............■ OPERATIONS Q uick Start ............. ■ Be f ore Dr ying ............1 O ■... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS ■ Safety Instructions • The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 5: Drying Programmes Table
SAFETY INSTRUCTIONS • Items such as foam rubber (latex form), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer. • Fabric softeners, or similar products, should be used as specified by the fabric softener instructions. - Page 6 To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Rated capacity Model MVSD7W 7.0kg...
- Page 7 SAFETY INSTRUCTIONS • Power supply and grounding The dryer employs alternative current with the rated voltage and frequency. When the voltage fluctuates between 6% of rated voltage, the dryer can work normally. A standard 13A socket outlet should be situated beside the dryer for convenience and safety.
- Page 8 SAFETY INSTRUCTIONS Do not wash or dry articles that have been Never attempt to operate this appliance if it cleaned in, washed in, soaked in or spotted is damaged, malfunctioning, partially with combustible or explosive substances disassembled.or has missing or broken parts, (such as wax, oil, paint, gasoline, degreasers, including a damaged cord or plug.
-
Page 9: Installation
INSTALLATION ■ Product Description Top board Side panel Control panel Drum Switch Power plug Door Filter Flexible duct Front anel ■ Installation • Installation Position Selection Dryer should be placed in a ventilated area with not less than 10cm distance from the wall. - Page 10 INSTALLATION • Level Adjusting Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet with a tool. �Note! If the dryer can't be placed horizontally (the lean angle is no more than 2°) this may cause the appliance to be unbalanced and stop working.
-
Page 11: Operations
OPERATIONS ■ Quick Start � Note! Before using, please make sure its installed properly. plug in load close door Drying select function start or default After Drying Buzzer beep or "0:00"on display. ,--'---=-----------,,.., unload clean filter unplug... -
Page 12: Before Drying
OPERATIONS ■ Before Drying 1.Before drying, thoroughly spin the laundry in a washing machine. Hig h spin speed can reduce the drying time and save energy. 2.For uniform drying results, sort the laundry according to fabric type and drying appropriate drying programme. 3.Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc. -
Page 13: Control Panel
OPERATIONS ■ Control Panel Airing B=BB elicate [!.Child =Filt•r =Lock □o/Off []�' efresh C -)it:- Quick c:1» � Start/Paose D � □� ' � :;, 50 min , � 60 min Intensity Signal Anti-Crease Delay L_IJI_J � "' Wool OPERATIONS Display On/Off Product is switched on or off. - Page 14 OPERATIONS Options Signal Press the signal button to either activate or de-activate the buzzer. Once selected the corresponding LED will show on the display panel . The buzzer will sound when finishing the cycle if it has been selected. Intensity Press the button to adjust the dryness level of the laundry.
-
Page 16: Cleaning And Care
MAINTENANCES ■ Cleaning And Care Filter clean • Clean the lint filter after each use. • Remove the filter by pulling straight up. • Gently open the filter taking care not to break it. • Remove the lint by hand or with a damp cloth. •... -
Page 17: Troubleshooting
MAINTENANCES Safety Reset Button Use your finger or a pencil to press the button in until you feel it click. ■ Troubleshooting Issue Cause Solution • Power cut. • Wait for the power to return. Will not start/dry • The power plug is not plugged in •... -
Page 18: Technical Specifications
PCB fault Temperature Temperature Sensor is E33/ Stop the program and call Sensor error open or short circuit 01759 487839 for service ■ Technical Specifications MVSD7W � Dimension 840*595*580(mm) (H*W*D) Rated input power 2000W Rated voltage 220-240V- Rated frequency... - Page 19 Model MVSD7W Rated Capacity Dryer Type Air-Vented Energy efficiency class Weighted annual energy consumption (AE ) ❶ 519.1kWh / year Automatic or non-automatic Automatic EU Ecolabel Energy consumption of the standard cotton programme Weighted energy consumption of the standard cotton programme at full and partial load 3.22kWh...
- Page 20 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 21 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 SJU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
