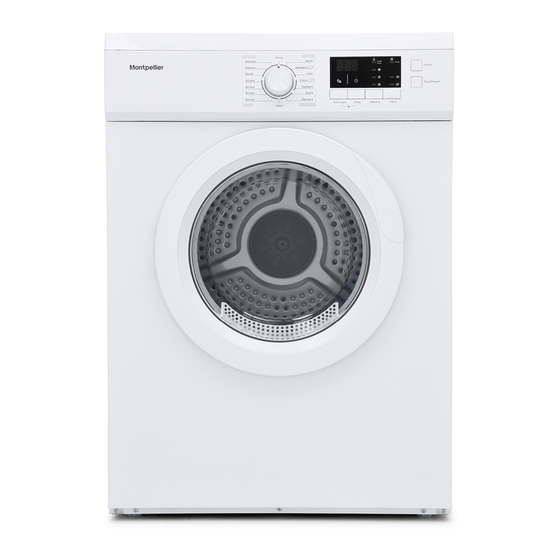

Freestanding Vented Tumble Dryer
MVSD7W
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
- White - 7kg - Sensor Dry
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for montpellier MVSD7W
Summary of Contents for montpellier MVSD7W
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Freestanding Vented Tumble Dryer MVSD7W - White - 7kg - Sensor Dry Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Tumble Dryer. Our Dryers have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Dryer to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATIONS Quick Start ............. Before Each Drying ..........Control Panel ............Drying Programmes Table ........MAINTENANCE Cleaning And Care ..........Trouble Shooting ............ Technical Specifications ......... Product Fiches ............ -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions • The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 5 SAFETY INSTRUCTIONS • Items such as foam rubber (latex form), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer. • Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
- Page 6 To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Rated capacity Model MVSD7W 7.0kg...
- Page 7 SAFETY INSTRUCTIONS • Power supply and grounding The dryer employs alternative current with the rated voltage and frequency. When the voltage fluctuates between 6% of rated voltage, the dryer can work normally. ≥ A special power socket with a capacity 10A for the dryer had better be set beside the dryer for convenience and safety.
- Page 8 CONTENTS Do not wash or dry articles that have been Never attempt to operate this appliance if it cleaned in, washed in, soaked in or spotted is damaged, malfunctioning, partially with combustible or explosive substances disassembled,or has missing or broken parts, ( such as wax, oil, paint, gasoline, degreasers, including a damaged cord or plug.
-
Page 9: Installation
INSTALLATION Product Description Top board Side panel Control panel Tumble Door Switch Power plug Door Filter Flexible duct Front panel Note: Please see the products you purchased in kind prevail. Installation >10cm Installation Position Selection • Dryer should be placed in a ventilated area with not less than 10cm distance from the wall. - Page 10 INSTALLATION Level Adjusting • Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet with a tool. Note! if dryer could not be placed horizontally (the lean angle is no more than 2°, the dryer will work unbalanced or stop working sometimes.
-
Page 11: Operations
OPERATIONS Quick Start Note! Before using, please make sure it's installed properly. plug in load close door Drying select function start or default After Drying Buzzer beep or " :00"on display. unload clean filter unplug... -
Page 12: Before Each Drying
OPERATIONS Before Each Drying 1.Before drying, thoroughly spin the laundry in washing machine. High spin speed can reduce the drying time and save energy consumption. 2.For uniform drying result, sort the laundry according to fabric type and drying programme. 3.Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc. 4.Do not over dry the clothes, because over dried clothes can easily get creases. -
Page 13: Control Panel
OPERATIONS Control Panel OPERATIONS Display On/Off This display shows the setting, estimated Product is switched on or off. remaining time and status messages of your dryer. Start/Pause Press the button to start or pause the Programmes drying cycle. Different Dryer cycle can be selected according to the user's needs to make the Option clothes have more effective drying results. - Page 14 OPERATIONS Option Signal Press the button to select the on or off signal function. The buzzer will prompt from the dryer when finishing the cycle. Press the【On/Off】 button and pull out the power cable. Intensity / INTENSVIE Press the button to select adjust the dryness level of the laundry. The level has three grades .
-
Page 15: Drying Programmes Table
OPERATIONS Drying Programmes Table MVSD7W... -
Page 16: Cleaning And Care
MAINTENANCES Cleaning And Care Filter clean • Clean the lint filter after each use. Remove by pulling straight up. • Cleaning filter Use wiping cloth or your fingers. • Install filter If the filter is cleaned by damp cloth or water, please install after the sun dry. -
Page 17: Trouble Shooting
MAINTENANCES Safety Reset Button Use your finger or a pencil to press the button in until you feel it click. Trouble Shooting Trouble Cause Solution Wait for switching on electricity. Power cut. Check the power socket,make sure plug tight. The power plug is not Will not start The clothes in drier must be after spinning, plugged tight. -
Page 18: Technical Specifications
PCB fault state Temperature Sensor Temperature Stop the program E33/ is open or short Sensor error and go to fault state Technical Specifications MVSD7W Model Parameter Dimension 555*595*840(mm) (L*W*H) Rated input power 2000W Rated voltage 220-240V~ Rated frequency... -
Page 19: Product Fiches
MAINTENANCES Product Fiche MVSD7W Model Rated Capacity Dryer Type Air-Vented Energy efficiency class Weighted annual energy consumption (AE ) 519.7Wh / year Automatic or non-automatic Automatic EU Ecolabel Energy consumption of the standard cotton programme Energy consumption of the standard cotton programme at full load 4.44kWh... - Page 20 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 21 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
