montpellier MIHP75 Installation And Operating Instructions Manual

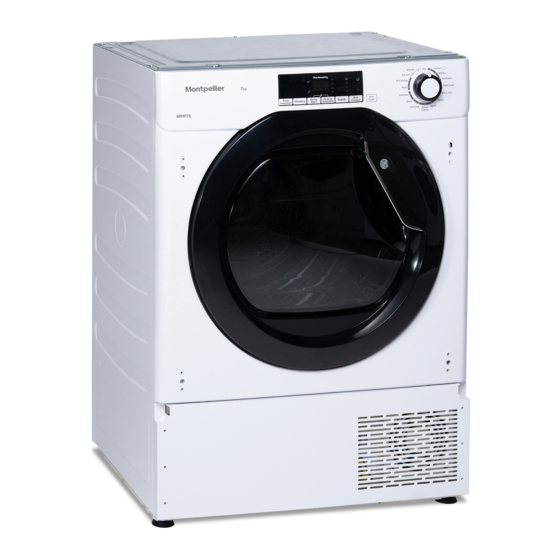

Integrated heat pump dryer
Hide thumbs

Advertisement

Quick Links

Integrated Heat Pump Dryer
MIHP75 -
7.0kg Load
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the MIHP75 and is the answer not in the manual?

Questions and answers

Related Manuals for montpellier MIHP75

Summary of Contents for montpellier MIHP75

  • Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Integrated Heat Pump Dryer MIHP75 - 7.0kg Load Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
  • Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.

  • Page 3: Table Of Contents

    Thank you for choosing this product. WEEE contains both polluting substances (which We are proud to offer the ideal product for can cause negative consequences for the you and the best complete range of home environment) and basic components (which can appliances for your daily routine.

  • Page 4: General Safety Rules

    1. GENERAL SAFETY RULES Children should be supervised This appliance is intended to be used in household and to ensure that they do not play domestic applications only. with the appliance. A different use of this appliance Children of less than 3 years from household environment...
  • Page 5 WARNING WARNING Do not use the product if the Never stop a tumble dryer fluff filter is not in position or before the end of the drying is damaged; fluff could be cycle unless all items are ignited. quickly removed and spread out so that the heat is dissipated.
  • Page 6 Installation Electrical connections safety instructions Do not install the product in a low The technical details (supply voltage temperature room or in a room and power input) are indicated where there is a risk of frost on the product rating plate. occurring.
  • Page 7 Check frequently the fluff filter Ventilation after use, and clean, if necessary. Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.
  • Page 8 Items that have been soiled with substances such as cooking WARNING oil, acetone, alcohol, petrol, Foam rubber materials can, kerosene, spot removers, under certain circumstances, turpentine, waxes and wax when heated become ignited removers should be washed in by spontaneous combustion. hot water with an extra amount Items such as foam rubber of detergent before being dried...
  • Page 9 WARNING Ensure that the openings on the appliance and the openings of the compartment the appliance WARNING is fitted in (for built-in models) Fire hazard Flammable are clear of obstructions. materials. WARNING The appliance contains R290, Do not damage the refrigerating an eco-sustainable refrigerating circuit.

  • Page 10: Mounting The Furniture Door

    2. MOUNTING THE FURNITURE DOOR Regulate the height of the dryer The 4 adjustable feet allow the height of the dryer to be adjusted from 827 mm to a maximum of 847 mm. To adjust the height, you should rotate Option 1: the adjustable feet, ensuring that the machine is level (figure 1).
  • Page 11 Fix the hinges in place (on the door) with the 4 screws provided (A) (figure 4). Fix the magnet (B) in place using screw (C) (figure 4). Mount the plate (D) on the right or left-hand side, depending on your installation requirements (figure 5).
  • Page 12 Option 2 The position of the plinth is set back more than 55 mm from the front of the furniture. Note: components not supplied -hinges -supports -door stop Firstly, slide the dryer into an opening of the size indicated in the diagram (figure 7).
  • Page 13 A furniture plinth may be run across the front of the dryer, but its height will be dictated by the front kickplate. Plinth must have ventilation slots (min. Side/diameter 127 mm hole) according to the dimensions on fixing template. If the plinth is not high enough to accommodate the whole hole, cut only part of it.

  • Page 14: Water Container

    3. WATER CONTAINER 2. Tilt the water container to empty the water out through the spout (B). When empty, replace the water container The water removed from the laundry during the drying cycle is collected in a container. back as shown; (C) first insert the base of the container into position as shown (1) When the container is full the relevant then gentle push the top into position (2).

  • Page 15: Door And Filters

    4. DOOR AND FILTERS Check and clean the main filter and the lower bottom appliance. Door If the laundry is not drying check that the Pull on handle to open the door. filters are not clogged. To restart the appliance, close the door and press the programme start button.
  • Page 16 To clean the condenser filter 1. Remove the kickplate. 2. Turn the locking levers anti-clockwise and pull out the front cover. 3. Gently remove the filter frame and clean any dust or fluff with a cloth from the filter. Do not use water to clean the filter. 4.

  • Page 17: Practical Hints

    5. PRACTICAL HINTS ALWAYS Check that the filter is clean before every Before using the tumble dryer for the first drying cycle. time: Please read this instruction book NEVER thoroughly. Put dripping wet items into the tumble dryer, this may damage the appliance. Remove all items packed inside drum.
  • Page 18 Cleaning the dryer WARNING The drum, door and load may be very Clean the filter and empty the water hot. container after every drying cycle. Regularly clean the condenser. After each period of use, wipe the inside WARNING of the drum and leave the door open for a Always switch off and remove the plug while to allow circulation of air to dry it.

  • Page 19: Quick User Guide

    6. QUICK USER GUIDE 7. CONTROLS AND PROGRAMMES 1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door. 2. Gently close the door pushing it slowly until you hear the door 'click' shut. 3.
  • Page 20 To start the selected cycle with the preset WARNING parameters, press START/PAUSE. When the programme is running, the display will Don’t touch buttons while show the time to elapse. inserting the plug because machine calibrates the system during Moreover, if you want to modify the the first few seconds.
  • Page 21 When pressing the button this PAUSING THE MACHINE increases the time in 10 minute Keep the START/PAUSE button pressed intervals. After this selection, to reset for about 2 seconds (the name of the the automatic drying functioning it is programme and the residual time display necessary to switch off the dryer.
  • Page 22 This appliances is equipped with Drying CHILD LOCK can be modified at any Manager function. On automatic cycles, time of the cycle. each level of intermediate drying, prior to reaching selected one, indicated by flashing the light indicator Display corresponding to the degree of drying reached.
  • Page 23 Drying Guide Information for Test Laboratory EN 61121 - Programme To Use The standard cycle COTTON DRY ( is the most energy efficient and best suited - STANDARD DRY COTTON for drying normal wet cotton laundry. - IRON DRY COTTON table last page...
  • Page 24 Table of programmes Selectable Options PROGRAMMES Cotton Full Whites Full Synthetics Small Load Mix & Dry Jeans Sport Down Jackets Coloured Shirts Delicates Wool 70’ Anti-allergy Max 220’ Pre-Iron 12’ Refresh 20’ * The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.
  • Page 25 Shirts Description of programmes This specifics cycle has been conceived to dry shirts minimizing tangles and To dry different types of fabrics and colors, folds thanks to specific movements of the the tumble dryer has specific programs to drum. It’s recommended to take out the meet every need of drying (see table of linens immediately after drying cycle.

  • Page 26: Troubleshooting And Warranty

    8. TROUBLESHOOTING Has the drying time or the programme been selected? AND WARRANTY Has the machine been switched on again What might be the cause of... after opening the door? Defects you can remedy yourself The dryer is noisy… Before calling Service for technical advice Switch off the dryer and contact Service please run through the following checklist.
  • Page 27 Capacity Energy Time Capac ty (kg) Class 2,83 Energy T me Min. 2,62 Energy T me Min. 2,25 Energy T me Min. 1,20 Energy T me Min. 1,76 Energy T me Min. By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.
  • Page 28 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
  • Page 30 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
