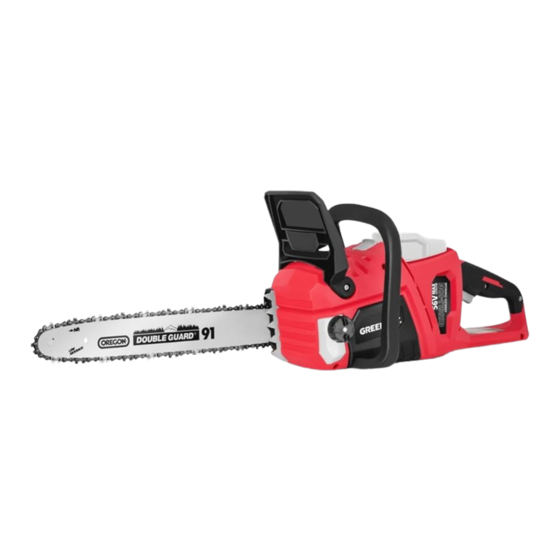

- Page 1 CHAINSAW GS56LI-ION Cordless Chainsaw 56V LI Operating instructions...
- Page 3 INDEX INTRODUCTION SAFETY RULES AND PRECAUTIONS WORK AREA SAFETY ELECTRICAL SAFETY PERSONAL SAFETY POWER TOOL USE AND CARE BATTERY TOOL USE AND CARE SERVICE CAUSAS Y PREVENCIÓN DEL CONTRAGOLPE KICKBACK EUNDERSTANDING YOUR CHAIN SAW SAFETY DEVICES LOW KICKBACK SAW CHAIN GUIDE BARS WARNING SYMBOLS PRODUCT DESCRIPTION...
-
Page 4: Safety Rules And Precautions
INTRODUCTION Thank you for choosing this GREENCUT product. We are sure you shall appreciate the quality and performance of this machine, which will facilitate your task for a long period of time. Remember that you can contact our Technical Support for any queries regarding assembly o maintenance, as well as for the resolution to any problems that may arise, and for the purchase of spare parts and/or accessories. -
Page 5: Work Area Safety
WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. WORK AREA SAFETY •... - Page 6 • Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. • Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 7: Causes And Operator Prevention Of Kickback
SERVICE • Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. • When servicing a power tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. - Page 8 Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator. Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.
- Page 9 • Always be aware of extension cord while operating chain saw. Take precautions to avoid tripping over cord. Keep cord away from chain and operator at all times. Never carry saw by the cord or pull it to disconnect from receptacle. Keep cord from oil and sharp edges. •...
- Page 10 wood only. Never use the chain saw to cut plastic, masonry or non-wood building materials. • Store chain saw when not in use. Chain saw should be stored in a dry and high or locked area out of the reach of children. When storing chain saw place the scabbard on the bar and chain and store the chain saw in carrying case.
-
Page 11: Guide Bars
EUNDERSTANDING YOUR CHAIN SAW SAFETY DEVICES LOW KICKBACK SAW CHAIN The rakers (depth gauges) ahead of each cutter can minimize the force of a kickback reaction by preventing the cutters from digging in too deeply at the kickback zone. Only use replacement chain that is equivalent to original chain or has been certified as low kickback chair. -
Page 12: Warning Symbols
WARNING SYMBOLS The warning icons on labels in this machine and/or in the manual indicate the necessary information for the safe use of the device. Safety Alert Indicates a potential personal injury hazard. Read Operator’s To reduce the risk of injury, user must read and understand Manual operator’s manual before using this product. -
Page 13: Detailed Description Of The Product
PRODUCT DESCRIPTION DETAILED DESCRIPTION OF THE PRODUCT... - Page 14 The safe use of this product requires an understanding of the information on the tool and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules. 1.
-
Page 15: Technical Data
104.6 dB(A) Uncertainty of measurement 2.5 dB BATTERY AND CHARGER Battery Pack BAT56V-4A Weight 1,67 Kg Charger CHAR-50HZ Weight 0,87 Kg Compatible Battery Pack BAT56V-4A NOTE: GREENCUT reserves the right to modify the specifications of the device without prior notice. -
Page 16: Box Contents
BOX CONTENTS PACKING LIST... - Page 17 WARNING Should there be any damaged or missing parts, please contact GREENCUT’s technical support. Do not use this product without having replaced the damaged or missing part. Using this product with either damaged or missing parts may cause serious injuries to the operator.
-
Page 18: Using The Product
ADJUSTING THE CHAIN TENSION See page 23. See page 32. 1. Loosen the chain tensioner knob slightly by turning it counterclockwise. 2. To increase the chain tension, turn the chain tensioner adjustment ring clockwise and check the chain tension frequently. To reduce the chain tension, turn the chain tensioner adjustment ring counterclockwise and check the chain tension frequently. -
Page 19: Starting The Chain Saw
handle. Grip both handles with the thumbs and fi ngers encircling the handles. Ensure that your left hand is holding the front handle so that your thumb is underneath. STARTING THE CHAIN SAW See page 23. 1. Before starting for operation, you should install the battery pack in the machine, and make sure chain brake is in run position by pulling chain brake lever / hand guard toward the front handle. -
Page 20: Maintenance
MAINTENANCE WARNING Use only original manufacturer’s replacement parts, accessories and attachments. Failure to do so can cause possible injury, poor performance and may void your warranty. WARNING Servicing requires extreme care and knowledge and should be performed only be a qualifi ed service technician. For service we suggest you return the product to your nearest authorized service center for repair. -
Page 21: Maintenance Schedule
WARNING A dull or improperly sharpened chain can cause excessive motor speed during cutting which may result in severe motor damage. WARNING Improper chain sharpening increases the potential of kick-back. WARNING Failure to replace or repair a damaged chain can cause serious injury. WARNING The saw chain is very sharp. - Page 35 RECYCLING AND DISPOSING When you decide to get rid of the machine, make sure to follow the local regulation. The batteries used in this mower’s battery pack contain the following toxic and corrosive material: LITHIUM-ION. WARNING Toxic materials must be disposed of in a specified manner in order to prevent contamination of the environment.
- Page 36 Manual revisado en marzo 2017...
