Trouble-shooting Manual

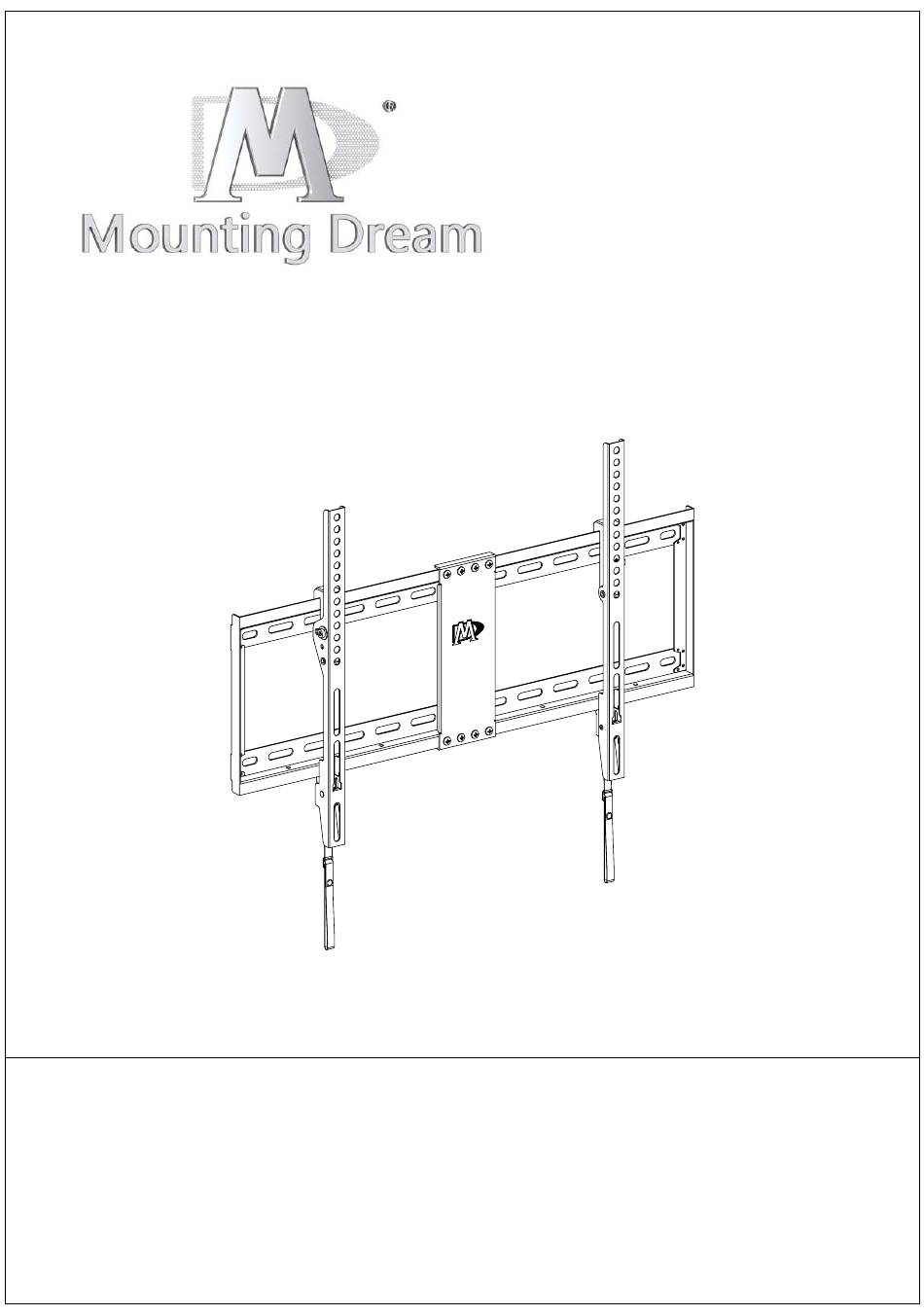

This manual applies to tilting wall mounts, including MD2165-LK, MD2263-LK,
MD2263-XLK, MD2268, MD2268-32, MD2268-LK, MD2268-MK, MD2268-S,
MD2268-XL,MD2868-LK and mounts in same design.
Please refer to this manual when encountering installation issues. Since it's
general solution, if cannot help or for defective product, please contact us with
more details of issues (TV parameters, VESA hole/mounting hole, pictures
highly recommended).
Mount shown here is indicative only. If there is any inconsistency between the
image and the actual product you received, the actual product will govern.

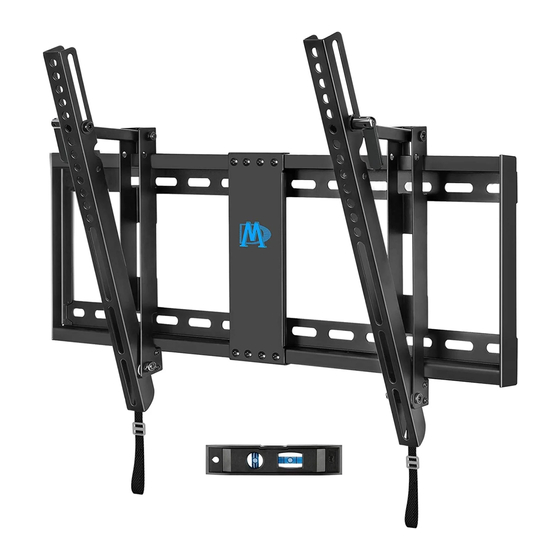

(Tilting Wall Mount)
C1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mounting Dream MD2165-LK
Summary of Contents for Mounting Dream MD2165-LK
- Page 1 Trouble-shooting Manual (Tilting Wall Mount) This manual applies to tilting wall mounts, including MD2165-LK, MD2263-LK, MD2263-XLK, MD2268, MD2268-32, MD2268-LK, MD2268-MK, MD2268-S, MD2268-XL,MD2868-LK and mounts in same design. Please refer to this manual when encountering installation issues. Since it's general solution, if cannot help or for defective product, please contact us with more details of issues (TV parameters, VESA hole/mounting hole, pictures highly recommended).
- Page 2 Tilting wall mount Case Solution TV bottom hits the wall Add spacers between bracket Then use upper VESA holes(like B) Tilting angle not up to desired degree and TV to enlarge space instead of lower ones (like A) (for VESA under 400 x 400) Limited operation space between wall and bracket 200mm 200mm...
- Page 3 Tilting wall mount Case Solution ① Brackets cannot clip into wall plate, or hard to Reduce the tilting angle to 0° first, then: adjust the tilting angle. For ① : Fasten the tilting bolt to some extent, hang TV into the wall ②...
- Page 4 Tilting wall mount Case Solution ① Brackets stick out the TV For ① Move Brackets downward, and use upper bolt holes to attach TV. Mounting Mounting Mounting Mounting hole hole hole hole ② Strap sticks out of TV For ② Use slide buckle to shorten the straps. If still long, tape straps up onto TV or cut it off.
