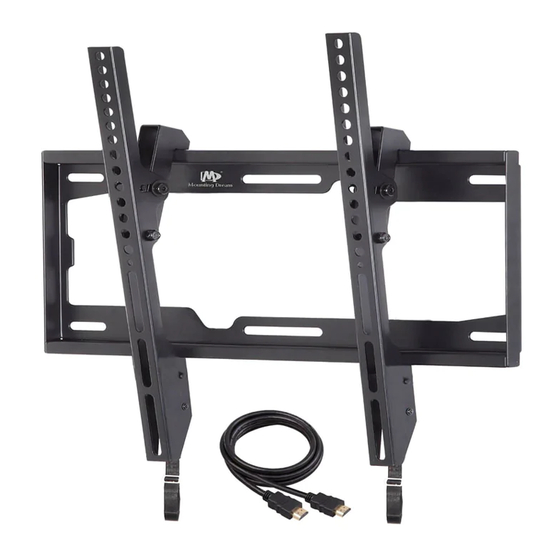

Mounting Dream MD2268-MK Installation Instruction

Hide thumbs Also See for MD2268-MK:

Advertisement

Quick Links

Download this manual
INSTALLATION INSTRUCTION
Please read this instruction carefully before installation .
Fits for most 26-55 inches Plasma, LCD and LED TVs .
Weight capacity: 45.5 kg (100 lbs) .
Thank you for purchase!We strive to provide products and services of exceptional quality.
We sincerely invite you to write a review with a good rating. For parts missed or installation problems,
please contact us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time) or email
us by customerservice@mountingdream.com , so that we may solve the issue for you.
Max VESA: 400 X 400 mm/16X16"
MODEL ： MD2268-MK
(A7)

Advertisement

loading
Need help?

Need help?

Do you have a question about the MD2268-MK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mounting Dream MD2268-MK

Summary of Contents for Mounting Dream MD2268-MK

  • Page 1 INSTALLATION INSTRUCTION Max VESA: 400 X 400 mm/16X16" MODEL ： MD2268-MK Please read this instruction carefully before installation . Fits for most 26-55 inches Plasma, LCD and LED TVs . Weight capacity: 45.5 kg (100 lbs) . Thank you for purchase!We strive to provide products and services of exceptional quality.
  • Page 2 Avertissement de sécurité: bienvenue à choisir le support suspendu de téléviseur de la Vue Aérienne, pour garantir un usage sécurité du produit MD2268-MK, préserver le risque contre vous-même et des tiers et éviter ledommage des biens, veuillez lire soigneusement ce manuel avant l'usage. Si vous ne pouvez pas comprendre cette notice ou en cas de doute sur la sécurité...
  • Page 3 Before getting started, let's make sure this mount is perfect for you! Is your TV VESA equal to/greater than 75x75mm and equal to/less than 400x400mm? MAX:400mm Yes --- Perfect! MAX:400mm No --- This mount is NOT compatible. Does your TV (including accessories) weigh more than 100 lbs (45.5kg)? NO --- Perfect! 100 lbs...

  • Page 4: Part List

    For parts shortage or damage, please contact us directly by customerservice@mountingdream.com. Attention: New delivery will be timely arranged to replace missed or defective parts. Installation tools: Band tape Band tape Screwdriver Bubble level Stud finder Pencil Pencil Socket wrench 3/8" 5/32"...

  • Page 5: Installation Hardware

    Installation hardware ： -Lag bolt -4mm Allen key 4pcs For concrete wall installations ONLY CAUTION: Do not use in drywall or wood Concrete Wall Anchor 4pcs Hardware for TV installation ： a--M4X12 bolt b--M5X12 bolt c--M6X12 bolt d--M8X25 bolt 4 pcs 4 pcs 4 pcs 4 pcs...
  • Page 6 Step 1 Wall plate installation : Option 1 Wall plate installation in wood stud To avoid potential body injury or property damage: 1. Wall mount must be installed into wood stud's center, not drywall alone. 2. Drywall covering the wood stud must not exceed 16 mm (5/8 in.). 3.
  • Page 7 Option 2 Wall plate installation on concrete wall To avoid potential personal injury or property damage: 1. Make sure the logo on the wall plate is upward as the picture shows. 2. Solid concrete wall's thickness should be more than 100mm/4", and the wall must be CAUTION capable of supporting five times the weight of the TV plus the mount.
  • Page 8 Step 2 Select TV hardware (diameter / length / combination) Bolt diameter: hand thread bolts into threaded inserts on the back of TV to determine correct bolt diameter (M4, M5, M6, M8). Bolt length: verify adequate thread engagement with bolts or bolts/spacers combination.
  • Page 9 Step 3 Attach brackets to the back of the TV: ① For the TV with flat back, mount the wall plate with bolt/washer/spacer combination. Tips: Make sure the ends of TV brackets with round holes are facing upward. Round hole is for upper VESA hole, and long slot hole for lower VESA hole.
  • Page 10 ② For TV with irregular back, mount the wall plate with bolt/washer/spacer combination. (Spacers are highly recommended to be added, thus enlarge the space between TV and brackets for better functionality.) Tips: Make sure the ends of TV brackets with round holes are facing upward.
  • Page 11 Step 4 Hang the TV on the wall plate---Make sure the tilting angle is 0°: Please pre-tighten the inner side tilting bolts before hanging the TV on the wall plate (figure 1). Hang the top hooks of the brackets over the top bar of the wall mount.

  • Page 12: Product Dimensions

    Step 6 To take down the TV from the mount, you may need to reduce the tilting angle to 0° by loosening the bolts with Allen key And pull down the straps to release the brackets from the bars. Then hold the TV upward to unlock the top hooks from the top bar.
