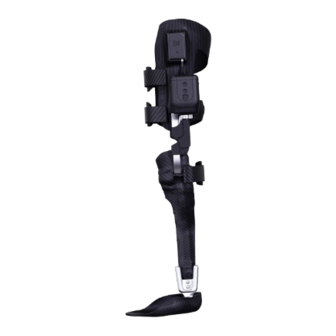

Tectus
User Guide
TEC-L, TEC-R
EN
User Guide
DE
Bedienungsanleitung
NO
Brukerhåndbok
2
32
33
PK1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tectus and is the answer not in the manual?

Questions and answers

Related Manuals for Blatchford Tectus

Summary of Contents for Blatchford Tectus

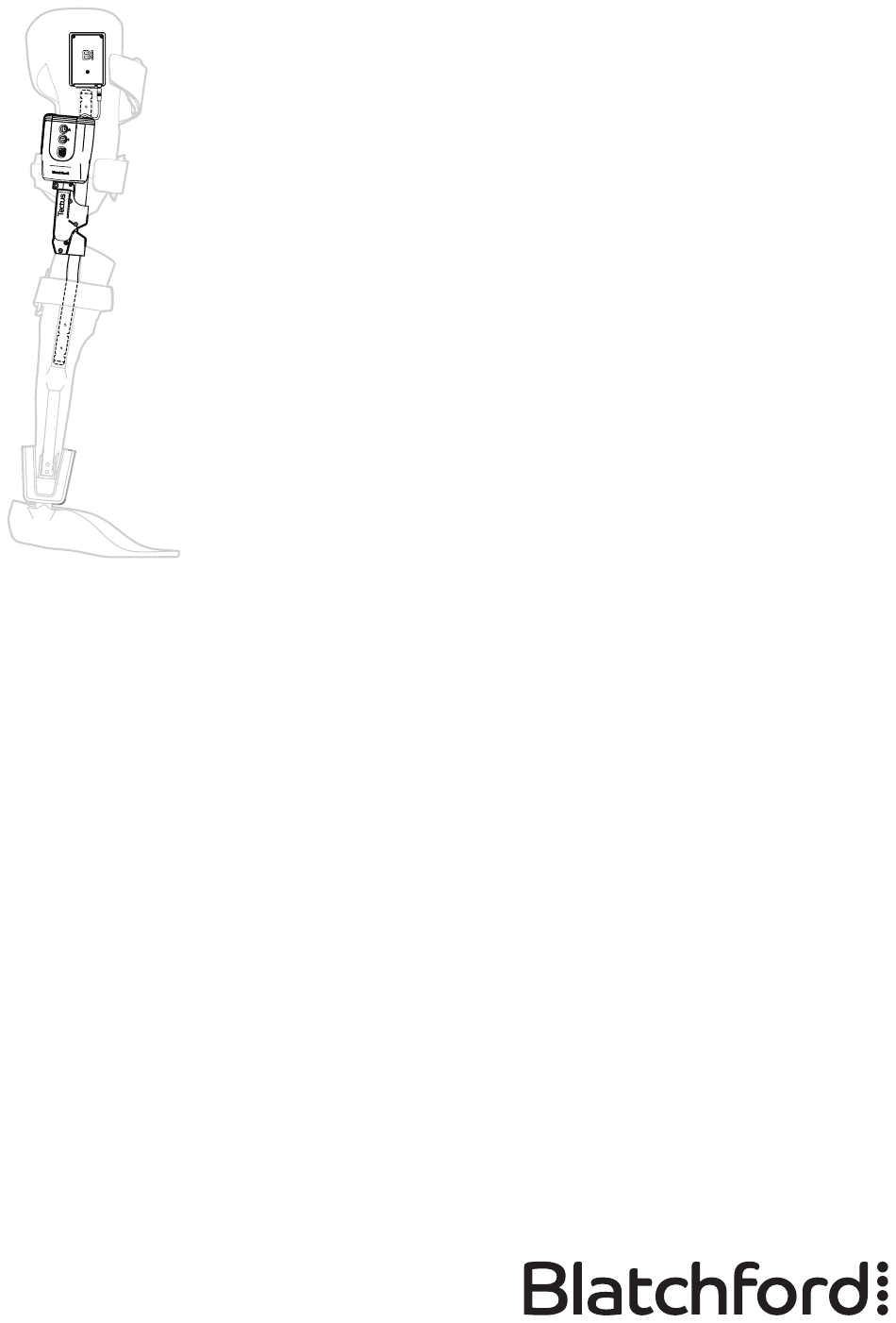

  • Page 1 Tectus User Guide TEC-L, TEC-R User Guide Bedienungsanleitung Brukerhåndbok...

  • Page 2: Table Of Contents

    10.3 Activities and Associated User Modes ...................... 22 10.4 Operating Actions and Device Indications ..................... 26 10.5 Mode Switching on the Device Using Tectus Module Buttons A and/or B ......... 27 10.6 Mode Switching on the Device Using The Key Fob ................28 10.7 Additional Key Fob Functions ........................

  • Page 3: Description And Intended Purpose

    1 Description and Intended Purpose These instructions are for the user (wearer) only. The term device is used throughout these instructions for use to refer to Tectus, a knee system comprising Tectus knee module, follower joint, battery pack, side-bars and associated key fob controllers.

  • Page 4: Safety Information

    Regularly check the limb on which the device. Tectus KAFO is worn for signs of skin irritation, tissue damage, pressure sores Ensure no water enters the charger plug or discomfort and report any such signs socket and the cover is only removed to your practitioner.
  • Page 5 When starting to walk, you should Keep the key fob on a lanyard separate always lead with the unaffected leg. from any other keys to prevent If walking is initiated with the braced accidental mode switching. limb, the device may not recognize the To prevent damage to clothing take movement and as a safety measure will care not to trap clothing in the moving...

  • Page 6: Construction

    (Lateral and Medial) Follower Joint Lower Leg Lower Knee Strap Side-bars (Lateral and Medial) Lower Leg Shell Key Fobs Foot Ankle Module Components (Supplied by other manufacturer) Note… For illustrative purposes, only the right leg Tectus KAFO is shown. 938464/3-1023...
  • Page 7 Tectus Knee Module (Right leg shown) On-board Graphic Display Override Button Knee Extension Assist Button A Adjuster Cover Button B Connecting Cable Power Follower Joint ON/OFF switch (Right leg shown) with dual-LED status indicator Tectus Module Knee Joint Battery Module...

  • Page 8: Key Points

    Operation of the device and the operating modes available to the user are described in Section 10 Tectus Knee Module Operation. A four-button key fob on a lanyard provides you with a remote control capability to switch the device between operating modes.

  • Page 9: Critical Service Indicator

    • Reduced knee support (free movement) • Any unrecognized beeps, warning lights, on-screen indications or device vibrations* • Any unusual noise *The device emits vibrations when operating modes change. This is normal behavior. Do not lubricate the device yourself, this will be carried out during servicing with the appropriate lubricants.

  • Page 10: Hard Reset

    If the malfunction is persistent contact your practitioner. Cleaning Blatchford recommends cleaning the device daily. Use a damp cloth and mild soap to clean outside surfaces, DO NOT use aggressive cleansers or bleach. Do not machine wash/tumble dry or use any hose, pressure washer/drier system.

  • Page 11: Limitations On Use

    The combined user weight and lifting load must not exceed 100 kg in all cases. Environment Avoid exposing the Tectus KAFO to corrosive elements such as water, acids and other liquids. Also avoid abrasive environments such as those containing sand for example as these may promote premature wear.

  • Page 12: Battery Charging

    If the device has been subjected to surfaces are dry, free from temperatures lower than -10 °C (14 °F) contamination and debris build-up, it must be returned to Blatchford for because this can prevent charging. inspection for possible damage to the battery pack.

  • Page 13: Before Charging

    It is recommended to charge the device every day when using it on a daily basis. It is recommended that you switch the device to Lock mode and, before charging, lay the Tectus KAFO down in a horizontal position (on a flat surface or floor), with the knee module facing upwards and with 5 degrees of knee flexion so that it is secure and does not roll over.

  • Page 14: Connecting And Disconnecting The Charger

    LED see Section 7.5 Battery Charger LED Indications.) Allow the magnets to naturally attract to each During charging Tectus will other. Do not use force when connecting the remain powered off. cable plug to the battery charger. Disconnect the magnetic charging connector Close the charging connector cover.

  • Page 15: Battery Charger Led Indications

    Battery Charger LED Indications Trickle Charge No battery detected or Initialization Battery Fully Charged (YELLOW) (GREEN) Error Fast Charge (ORANGE and (ORANGE) GREEN) Top-up Charge (GREEN and YELLOW) Note… Refer to the reverse side of the battery charger module and the instructions supplied with the charger for further information.

  • Page 16: How To Don And Doff The Tectus Kafo

    14. Set the device to Sit mode and sit down again carefully. 15. Set the device to Free mode and gently flex and extend the knee to confirm that Tectus KAFO fits comfortably throughout the range of movement.

  • Page 17: Doffing The Tectus Kafo

    Power OFF the device. Lay the Tectus KAFO down in a horizontal position (on a flat surface or floor), with the knee module facing upwards and with 5 degrees of knee flexion so that it is secure and does not roll over.

  • Page 18: Turning The Device On/Off

    9 Turning the Device ON/OFF The device is powered on or off via the Power ON/OFF switch on the device, there is no Power ON/OFF switch on the key fob. Powering ON To power on the device, press and hold the ON/OFF switch until LED illuminates green.
  • Page 19 Start-up Sequence Powering ON initiates the Display Indications Press and hold ON/OFF switch. automatic start-up sequence during which the LED and graphic display indications change, audible beeps sound and the device vibrates as shown. The sequence lasts for approximately 4 seconds. The GREEN LED illuminates and a Short Vibrate 2 short beeps are emitted.

  • Page 20: Tectus Knee Module Operation

    10 Tectus Knee Module Operation 10.1 User Modes The device has the following user-selectable The device may enter automatically the operating modes: following modes: • Walk • Critical Service • Sit • Safe • Stairs The device has the following practitioner-only selectable operating mode: •...
  • Page 21 10.2.3 Device Over-Stress Warning Very rarely, and under special circumstances, the device may emit a rapid beeping audio and vibration alarm, for up to 15 seconds. This indicates the device is over-stressed, through not being used as intended, or due to an internal fault. When Stress Warning Occurs If you take (or the device itself takes) successful remedial action to remove the over-stress condition before the end of the 15 seconds alarm period, then the alarms stop and the device...

  • Page 22: Activities And Associated User Modes

    10.3 Activities and Associated User Modes Mode Activated Activity Function and Procedure Guidance and Displayed Walking Automatically provides support during stance and release Walk during swing. Although not microprocessor controlled, knee extension assist is always active. Standing If you stand still while in Walk mode, you will be supported. From standing, the device will be alert to any movement, Walk such as a forward or backward step and provide support...
  • Page 23 Mode Activated Activity Function and Procedure Guidance and Displayed Stand-to-Sit Fixed resistance at knee to provide support while moving to seated position, the geometry of the module provides deep yield functionality. To sit, you must manually activate Sit mode via mode switching buttons on the device or on the key fob.
  • Page 24 Mode Activated Activity Function and Procedure Guidance and Displayed In Stairs mode, do not attempt to descend stairs using leg-over-leg gait until you have had adequate physiotherapy and completed supervised training signed off by your practitioner! Always approach stairs with caution and be aware of your surroundings.
  • Page 25 Warnings in this document and any national guidance Free Driving must be followed when considering driving while wearing a Tectus KAFO. Only the unaffected leg may be used to operate controls of a car. For driving, the device should be manually switched to Free mode via the key fob or the device buttons.

  • Page 26: Operating Actions And Device Indications

    10.4 Operating Actions and Device Indications Device and Key Fob Button Operation The device is manually operated by pressing either buttons A and/or B on the device, or by pressing buttons on one of the key fobs. The button or button combination pressed, together with the hold duration (Short, Long or Very Long) of the press determines which operation is selected.

  • Page 27: Mode Switching On The Device Using Tectus Module Buttons A And/Or B

    10.5 Mode Switching on the Device Using Tectus Module Buttons A and/or B Once start-up routine has successfully completed, the device can be controlled with button combinations on the Tectus Knee Module or Key Fob. Timing Aid Device Response Initiation Modes Beep &...

  • Page 28: Mode Switching On The Device Using The Key Fob

    10.6 Mode Switching on the Device Using The Key Fob Walk Mode or Step Counter Sit \ Stairs Mode Free Mode Lock Mode Timing Aid Device Response Initiation Modes Beep & Vibrate Displayed (On Fob) Beep Signal Screen Vibrate Signal Symbol 2×Low tone short 2×Short...

  • Page 29: Mechanical Override Operation

    2. If the Tectus KAFO is to be stored upright then secure the device to prevent it falling over. 3. If the device is shipped either on its own or built into a Tectus KAFO it should be put into Lock mode in an extended position and packaged in a suitable box to allow this.
  • Page 30 The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website Blatchford Inc. 1031 Byers Road, Miamisburg, OH 45342. 800-548-3534 (toll free) | 937-291-3636 customerservice@blatchfordus.com...
  • Page 31 Tectus and Blatchford are registered trademarks of Blatchford Products Limited. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG Inc., and any use of such marks by Blatchford is under License. Other trademarks and trade names are those of their respective owners.
  • Page 32 Tel: +47 (0) 55 91 88 60 Tel: +1 (0) 800 548 3534 Email: post@ortopro.no Fax: +1 (0) 800 929 3636 www.ortopro.no Email: info@blatchfordus.com www.blatchfordus.com Blatchford Europe GmbH Am Prime-Parc 4 65479 Raunheim Germany © Blatchford Products Limited 2023. All rights reserved. Patent Pending: EP22187950.5 938464/3-1023...
