- Page 1 IP Gateway P/N: GDX-GW-MGT-001 Doc ref: GDX-GW-MGT-001_LIT_SG Setup Guide Issue 1.1 Aug 2023 pacgdxsupport@comelit-pac.co.uk Technical Support T: +44 (0)161 406 3400 — Option 2 pacgdxcustomerservice@comelit-pac.co.uk Training T: +44 (0)161 406 3400 — Option 1...

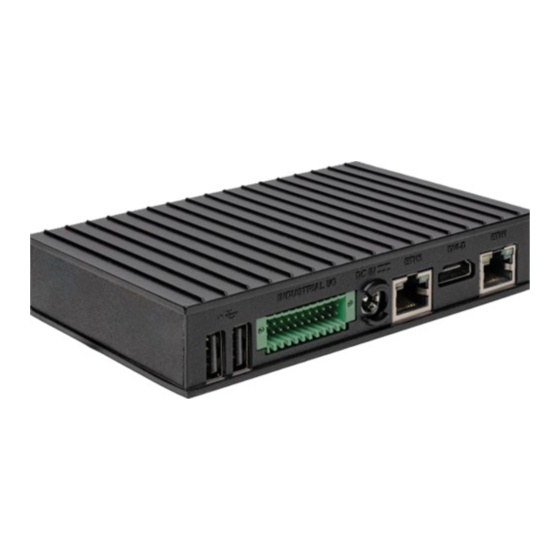

- Page 2 Layout Layout Gateway Layout FRONT VIEW REAR VIEW CAN Bus Connector Data Pin numbering PIN 2: CAN_L PIN 4: CAN_H PIN 5: ISO_GND_A PAGE | 2...
- Page 3 Setup Setup Setup Instructions The DC terminal block adaptor plugs into the Gateway (DC IN) and is connected to a DC power source. Wiring: positive DC IN negative 0V Insert connectors for LAN, WAN and CAN as required. Insert the power supply plug into the Gateway DC IN jack and turn the power plug clockwise to lock.
- Page 4 Set Gateway Password Set Gateway Password For the GDX Gateway to make a secure connection into Housing Central a password must be set in both Housing Central and the GDX Gateway device. To set the password on the GDX Gateway device, connect a network cable to the LAN input (ETH2) of the GDX Gateway device.
