- Page 1 Setup Guide Getting Started with the GDX Gateway Issue 1.0 Mar 2023 pacgdxsupport@comelit-pac.co.uk Technical Support T: +44 (0)161 406 3400 — Option 2 pacgdxcustomerservice@comelit-pac.co.uk Training T: +44 (0)161 406 3400 — Option 1...

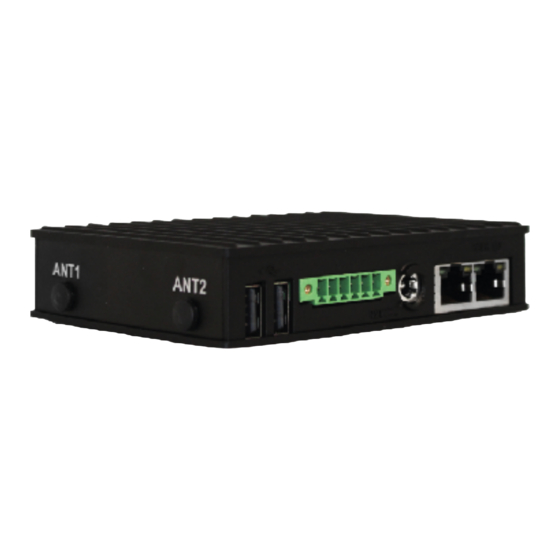

- Page 2 Layout Layout Gateway Layout FRONT VIEW REAR VIEW PAGE | 2...
- Page 3 Layout continued... Layout continued... SIDE VIEW CAN Bus Connector Data Pin numbering Connector type 20-pin dual-raw plug with push-in spring connections. Locking: screw flange. Pitch: 2.54 mm. Wire cross section: AWG 20 – AWG 30. PIN Signal designation: 1. CAN_H 2.
- Page 4 Wiring: positive DC IN negative 0V 2. Insert the power supply plug into the GDX Gateway DC IN jack and turn the power plug clockwise to lock. 3. Turn the Gateway ON and OFF: Press the Power button once to power ON.
