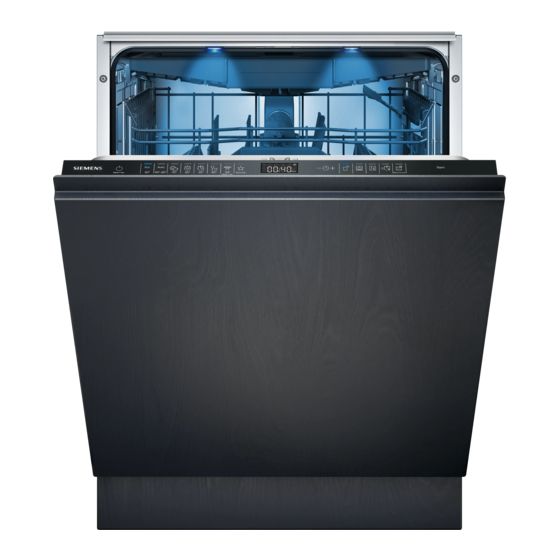

- Page 1 Translated from German to English - www.onlinedoctranslator.com N65EX10CE Dishwasher Instructions for use gist r your applianc on My Si m ns and discov r xclusiv s rvic s and off rs. Siemens Home Appliances...
-
Page 2: Table Of Contents
Further information and explanations can be found online: Table of contents 1 Security ........4 8 Equipment ........ 23 1.1 General information ....4 8.1 Upper dish rack ....24 1.2 Intended 8.2 Cake stand ........24 use ........... 4 8.3 Lower dish rack .... 25 1.3 Restriction of the user 8.4 Folding spines........ - Page 3 21 Technical data ....59 13.2 Putting away the dishes....35 21.1 Information on free and open 13.3 Clearing out the dishes....36 source software ..59 14 Basic operation..36 22 Declaration of Conformity ... 60 14.1 Switching on the device ....36 14.2 Setting the program .....
-
Page 4: Security
deSecurity 1 Security Please note the following safety instructions. 1.1 General information ¡Read these instructions carefully. ¡Save the instructions and product information later use or subsequent ownership. ¡Do not connect the device if it is damaged during transport. 1.2 Intended use Use the device only: ¡to wash household dishes. - Page 5 Securityde WARNING - Risk of electric shock! Improper installations are dangerous. ▶ Only connect and operate the device in accordance with the information on the nameplate. ▶ Always use the power cable supplied with the new device. ▶ Only connect the device to an alternating current power supply via a properly installed earthed socket.
-
Page 6: Safe Use
deSecurity Contact between the device and installation cables can lead to a defect in the installation cables, e.g. E.g., gas pipes and power lines. Gas from a corroded gas line can ignite. A damaged power line can lead to a short circuit. ▶... - Page 7 Securityde Strongly caustic-alkaline or highly acidic cleaning agents in conjunction with aluminum parts in the washing compartment of the device can lead to explosions. ▶ Never use highly caustic-alkaline or highly acidic cleaning agents, especially from the commercial or industrial sector, in conjunction with aluminum parts (e.g.
-
Page 8: Damaged Device
deSecurity ▶ Never bend, squeeze or change the power cable. 1.6 Damaged device WARNING - Risk of electric shock! A damaged device or a damaged power cable is dangerous. ▶ Never operate a damaged device. ▶ Never operate a device with a cracked or broken surface. ▶... - Page 9 Securityde Children can inhale or swallow small parts and thereby suffocate. ▶ Keep small parts away from children. ▶ Do not let children play with small parts. Children can become trapped in the device and suffocate. ▶ If available, use parental controls. ▶...
-
Page 10: Avoid Material Damage
deAvoid property damage Contact between the device and 2 property damage water pipes may cause corrosion of avoid the water pipe and the water pipe may leak. Make sure there is at least 5 cm ▶ 2.1 Safe Installation distance between the device and the water pipe. -
Page 11: Environmental Protection And Saving
Environmental protection and savingde Special salt for dishwashers can 3.2 Save energy damage the washing container If you follow these instructions, your through corrosion. device will use less electricity and ▶ To ensure that overflowed special water. salt is rinsed out of the rinsing container, fill the special salt into the Use the Eco 50°... -
Page 12: Autoopen Dry
deSetting up and connecting Sensor level Description 4 Set up and SE:01 Does the program Connect strength even with small amounts of dirt S To ensure proper operation, conditions for connect the device to electricity and effective elimination water properly. Please note the leftover food. -
Page 13: Waste Water Connection
Setting up and connectingde adjacent worktop, which is firmly 4.4 Drinking water connection connected to the neighboring Connect your device to a drinking cupboards. water connection. Follow the safety instructions. → page 4 Install drinking water connection Follow the instructions for electrical Hints connection. - Page 14 deSetting up and connecting Plug the power plug of the device's power cord into a socket near the device. The connection data of the device is on the nameplate. Check that the power plug is firmly seated.
-
Page 15: Getting To Know Each Other
Get to knowde 5 Getting to know each other 5.1 Device Here you will find an overview of the components of your device. type label Type plate with E number and FD number → Page 58 . You need the data for customer service → Page 58 . - Page 16 deGet to know Fill the cleaner chamber with cleaner. Cleaner chamber → "Cleaner", page 31 Lower dish rack → Page 25 Lower dish rack Fill the special salt storage container with Storage container for special special salt. salt → "Softening system", page 27 Lower spray arm The lower spray arm cleans the dishes in the lower basket.
-
Page 17: Controls
Get to knowde 5.2 Controls You can use the control panel to set all of your device's functions and receive information about its operating status. Some buttons allow you to perform various functions. 3 4 5 6 7 11 10 Switch on device →... - Page 18 deGet to know programs Program buttons and additional → "Programs", page 20 functions Additional functions → "Additional functions", page 23 Start program → Page 37 Start button → "Remote Start", page 45 Remote start Set time delay → Page 37 Change Time delay and setting buttons basic settings Open the device door.
- Page 19 Get to knowde symbol Description When you have started a program, the symbol lights up in the display. If there is a problem with the water supply or water The symbol in the display lights up or flashes. → "Troubleshooting", page 50...
-
Page 20: Programs
programs 6 programs H Here you will find an overview of If the rinse aid system is switched on or if the adjustable programs. Depending there is a lack of rinse aid, the running time on the device configuration, various changes. -
Page 21: Information For Test Institutes
programsde program Program Sequence Dishes: Particularly gentle: ¡delicate dishes, handling ¡Pre-rinse Glass 40° plugs, temperature-sensitive ¡Clean 40°C ¡ plastics, glasses and stemware Intermediate rinsing ¡Rinse 60 °C ¡dry Degree of pollution: ¡low-stick, fresh food leftovers Dishes: Time optimized: ¡mixed dishes and dishes ¡Clean 65°C ¡... - Page 22 deprograms Tip:You can use the Home Connect app to download additional programs and save them to the button. Favorite save on the device Open the device door. press. Press the appropriate program button. Press the button for the appropriate additional function. Press for 3 seconds.
-
Page 23: Additional Functions
Additional functionsde Additional functions Here you will find an overview of the additional functions that can be set. Depending on Device configuration, various additional functions are available, which you can find on the control panel of your device. Depending on the program, you can choose certain additional functions. -
Page 24: Upper Dish Rack
deFurnishing Lower or raise the dish rack evenly 8.1 Upper dish rack to the appropriate level. Place cups, glasses and small dishes in the top rack. Make sure the dish rack is at the same height on both sides. To create space for larger dishes, you Release the levers. -
Page 25: Lower Dish Rack
Furnishingde 8.3 Lower dish rack 8.4 Folding spines Put pots and plates in the lower dish Use the folding spikes to safely sort rack. dishes, e.g. B. Plates. You can place large plates up to a diameter of 31 cm in the lower dish To make it easier to organize pots, rack as shown. -
Page 26: Cutlery Drawer
deFurnishing Set the slider to ON or OFF. 8.5 Cutlery drawer Put cutlery in the cutlery drawer. Insert the upper dish rack. Place cutlery with the pointed and Clean glass zone sharp side facing down. Limescale and impurities from the rinse water can clog the nozzles. -
Page 27: Before First Use
Before first usede Hang the glassZone in the upper Requirement:The device is set up and connected. → page 12 dish rack and lock it into place. Pour in special salt. → Page 28 Fill in rinse aid. → Page 30 Turn on a device. -
Page 28: Setting The Softening System
deSoftening system mmol/l Setting value Water hardness level Hardness range °dH soft H:00 0 - 6 0 - 1.1 soft H:01 1.2 - 1.4 9-10 H:02 1.5 - 1.8 medium H:03 11 - 12 1.9 - 2.1 medium H:04 13 - 16 2.2 - 2.9 medium hard... -
Page 29: Switching Off The Softening System
Softening systemde When using for the first time: Fill Only use up to a water hardness of the storage container completely 21 °dH without adding special salt. with water. ¡The water hardness level is 0 - A notice:Only use special salt for 6 °dH. -
Page 30: Rinse Aid System
deRinse aid system Fill in the rinse aid up to the max Additional runtime in mark. minutes Additional water consumption in liters 0.05 Additional consumption of electricity in kWh The stated consumption values are laboratory measurements according to the currently valid standard and determined using the Eco 50°... -
Page 31: Switching Off The Rinse Aid System
cleanserde – A higher level adds more rinse 1 2 cleaners aid to the rinse cycle, reduces water stains and produces a better drying result. 12.1 Suitable cleaners To save the settings, Only use cleaner that is suitable for Press for 3 seconds. dishwashers. -
Page 32: Unsuitable Cleaners
decleanser Add cial salt and rinse aid. For the Liquid cleaner best washing and drying results, we Liquid cleaners work faster and are recommend using special salt and recommended for shortened rinse aid for water hardness levels of programs without pre-rinsing. 14 °dH and above. -
Page 33: Filling With Cleaner
cleanserde For results, we recommend using Pour cleaner into the dry cleaner special salt for water hardness chamber. levels of 14 °dH and above. 50ml ¡To avoid sticking, 25ml Only handle cleaners with a water- 15ml soluble coating with dry hands and only fill them into a dry cleaner chamber. -
Page 34: Tableware
deDishes Close the cleaner chamber lid. 13.1 Damage to glass and dishes Only wash glasses and porcelain that are marked as dishwasher-safe by the manufacturer. Avoid damage to glass and dishes. Caused Recommendation Just rinse The following thing Dishes, that dishes are not dishwasher from manufacturer... -
Page 35: Putting Away The Dishes
Dishesde Door area comes. This can damage Caused Recommendation your built-in furniture. If you are strong Strong caustic alkaline ash or strong caustic alkaline acidic rice or strongly acidic food, containing cleaning products in particular means of supply from the trade turn, especially area or special... -
Page 36: Clearing Out The Dishes
deBasic operation To save resources, do not pre- 13.3 Clear out dishes wash the dishes under running water. WARNING Put the dishes away and pay Risk of injury! attention to the following: Hot dishes can cause burns to the skin. –... -
Page 37: Setting The Program
Basic operationde 14.2 Setting the program 14.5 Start program To adapt the washing cycle to how press. ▶ dirty the dishes are, set a suitable aThe program is finished when program. the display shows “00h:00m”. Press the appropriate program ▶ Hints button. -
Page 38: Cancel Program
deBasic operation 14.7 Cancel program To end a program prematurely or to change a program that has been started, you must cancel it. Open the device door. approx. 4 seconds press. Close the appliance door. aThe program is aborted and is completed after approx. 1 minute. -
Page 39: Basic Settings
Basic settingsde 1 5 basic settings S You can adjust the basic settings of your device to suit your needs. 15.1 Overview of the basic settings The basic settings depend on the features of your device. basic Description Display text Selection position H:04... - Page 40 deBasic settings basic Description Display text Selection position Hot water A:00 A:00 - A:01 Set cold water connection or hot water connection. Set the device only for hot water, if the hot water is processed economically and a suitable installation is available, e.g. B. a solar system with a circulation line.
- Page 41 Basic settingsde basic Description Display text Selection position S:01 S:00 - S:01 Turn TimeLight on or off. TimeLight While the program is running, status information about the time delay, the program or the remaining time is projected onto the floor below the device door.
- Page 42 deBasic settings basic Description Display text Selection position o:02 o:00 - o:02 Automatic opening of the autoOpen Dry device door during Activate or deactivate the drying phase. If the function is activated, the running time may increase. The following settings are possible: ¡With the setting "o:00"...
-
Page 43: Changing Basic Settings
Basic settingsde basic Description Display text Selection position → "Remote Start", page Remote start rc:01 rc:00 - rc:02 45 activate or deactivate. The following settings are possible: ¡With the setting "rc:00" the function is permanently deactivated. ¡With the setting "rc:01" The function can be selected using the button. -
Page 44: Home Connect
deHome Connect 16.1 Home Connect quick start 1 6 Home Connect This device is network capable. Connect your device to a mobile device Connect your device to a mobile device quickly and easily. to operate functions via the Home Connect app. The Home Connect services are not available in every Set up the Home Connect app country. -
Page 45: Remote Start
Cleaning and carede Categories of data to the 16.2 Remote Start Home Connect server You can start the device with your (Initial registration): mobile device using the Home ¡Unique device identifier (best Connect app. based on device keys and the MAC Tip:If you go to the basic settings →... -
Page 46: Cleaning Agents
B. due to food approved machine care and machine residues and lime. To avoid cleaner for dishwashers online at malfunctions and reduce odors, clean https://www.siemens- the device at regular intervals. home.bshgroup.com/store or via customer service. Machine care, in conjunction with... -
Page 47: Sieve System
Cleaning and carede If the machine care indicator on the Only use machine care products control panel lights up or the display that are specifically designed for advises you to do so, carry out the dishwashers. machine care without dishes. After you Pour the machine cleaner into the have carried out the machine cleaner chamber until it is... - Page 48 deCleaning and care Turn the coarse sieve Clean the sieve elements under counterclockwise and remove the running water. sieve system. Carefully clean the dirt edge Make sure that no foreign objects between the coarse sieve and fine ‒ fall into the pump pot. sieve.
-
Page 49: Cleaning The Spray Arms
Cleaning and carede 17.6 Clean spray arms Limescale and impurities from the rinse water can block the nozzles and bearings of the spray arms. Clean the spray arms regularly. Unscrew the upper spray arm and pull it downwards. Pull the lower spray arm upwards. Check the outlet nozzles of the spray arms for blockages under running water and remove foreign bodies if... -
Page 50: Troubleshooting
Troubleshooting information before contacting customer service. This way you avoid unnecessary costs. Tip:Further information and explanations for troubleshooting can be found online by scanning the QR code in the table of contents and on our website siemens-home.bsh-group.com. WARNING Danger of electric shock! Improper repairs are dangerous. - Page 51 Troubleshootingde Cause and troubleshooting Disturbance E:32-00 lights up Take the strainer out of the inlet hose Change or display for water supply shines. Clean the sieve. Place the strainer in the inlet hose. Screw on the water connection. 8th. Check the water connection for leaks. Connect the power supply.
- Page 52 deTroubleshooting Cause and troubleshooting Disturbance E:61-03 lights up No device error. The siphon connection is still closed Change. Water will or the waste water hose is kinked or blocked. not pumped out. Check the connection on the siphon and open it if necessary.
- Page 53 Troubleshootingde Cause and troubleshooting Disturbance All LEDs light up Electronics have detected an error. or flashing. Press the main switch button for about 4 seconds. The device will reset and restart. If the problem occurs again: Turn off the device. ‒...
- Page 54 deTroubleshooting Cause and troubleshooting Disturbance Leftover food on dishes dishes. Sieves are inserted incorrectly and/or not locked. Insert the sieves correctly. → "Sieve system", page 47 Lock the sieves into place. Washing program selected that is too weak. Choose a stronger washing program. ▶...
- Page 55 Troubleshootingde Cause and troubleshooting Disturbance Removable streaks Place dishes in the upper dish rack so that the tab are located on glasses, drip tray is not blocked by dishes. glasses with a metallic → appearance "Putting away the dishes", page 35 and cutlery.
-
Page 56: Cleaning The Waste Water Pump
deTransport, storage and disposal Insert the pump cover and press 18.1 Clean the waste water 8th. down. pump Coarse food residue or foreign objects can block the wastewater pump. As soon as the flushing water no longer drains properly, you have to clean the wastewater pump. -
Page 57: Making The Device Frost-Proof
Transport, storage and disposalde 19.2 Make the device frost- 19.4 Dispose of old device proof Valuable raw materials can be reused through environmentally If the device is in a room at risk of friendly disposal. frost, e.g. B. in a holiday home, empty the device completely. -
Page 58: Customer Service
Customer service 20.2 AQUA-STOP guarantee 0 customer service In addition to warranty claims against Function-relevant original spare the seller from the purchase contract parts in accordance with the relevant and in addition to our manufacturer's Ecodesign Regulation are available guarantee, we provide replacement from our customer service for a under the following conditions. -
Page 59: Technical Data
Technical datade 2 1 Technical data Weight Max.: 60kg Tension 220 - 240V, 50Hz or 60Hz 2000 - 2400 W Connection value validation 10 - 16 A ¡at least 50 kPa (0.5 bar) ¡ Water pressure max. 1000 kPa (10 bar) at least 10 l/min Inflow quantity Cold water. -
Page 60: Declaration Of Conformity
Directive 2014/53/EU. tion You can find a detailed RED declaration of conformity online at BSH Hausgeräte GmbH hereby siemens-home.bsh-group.com on the declares that the device with Home product page of your device among Connect functionality is in accordance the additional documents. - Page 64 ENManufactured by BSH Hausgeräte GmbH under a trademark license from Siemens AG BSH Hausgeräte GmbH Carl-Wery-Strasse 34 81739 Munich, GERMANY siemens-home.bsh-group.com *9001849922* 9001849922 (030822) 650 A5...
