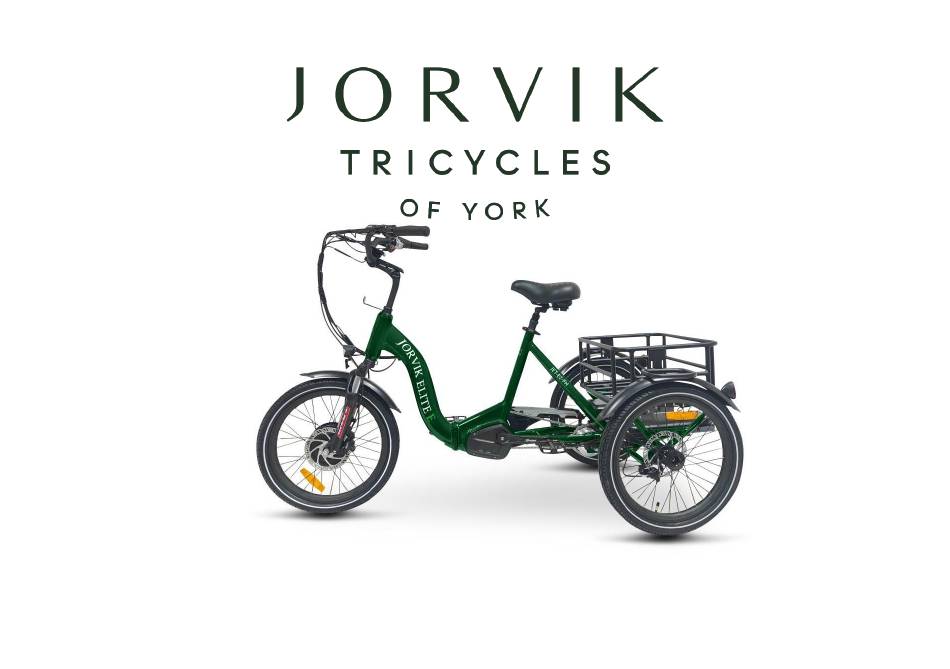

- Page 1 JET-E2 FH Elite Front Hub Dual Battery Folding Electric Tricycle [CITE YOUR SOURCE HERE.]...
- Page 2 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Page | 2...
-
Page 3: User Manual
Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle User Manual Thank you for purchasing a Jorvik Elite Tricycle “JET Range”. We believe this is the future of transport, not only is it an eco-friendly way of transportation of yourself or goods in the basket but the rider will also reap the benefits of a healthy body and a healthy mind. -
Page 4: Warning
Any cracks, scratches, changes of colour in the paint in high stress areas indicates the life of that component has been reached and should be replaced. For replacement parts, technical information and warranty assistance, please contact Jorvik Tricycles on +441904405338 or E-Mail: info@jorviktricycles.com... -
Page 5: Table Of Contents
Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Index About Charging User manual Removing the Battery Warning Starting the Tricycle Index How to Assemble the Tricycle Safety Troubleshooting Maintenance and upkeep Notes Page | 5... -
Page 6: How To Assemble The Tricycle
Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle How To Assemble This Tricycle Assembly Instructions Your tricycle has been pre-assembled. It requires only a few simple steps to get ready for your first ride. You may need a small amount of grease during assembly. - Page 7 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Wheel Assembly Instructions Loosen the nuts on the front wheel, position the wheel with the torque washer towards the floor. The wheel should be installed by lining up the brake rotor and the flat sides of the wheel axle with forks dropouts. The disc brake should be on the back and left side of the fork.
- Page 8 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Wheel Assembly Instructions Continued Tighten the nuts on the hub axle, ensure that the flat washers are outside the fork. Once the front wheel is securely fitted, connect the front drive cable. Ensure both arrows are lined up and the plugs are fully connected.
- Page 9 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Fitting the Pedals Apply a small amount of grease onto the pedal threads. NOTE: You will see either “L” or “R” on the end of the pedal thread. The “R” is for the righthand pedal and needs to be turned clockwise to tighten and the “L”...
- Page 10 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Fitting the Saddle Apply a small amount of grease into the seat tube or bottom of the seat post. Release the seat clamp lever and insert the seat post into the tube and slide up and down to make sure it moves freely.
- Page 11 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Fitting the Stem and Handlebars Open the stem by pushing down on the release catch situated on the left side of the stem cover. Loosen the bolt underneath using a 5mm Hex key and rotate the stem head to allow access to the main stem bolt.
- Page 12 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Front Fender Assembly Attach the fender using the 5mm hex bolt behind the fork arch or in the parts box. Attach the front light using the same bolt as shown in the images.
- Page 13 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Rear Fender Assembly The rear fenders are attached to the basket by 2x 5mm hex bolts (found in the fenders). The front of the basket has the mountain brackets further forwards. Use the bolts and washers to fix the fenders in place as shown.
- Page 14 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Fitting the Front Basket Install the basket support on the front of the forks with the 2 x 5mm hex bolts in the fork (see image 1). Attach the lower part of the basket to the support with the 2 x 4mm hex bolts and base fitting plate.
- Page 15 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Rear Basket Assembly Place the basket onto the rear axle assembly, lining up the 4 holes. Secure in place with the supplied 4mm hex bolts and washers (see image) Page | 15...
- Page 16 Disc Brakes Jorvik Tricycles are equipped with disc brakes for maximum reliability whatever the conditions and load. Pulling on the brake levers will engage the brake calliper and apply pressure from the pads to the brake rotor on the wheel. This creates friction slowing the wheel down.
- Page 17 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Final Brake Checks New Brakes Bedding in Procedure Ensure that the brake lever does not pull to the New brakes or brake pads will need to be bedded in for handlebars when brakes are applied. The lever them to be fully effective.
- Page 18 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Suspension Fork Setup Guide When you sit on the tricycle you will notice that the forks compress. This is known as “sag”. The sag should be between 15 and 30% of suspension travel.
- Page 19 How to Use Your Gears The Jorvik Jet-E2 is equipped with the Shimano Nexus 7 speed internal gear system. This is easy to maintain and very few external parts to be serviced or damaged. To change gear, stop pedalling as you move the rotate the gear shifter and start pedalling as soon as the gear is selected.
-
Page 20: Maintenance And Upkeep
Check crank bolts are tight, Jet-E1, JMT3, JMT6, JMT9 and JMT11: With a long handled 8mm hex key apply force clockwise while pushing down on the crank arm in your left hand. It should be between 35-40Nm with a torque wrench or the weight of your body. Small vibrations can cause the bolt to slacken while in use and damage the crank arms (this is not a warranty issue). - Page 21 • Check all wheel nuts, bolts or Quick Release skewers are tight: Jet-E1 rear wheels are to be hand tight (20Nm max) with an 8mm hex key. All other trikes use a 19mm socket and are to be 30Nm. Front hub drives 19mm spanner or socket and to be 35Nm or full weight of a person pushing down.
- Page 22 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Monthly • Check brake pads for wear. • Check tyre tread. • If you have a folding tricycle, check the mechanism is correctly tensioned. If it is not tensioned enough the frame can come under loads that can cause a frame failure.
- Page 23 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle • Hydraulic brakes are to be bled once a year to keep the seals in good order and stop deterioration of the brake fluid. MINERAL OIL ONLY. • Axles are to be removed and greased to stop and galvanic corrosion.
- Page 24 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Cleaning ! ALWAYS DISCONECT THE BATTERY! We recommend using dedicated bicycle cleaning products. Waterless cleaners are the safest to use as the electrical system is found throughout the frame and rear areas. While we do all we can to ensure the system is water resistant the use of pressure washers will force water past the seals on any cabling.
-
Page 25: About Charging
Never charge your battery with a substitute the first few times. charger not designed for your Jorvik Tricycle. Use of an unsuitable charger could result in damage to the battery, To charge the battery, plug the charger into an AC overheating, Fire or explosion. - Page 26 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Battery and Charger Care Please fully charge the battery at least once a month when the E-trike is not in use. Avoid subjecting the battery to high temperatures for a •...
-
Page 27: Removing The Battery
Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Removing the Battery Battery Keys Remove the keys for the battery and store the spare set labelled in a safe place in case of losing both keys, Jorvik tricycles Ltd is not able to deliver replacements. Under basket To remove a battery, insert the key, turn the key 180 degrees to the left (anti-clockwise), then pull the battery towards the back of the trike. - Page 28 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Page | 28...
-
Page 29: Starting The Tricycle
Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle How to Start Up the Tricycle On the battery, switch the power button to Walk Assist Mode the ‘On’ position. Hold down the power The walk mode is operated by tapping the... -
Page 30: Safety
Check your brakes are operating It is the owner’s responsibility to familiarise yourself correctly. with your local laws where you ride your Jorvik tricycle and that applicable laws are complied with. A bedding in period will occur within the first 100 miles of use. - Page 31 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Reverse Mode Our new JET-E2-FH features a reverse gear on the motor. On the right side of the handlebar, you will find a red button. This engages and disengages the reverse gear. When reverse is engaged the button will be slightly recessed.
- Page 32 This is quite normal as can take a little serious injury. practice to overcome. NOTE: We do not recommend using Jorvik tricycles in the rain. Water ingress could damage the battery, motor, or controller. Also avoid cleaning with a pressure washer Page | 32...
- Page 33 Children are highly recommended or damage and seek advice from a cycle mechanic. NOT to ride on any of the Jorvik tricycles E tricycles. It can be dangerous and cause serious injury. Within the UK those aged under 14 years old are not...
-
Page 34: Troubleshooting
Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Troubleshooting Problem Cause Solution Screen plugged in but won’t Possible loose connection Check the battery is turned on and seated turn on Battery not turned on correctly. Check connection under bottom bracket. These can come loose when folded and cable pulled. - Page 35 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Check that gears are aligned correctly. Set shifter to 4th and see if the yellow indicators are lined up on the hub. Clunking from rear axle Bearings worn or over First remove the wheels. Tap the axle with a tightened.
- Page 36 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle should be central between the brake pads. Check the same with the rear brake (removing the rear carrier can assist with access to the brake calliper. Clicking from bottom bracket Worn bottom bracket Sealed bottom bracket unit needs replacing, take to a reputable bicycle shop or mobile mechanic.
- Page 37 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Under where the brake cable exits the lever you will find a wire that goes into the lever body. slacken the grub screw with the hex key. With the 8mm spanner unwind the nut ¼ turn (do this on each side).
- Page 38 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Undo all connections and spray water disperser into the connection and leave unplugged. Towel dry all cables, plugs and tricycle. Store the tricycle in a dry area. It may be tempting to use a hairdryer over the display etc, if the heat is too high it can damage seals and internals.
- Page 39 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle degreaser/water then apply a small amount of chain lubricant wiping the excess with a clean rag. Inspect the cogs on the tricycle and clean with degreaser and rag. Remove any dirt or grime from the cogs and hub/gear shifting assembly.
- Page 40 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Tension the chain and reassemble the parts onto the axle and tighten (a socket or ring spanner is best practice). For the rear chain slacken the 6 frame assembly bolts and pull the frame back and tighten up with a 17mm socket and ring spanner.
- Page 41 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle If there is, then true the wheel with the tool provided or have it trued by a bicycle mechanic. • While the wheel is in the fork put left and right pressure. Look to see if the whole wheel moves but the axle stays in position.
- Page 42 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Wiring Diagram Page | 42...
-
Page 43: Notes
Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Notes: Page | 43... - Page 44 Jorvik JET-E2 Elite Hub Drive Dual Battery Folding Tricycle Jorvik Tricycles Of York, Millfield Industrial Estate Wheldrake, YO19 6NA T: +441904 405338 E: info@jorviktricycles.com www.jorviktricycles.com Page | 44...
