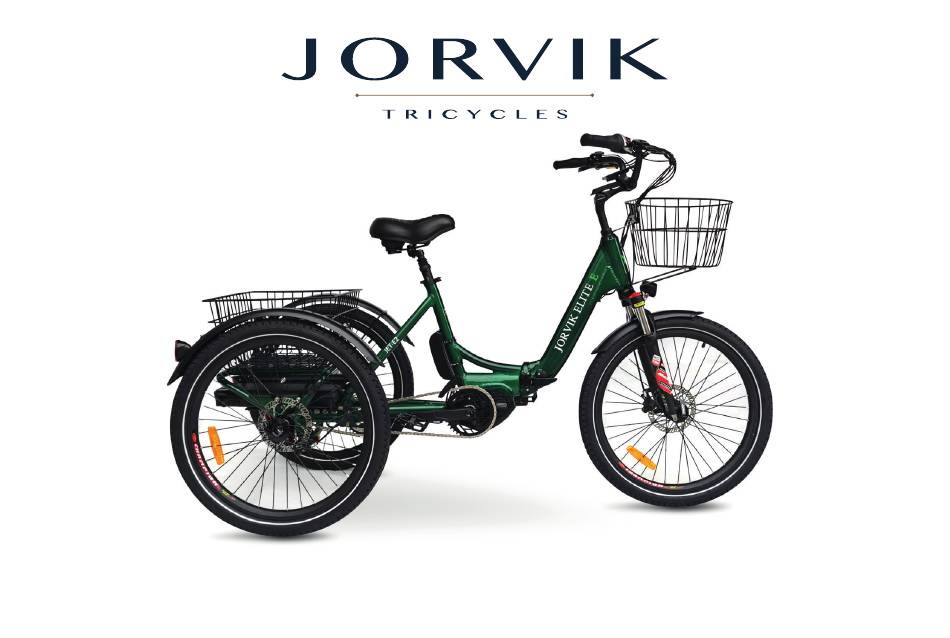

- Page 1 Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle...
-
Page 3: User Manual
User Manual Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle Thank you for purchasing a Jorvik Elite Tricycle “JET Range”. We believe this is the future of transport, not only is it an eco-friendly way of transportation of yourself or goods in the basket but the rider will also reap the benefits of a healthy body and a healthy mind. -
Page 4: Warning
For replacement parts, technical information and warranty assistance, please contact Jorvik Tricycles on 01904 848988 or email info@jorviktricycles.com DO NOT DISASSEMBLE, MODIFY OR REPLACE ANY OF THE ELECTRICAL PARTS. Your insurance policies may not provide coverage for accidents involving the use of the electric... -
Page 5: Table Of Contents
Index Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle User Manual Battery charging Warning How to start up the trike Index How to use the LCD display Product Safety How to assemble this tricycle Additional safety Hand throttle control... -
Page 6: Product
Product Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle... -
Page 7: How To Assemble This Tricycle
How To Assemble This Tricycle Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle Assembly Instructions Your trike has been pre-assembled. It requires only a few simple steps to get it ready for your first ride. 1. Remove the outside carton after cutting the nylon bands and taking off the lid. - Page 8 How To Assemble This Tricycle Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle Assembly Instructions 5. Insert the quick release skewer & turn the skewer adjusting nut clockwise to tighten it. Keep turning the adjusting nut until you see or feel the nut contact the face of the dropout.
- Page 9 How To Assemble This Tricycle Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle Assembly Instructions 7. Also, be sure the movement of the lever isn’t restricted by contact with the fork. 8. All wheels may need to be trued using a spoke key.
- Page 10 How To Assemble This Tricycle Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle Fit Handlebar To Headtube Open the stem lever by pressing down the release catch on the left-hand side and lifting the lever. Loosen the adjuster bolt using a 5mm Allen Key to drop the handlebars and expose the centre stem bolt.
- Page 11 How To Assemble This Tricycle Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle Front Fender Assembly Please attach the new easy fit front fender using the bolt already located at the rear of the forks or in the hardware box, also attach the front light using the same bolt/bracket as shown in the images.
- Page 12 How To Assemble This Tricycle Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle Rear Fender Assembly Fit fender brackets to the axle using the 4 Allen key bolts, then the bracket to the fender using the 2 Allen Key bolts.
- Page 13 How To Assemble This Tricycle Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle Front Basket Assembly...
- Page 14 How To Assemble This Tricycle Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle Rear Basket Assembly Place rear basket onto the axle lining up the holes and tighten the 4 Allen key bolts.
- Page 15 How To Assemble This Tricycle Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle The Seat Make sure that the seat is tight enough so that you can’t twist it out of alignment. Pull the seat clamp handle away from the seat post and slide the seat up to down to adjust it.
- Page 16 How To Assemble This Tricycle Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle Assembly Instructions Use a 15mm spanner to attach and tighten the pedals remember to grease the pedal thread first. Please Note: The pedals are marked “L” for Left and “R”...
- Page 17 Disc Brakes Your Jorvik trike is equipped with disc brakes for maximum reliability. Applying hand pressure to the brake levers will engage the brake pads against the brake rotor, creating friction and slowing down the wheel. The more hand pressure applied to the brake lever, the faster the trike will come to a stop.
- Page 18 How To Assemble This Tricycle Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle Assembly Instructions New Brakes Bed-in Procedure Make sure that the brake lever does not contact the New brakes will require a “bed-in” procedure prior to handlebar when full hand pressure is applied. The contact your first ride, which will ensure the most consistent and point should feel firm and solid.
- Page 19 How To Assemble This Tricycle Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle Front Suspension Travel And Sag Guide Sag is a measurement of the amount of suspension fork travel with the rider stationery in their normal riding position. The Sag depends on the position and weight of the rider and should be between 15% and 30% of the fork’s max travel depending on the intended use and...
- Page 20 Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle Gears Your Jorvik JMT model trike is equipped with 7 speed nexus hub gear driven system. The first gear is for easier and uphill pedalling, and the last gear is for maximum speed on level or downhill terrain.
- Page 21 Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle After receiving your E-trike, please keep the keys Battery Fuse separately, in case of losing both keys, Jorvik Tricycles Ltd The fuse is designed to protect the battery. If the fuse is not able to deliver replacements.
-
Page 22: Hand Throttle Control
Handle Throttle Control Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle The throttle/walk mode is operated by tapping the (-) button on the + - control unit (left hand side of handlebars) until the person walking next to a bike image is displayed, as seen in Image 1. Once that... -
Page 23: About Charging
Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle Charger Recharging The Battery Included with your new Jorvik Trike is a lithium ion battery, The Jorvik battery may be charged while on the trike or along with a charger, which plugs into a standard removed and charged at a location away from the E-trike. -
Page 24: Battery Charging
If you find that your battery • Do not operate the battery/charger if damaged. does not hold a sufficient charge, you should contact Jorvik • Recharge the battery only with a charger specified by Tricycles to order a replacement. -
Page 25: How To Start Up The Trike
How To Start Up The Trike Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle On one of the batteries, switch the power button to ‘on’. (See image 1). To switch between batteries, turn off the one battery you do not wish to use and turn on the battery you do wish to use. - Page 26 How To Start Up The Trike Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle To remove a battery, insert the key, turn the key 180 degrees to the left (anti-clockwise), then pull the battery towards the back of the trike. Once charged, slide back into position and lock by turning the key 180 degrees to the right (clockwise).
-
Page 27: How To Use The Lcd Display
How To Use The LCD Display Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle Hold the power button down on the handlebars until the display turns on. To change the pedal assistance level use the ‘up’ and ‘down’ buttons. -
Page 28: Safety
Jorvik JET-E2 Elite Mid-Drive Dual Battery Electric Folding Tricycle Helmet Mechanical Safety Check Check the condition of your Jorvik trike before every ride. Always wear an approved helmet while riding your Jorvik Make sure no nuts, bolts or accessories are loose, with Tricycle and follow the helmet manufacturer’s instructions... - Page 29 Apply to all Jorvik Tricycles Models Additional Passengers Your First Ride This Jorvik JET model is designed for one rider only. DO NOT carry any additional passengers on the front When you fasten on your helmet and go for your first ride, or rear of the bike.
-
Page 30: Additional Safety
In general, if at any time you notice a crack or bend in Children your bike, stems, forks, or bars of your tricycle, stop riding immediately; take your Jorvik trike to your local bike shop The user of this product acknowledges both an and have them inspect it. -
Page 31: One-Year Parts Warranty
1. We want you to have confidence in any purchase made or general wear and tear (Including Lithium Batteries). from Jorvik Tricycles and we offer a full 12 months parts Damage caused by a non-covered part or by any part warranty from the date of purchase. - Page 32 Unit 6, Hazel Court, Yorvale Business Park, York, YO10 3DR. T: 01904 848988 E: info@jorviktricycles.com www.jorviktricycles.com...
