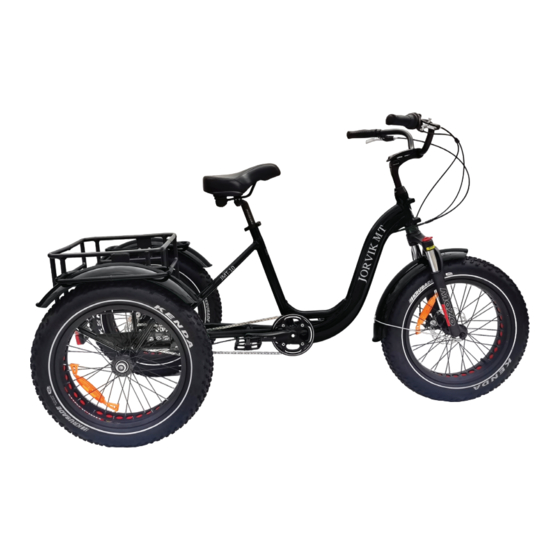

- Page 1 Jorvik JMT10 Low Step Through Mountain Trike...

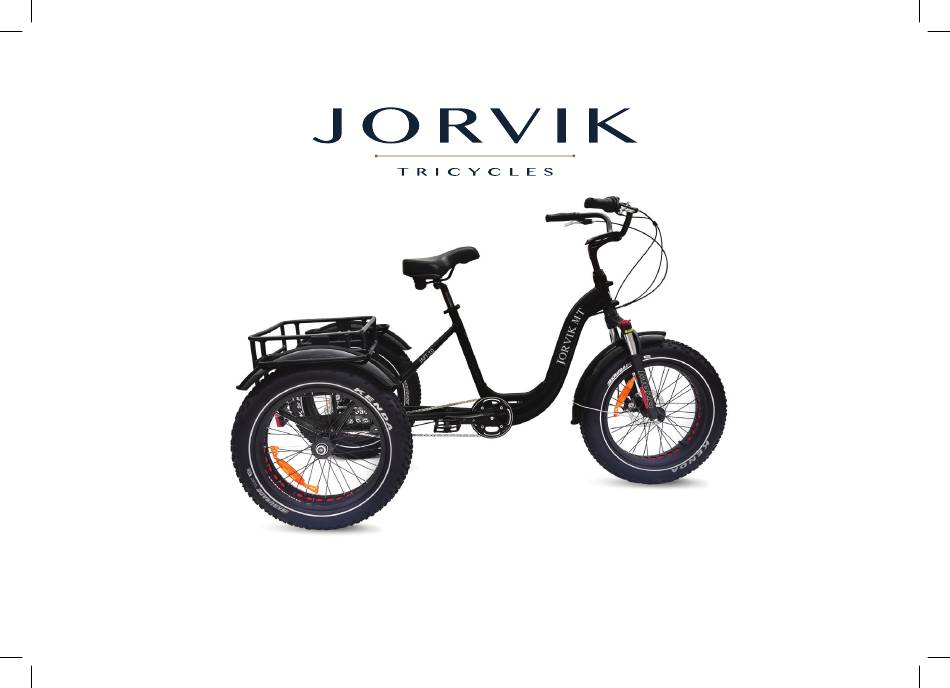

- Page 3 User Manual Jorvik JMT10 Low Step Through Mountain Trike Thank you for purchasing a Jorvik Electric Tricycle JMT Range. We believe this is the future of transport, not only is it an eco-friendly way of transportation with its electric motor that will whisk you along effortlessly and efficiently, the rider will also reap the benefits of a healthy body and a healthy mind.
- Page 4 Product Jorvik JMT10 Low Step Through Mountain Trike...
- Page 5 Index Jorvik JMT10 Low Step Through Mountain Trike User manual Safety Product Additional safety Index One-year parts warranty How to assemble this tricycle...
- Page 6 How To Assemble This Tricycle Jorvik JMT10 Low Step Through Mountain Trike Assembly Instructions Your trike has been pre-assembled. It requires only a few simple steps to get it ready for your first ride. 1. Remove the outside carton after cutting the nylon bands and taking off the lid.
- Page 7 How To Assemble This Tricycle Jorvik JMT10 Low Step Through Mountain Trike Assembly Instructions 5. Insert the quick release skewer & turn the skewer adjusting nut clockwise to tighten it. Keep turning the adjusting nut until you see or feel the nut contact the face of the dropout.
- Page 8 How To Assemble This Tricycle Jorvik JMT10 Low Step Through Mountain Trike Assembly Instructions 6. Next, try closing the lever. Your goal is to tighten the adjusting nut enough so that the lever can be fully closed and closing it requires significant force. You want it to be hard to close, you want to see a lever mark on your hand.
- Page 9 How To Assemble This Tricycle Jorvik JMT10 Low Step Through Mountain Trike Fit Handlebar To Headtube Open the stem lever by pressing down the release catch on the left-hand side and lifting the lever. Loosen the adjuster bolt using a 5mm Allen Key to drop the handlebars and expose the centre stem bolt.
-
Page 10: Front Fender Assembly
How To Assemble This Tricycle Jorvik JMT10 Low Step Through Mountain Trike Front Fender Assembly Please attach the new easy fit front fender using the bolt already located at the rear of the forks or in the hardware box, as shown in the images. (There is now no need for the fender support bars.) - Page 11 How To Assemble This Tricycle Jorvik JMT10 Low Step Through Mountain Trike Rear Fender Assembly...
- Page 12 How To Assemble This Tricycle Jorvik JMT10 Low Step Through Mountain Trike Rear Light...
- Page 13 How To Assemble This Tricycle Jorvik JMT10 Low Step Through Mountain Trike The Seat Make sure that the seat is tight enough so that you can’t twist it out of alignment. Pull the seat clamp handle away from the seat post and slide the seat up to down to adjust it.
- Page 14 How To Assemble This Tricycle Jorvik JMT10 Low Step Through Mountain Trike Assembly Instructions Use a 15mm spanner to attach and tighten the pedals remember to grease the pedal thread first. Please Note: The pedals are marked “L” for Left and “R”...
- Page 15 Disc Brakes Your Jorvik trike is equipped with disc brakes for maximum reliability. Applying hand pressure to the brake levers will engage the brake pads against the brake rotor, creating friction and slowing down the wheel. The more hand pressure applied to the brake lever, the faster the trike will come to a stop.
- Page 16 How To Assemble This Tricycle Jorvik JMT10 Low Step Through Mountain Trike Assembly Instructions New Brakes Bed-in Procedure Make sure that the brake lever does not contact the New brakes will require a “bed-in” procedure prior to handlebar when full hand pressure is applied. The contact your first ride, which will ensure the most consistent and point should feel firm and solid.
- Page 17 How To Assemble This Tricycle Jorvik JMT10 Low Step Through Mountain Trike Front Suspension Travel And Sag Guide Sag is a measurement of the amount of suspension fork travel with the rider stationery in their normal riding position. The Sag depends on the position and weight of the rider and should be between 15% and 30% of the fork’s max travel depending on the intended use and...
- Page 18 Gears Your Jorvik JMT model trike is equipped with 3 speed nexus hub gear driven system. The first gear is for easier and uphill pedalling, and the last gear is for maximum speed on level or downhill terrain. Change gears only while pedalling. When the grip shift nexus gear selector shows ‘1’...
-
Page 19: Mechanical Safety Check
Helmet Mechanical Safety Check Always wear an approved helmet while riding your Jorvik Check the condition of your Jorvik trike before every ride. Tricycle and follow the helmet manufacturer’s instructions Make sure no nuts, bolts or accessories are loose, with for fit, use and care of your helmet. -
Page 20: Weight Capacity
Jorvik JMT10 Low Step Through Mountain Trike Additional Passengers Apply to all Jorvik Tricycles Models This Jorvik JMT model is designed for one rider only. Your First Ride DO NOT carry any additional passengers on the front When you fasten on your helmet and go for your first ride, or rear of the bike. -
Page 21: Additional Safety
In general, if at any time you notice a crack or bend in Children your bike, stems, forks, or bars of your tricycle, stop riding immediately; take your Jorvik trike to your local bike shop The user of this product acknowledges both an understanding and an assumption of the risk involved in and have them inspect it. -
Page 22: Warranty Terms
1. We want you to have confidence in any purchase made or general wear and tear (Including Lithium Batteries). from Jorvik Tricycles and we offer a full 12 months parts Damage caused by a non-covered part or by any part warranty from the date of purchase. - Page 24 Unit 6, Hazel Court, Yorvale Business Park, York, YO10 3DR. T: 01904 848988 E: info@jorviktricycles.com www.jorviktricycles.com...
