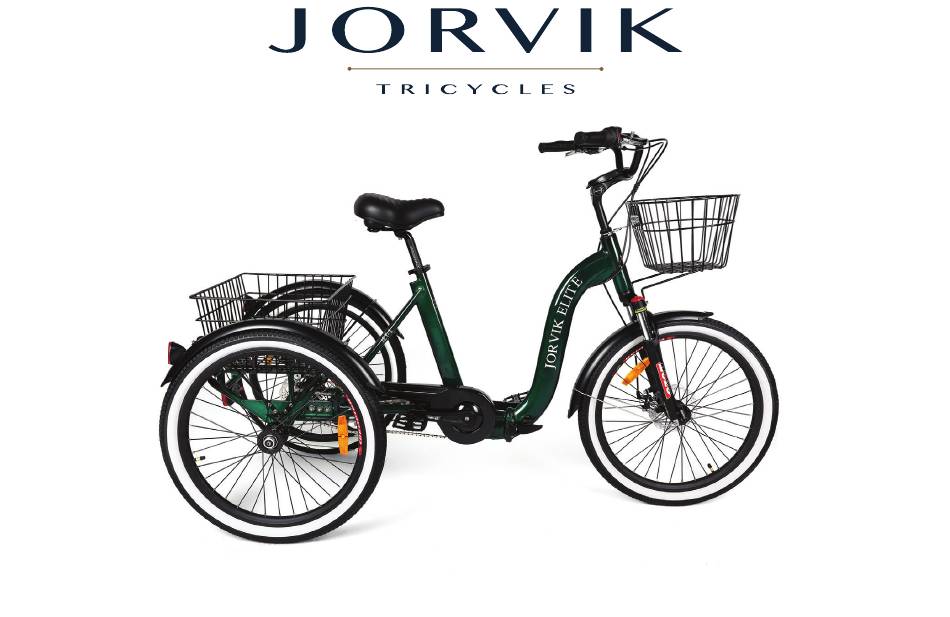

- Page 1 Jorvik JET-1 Elite Low Step Through Folding Tricycle...
- Page 3 User Manual Jorvik JET-1 Elite Low Step Through Folding Tricycle Thank you for purchasing a Jorvik Elite Tricycle “JET Range”. We believe this is the future of transport, not only is it an eco-friendly way of transportation of yourself or goods in the basket but the rider will also reap the benefits of a healthy body and a healthy mind.
- Page 4 Product Jorvik JET-1 Elite Low Step Through Folding Tricycle...
- Page 5 Index Jorvik JET-1 Elite Low Step Through Folding Tricycle User manual Safety Product Additional safety Index One-year parts warranty How to assemble this tricycle...
- Page 6 How To Assemble This Tricycle Jorvik JET-1 Elite Low Step Through Folding Tricycle Assembly Instructions Your trike has been pre-assembled. It requires only a few simple steps to get it ready for your first ride. 1. Remove the outside carton after cutting the nylon bands and taking off the lid.
- Page 7 How To Assemble This Tricycle Jorvik JET-1 Elite Low Step Through Folding Tricycle Assembly Instructions 6. Next, try closing the lever. Your goal is to tighten the adjusting nut enough so that the lever can be fully closed and closing it requires significant force.
- Page 8 How To Assemble This Tricycle Jorvik JET-1 Elite Low Step Through Folding Tricycle Fit Handlebar To Headtube Open the stem lever by pressing down the release catch on the left-hand side and lifting the lever. Loosen the adjuster bolt using a 5mm Allen Key to drop the handlebars and expose the centre stem bolt.
-
Page 9: Front Fender Assembly
How To Assemble This Tricycle Jorvik JET-1 Elite Low Step Through Folding Tricycle Front Fender Assembly Please attach the new easy fit front fender using the bolt already located at the rear of the forks or in the hardware box,... - Page 10 How To Assemble This Tricycle Jorvik JET-1 Elite Low Step Through Folding Tricycle Rear Fender Assembly Fit fender brackets to the axle using the 4 Allen key bolts then the bracket to the fender using the 2 Allen Key bolts.
- Page 11 How To Assemble This Tricycle Jorvik JET-1 Elite Low Step Through Folding Tricycle Front Basket Assembly...
- Page 12 How To Assemble This Tricycle Jorvik JET-1 Elite Low Step Through Folding Tricycle Rear Basket Assembly Place rear basket onto the axle lining up the holes and tighten the 4 Allen key bolts. (See image 1 and 2). Image 1...
- Page 13 How To Assemble This Tricycle Jorvik JET-1 Elite Low Step Through Folding Tricycle Rear Light...
- Page 14 How To Assemble This Tricycle Jorvik JET-1 Elite Low Step Through Folding Tricycle The Seat Make sure that the seat is tight enough so that you can’t twist it out of alignment. Pull the seat clamp handle away from the seat post and slide the seat up to down to adjust it.
- Page 15 How To Assemble This Tricycle Jorvik JET-1 Elite Low Step Through Folding Tricycle Assembly Instructions Use a 15mm spanner to attach and tighten the pedals remember to grease the pedal thread first. Please Note: The pedals are marked “L” for Left and “R”...
-
Page 16: Disc Brakes
Disc Brakes Your Jorvik trike is equipped with disc brakes for maximum reliability. Applying hand pressure to the brake levers will engage the brake pads against the brake rotor, creating friction and slowing down the wheel. The more hand pressure applied to the brake lever, the faster the trike will come to a stop. - Page 17 How To Assemble This Tricycle Jorvik JET-1 Elite Low Step Through Folding Tricycle Assembly Instructions New Brakes Bed-in Procedure Make sure that the brake lever does not contact the New brakes will require a “bed-in” procedure prior to handlebar when full hand pressure is applied. The contact your first ride, which will ensure the most consistent and point should feel firm and solid.
- Page 18 How To Assemble This Tricycle Jorvik JET-1 Elite Low Step Through Folding Tricycle Front Suspension Travel And Sag Guide Sag is a measurement of the amount of suspension fork travel with the rider stationery in their normal riding position. The Sag depends on the position and weight of the rider and should be between 15% and 30% of the fork’s max travel depending on the intended use and...
- Page 19 Gears Your Jorvik JET model trike is equipped with 3 speed nexus hub gear driven system. The first gear is for easier and uphill pedalling, and the last gear is for maximum speed on level or downhill terrain. Change gears only while pedalling. When the grip shift nexus gear selector shows ‘1’...
-
Page 20: Mechanical Safety Check
Helmet Mechanical Safety Check Always wear an approved helmet while riding your Jorvik Check the condition of your Jorvik trike before every ride. Tricycle and follow the helmet manufacturer’s instructions Make sure no nuts, bolts or accessories are loose, with for fit, use and care of your helmet. -
Page 21: Your First Ride
Apply to all Jorvik Tricycles Models Your First Ride This Jorvik JET model is designed for one rider only. DO NOT carry any additional passengers on the front When you fasten on your helmet and go for your first ride, or rear of the bike. -
Page 22: Additional Safety
In general, if at any time you notice a crack or bend in Children your bike, stems, forks, or bars of your tricycle, stop riding immediately; take your Jorvik trike to your local bike shop The user of this product acknowledges both an and have them inspect it. -
Page 23: Warranty Terms
1. We want you to have confidence in any purchase made or general wear and tear (Including Lithium Batteries). from Jorvik Tricycles and we offer a full 12 months parts Damage caused by a non-covered part or by any part warranty from the date of purchase. - Page 24 Unit 6, Hazel Court, Yorvale Business Park, York, YO10 3DR. T: 01904 848988 E: info@jorviktricycles.com www.jorviktricycles.com...
