FP4043 Series
QUICK START GUIDE
Product Code:
FP4043T: 4.3", 480 x 272 pixels, WQVGA color TFT with 4-wire
analog resistive touch screen with 2 serial ports
port & 1 USB Host port
FP4043TN: 4.3", 480 x 272 pixels, WQVGA color TFT with 4-wire
analog resistive touch screen with 2 serial ports
port, one USB Host port, 1 Ethernet port & SD card slot
FP4043T-E: 4.3", 480 x 272 pixels, WQVGA color TFT with 4-wire
analog resistive touch screen with 2 serial ports
port & 1 USB Host port. It supports 1 expansion module.
FP4043TN-E: 4.3", 480 x 272 pixels, WQVGA color TFT with 4-wire
analog resistive touch screen with 2 serial ports
port, one USB Host port, 1 Ethernet port & SD card slot. It supports
1 expansion module
[# Note: For more information about #, please refer specifications
section.]
GETTING STARTED
User should follow the given sequence to configure and
use any Flexipanels series unit:
1. Install FlexiSoft Software.
2. Create a PZM application using FlexiSoft software.
3. Connect programming cable.
4. Download firmware i.e. driver for the HMI.
5. Download application.
6. Now FP unit is ready to use in the system.
SPECIFICATIONS
Power (Base)
Power
(With 1 Expansion)
Display
LEDs
RAM Memory
User Application
Internal Datalog
eMMC
RTC
Expansion
# , one USB Device
Weight
Panel Cutout
Product
# , one USB Device
Dimensions
Communication
Serial Port
USB Ports
# , one USB Device
Ethernet
SD Card
, one USB Device
#
Environment & Approvals
Operating
Temperature
Storage
Temperature
Humidity
Shock
Vibration
EMC
Protection
APPROVALS
[ Note: FP4043Tx-E support one DB9 port that supports RS232 & RS485
#
levels on different pins. "Y" type cable can be used for separate RS232 and
RS485 levels simultaneously.]
(Part No.: REPL Part# EC-Y-FP)
[*Note: For UL, operating temperature range is 0° to 50°C.]
24VDC(±15%), 140mA, 3.36W (T-E module)
24VDC(±15%), 160mA, 3.84W (TN-E module)
24VDC(±15%), 190mA, 4.56W (T-E module)
24VDC(±15%), 210mA, 5.04W (TN-E module)
4.3" WQVGA color TFT with 4-wire analog resistive
touch screen
1
512MB
Up to 1GB that includes user application, alarms,
retentive memory and logic memory
50 MB
4GB
Built-in, date and time function
It support 1 expansion slot
Approx. 400gm
111.00mm(W) x 80.00mm(H)
120.00mm(W) x 89.0mm(H) x 31.5mm(D)
1 x RS232, RS485 #
1 USB Device and 1 USB Host
1 Ethernet Port
Micro SD [High Capacity (4GB to 32GB)]
Speed Class:
[While inserting and removing SD card, please make
sure to TURN OFF the power to the unit.]
-10° to 60°C*
-20° to 85°C
10 to 90% (Non-Condensing)
IEC 60068-2-27
25g, 11ms, 6 shocks per axis, total 18 shocks (X, Y,
Z)
IEC 60068-2-6
5 to 150Hz, 3g peak (X, Y, Z)
EN 55011 : 2009/A1 : 2010
EN 61131-2 : 2007
EN 61000-6-2 : 2005/AC : 2005
EN 61000-6-4 : 2007/A1 : 2011
IP66 for front panel mounting
CE, UL (Class1 Div2) & RoHS

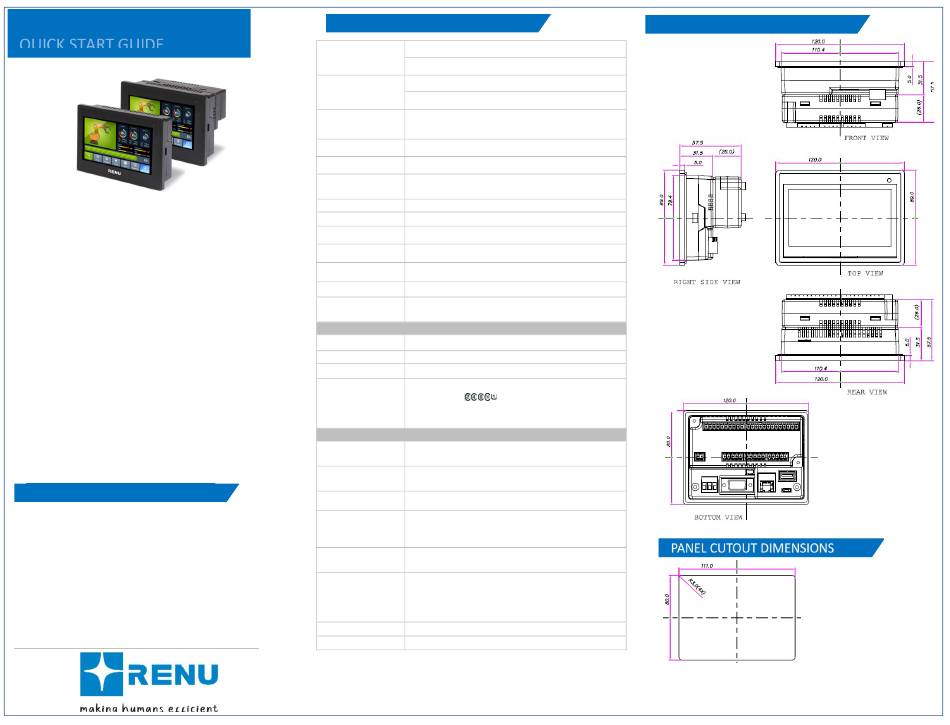

PRODUCT DIMENSIONS
Panel Cutout Dimensions: 111.00 x 80.00mm,
Panel Thickness: Maximum 6mm
Mounting Clamps: 4
