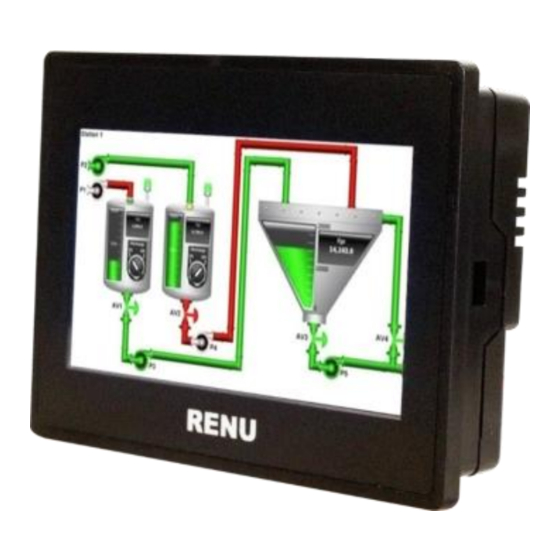

Renu Electronics FP4043TN-E Quick Start Manual

FP4043TN-E
QUICK START GUIDE
Product Code:
FP4 043 TN- E
Series
Display Size
Supports Ethernet
Supports Expansion

GETTING STARTED

User should follow the given sequence to configure and use any
Flexi Panel series unit:
Install FlexiSoft Software.
Create a PZM application using FlexiSoft software.
Connect programming cable.
Download Firmware i.e. driver for the HMI.
Download application.
Now FP unit is ready to use in the system.
For More Information, visit
https://www.renuelectronics.com

SPECIFICATIONS

24VDC (+/- 20%, -15%), 140mA, 3.36W
Power (without Expansion)
250mA, 9.36W (with 1 Expansion)
4.3" WQVGA color TFT with 4-wire
Display
analog resistive touch screen
1
LEDs
RAM Memory 512MB
Up to 1GB that includes user application,
User Application data log, alarms, retentive memory and
logic memory
eMMC 4GB
RTC Built-in, date and time function
Expansion It support 1 expansion slot
Weight Approx. 400gm
Panel Cutout (mm) 111.00(W) x 80.00mm(H)

Product Dimensions

120.00(W) x 89.0mm(H) x 31.5mm(D)
(mm)
Communication
COM1/COM2* RS232/RS485
USB Ports 1 USB Device and 1 USB Host
Ethernet 1 Ethernet Port
Micro SD [High Capacity (4GB to 32GB)]
Speed Class:
SD Card
[While inserting and removing SD card, please
make sure to TURNOFF the power to the unit.]
Environment & Approvals
Operating Temperature -10° to 60°C*
Storage Temperature -20° to 85°C
10 to 90% (Non-Condensing)
Humidity
IEC 60068-2-27
Shock 25g, 11ms, 6 shocks per axis, total 18
shocks (X, Y, Z)
IEC 60068-2-6
Vibration
5 to 150Hz, 3g peak (X, Y, Z)
EN 55011 : 2009/A1 : 2010
EN 61131-2 : 2007
EMC
EN 61000-6-2 : 2005/AC : 2005
EN 61000-6-4 : 2007/A1 : 2011
Protection
IP66 for front panel mounting
APPROVALS
CE, UL & RoHS
[*COM1 / COM2: This unit has one DB9 COM port that can be used as COM1 (RS232)
and / or COM2 (RS485/RS422). Special "Y" cable can be provided, if both the ports
are to be used simultaneously.]
(Part No.: REPL Part# EC-Y-FP)
°
[Note: *For UL, operating temperature range is 0 to 50

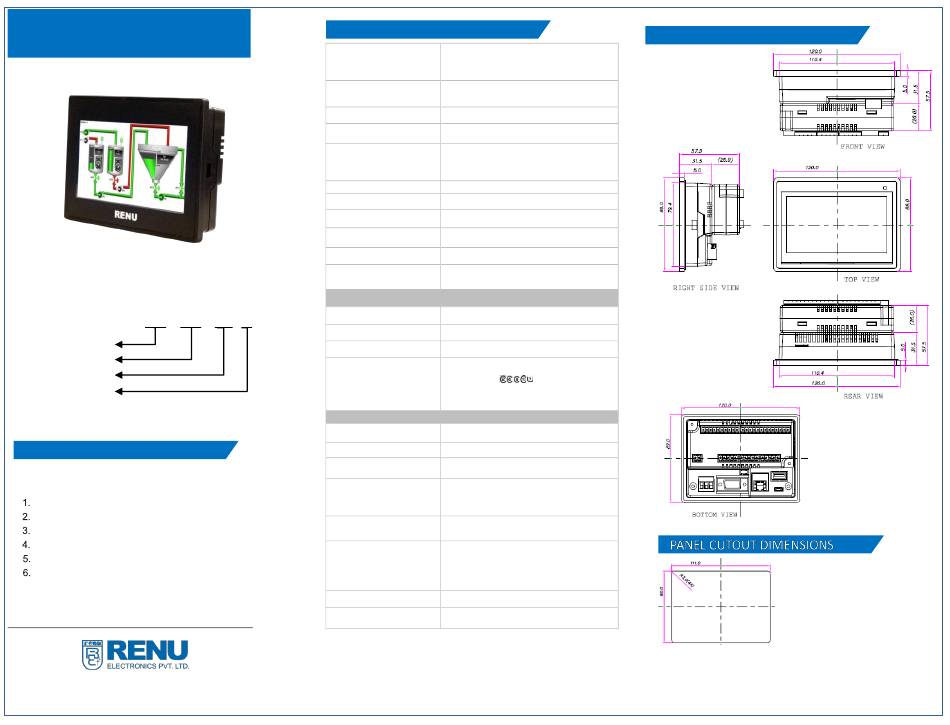

PRODUCT DIMENSIONS
[Panel Cutout Dimensions: 111.00 x 80.00mm,
Panel Thickness: Maximum 6mm, Tolerance: +/-0.2mm]
°C
.]
