Summary of Contents for Renu Electronics FlexiPanels FP4 Series

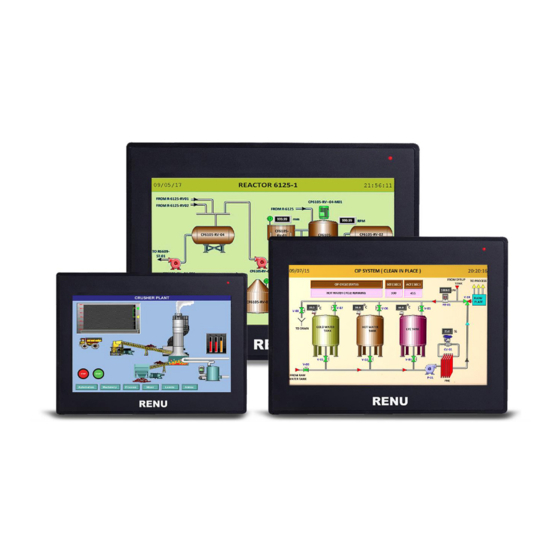

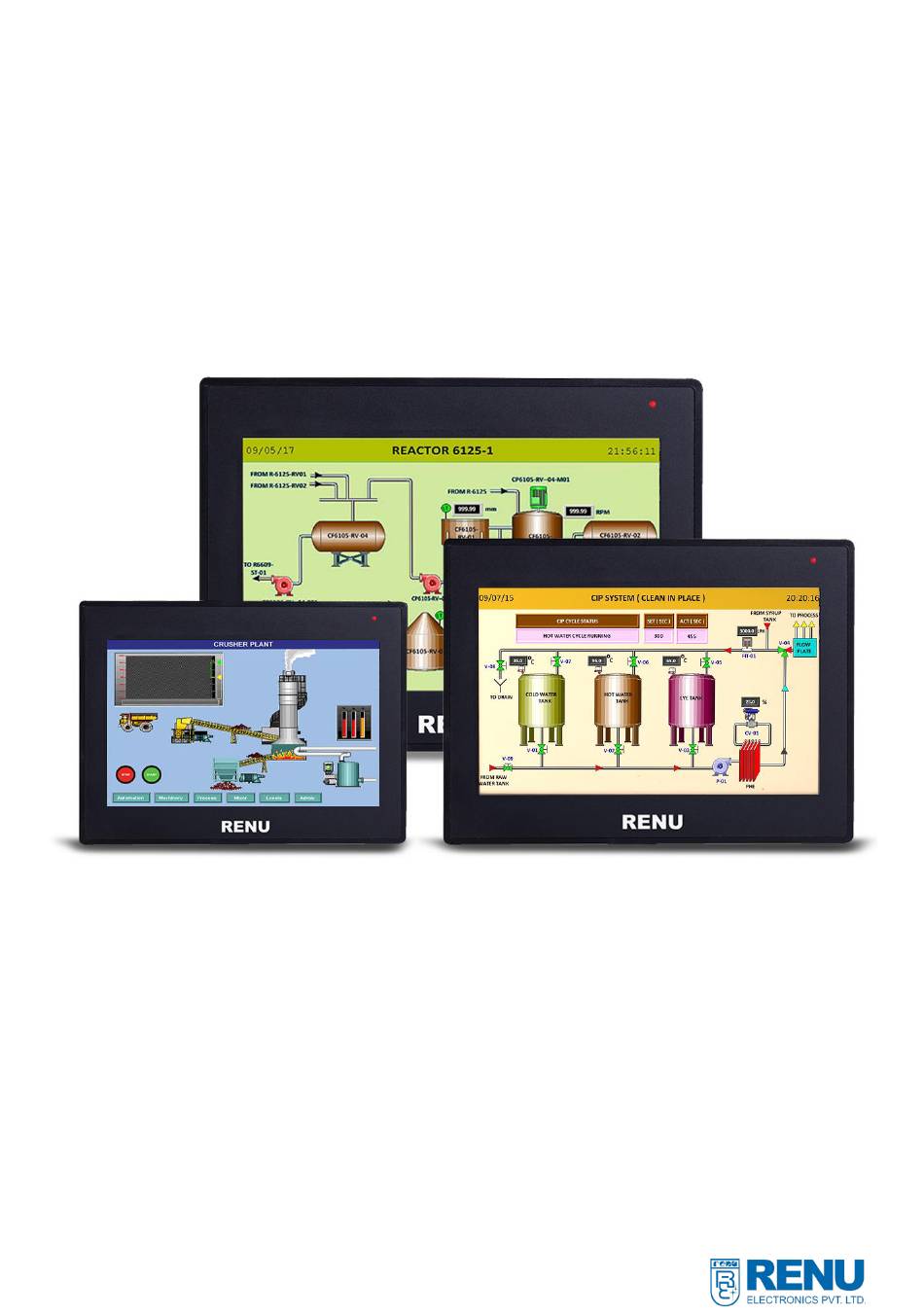

- Page 1 User Manual FlexiPanels Advance HMI ® FP4 Series...
-
Page 2: Table Of Contents
..................................13 ................................ 14 CCESSORIES ................................ 14 ROGRAMMING ABLE ..............................14 OMMUNICATION ABLE DEFAULT PRODUCT SETTING ..........................15 ....................... 15 NVIRONMENTAL PECIFICATIONS AND PPROVALS REVISION HISTORY ............................. 16 NOTES ................................17 Page 2 of 17 © Renu Electronics Pvt. Ltd. -
Page 3: Introduction
This user manual gives detailed information regarding the hardware specifications, operating conditions, installation, mounting and wiring. All the information published in this manual is produced and governed by Renu Electronics Pvt. Ltd. and is protected by Indian Copyright Act. Before you start ... -
Page 4: Safety Precautions
This section of the manual provides information which is critical regarding safety and therefore the user is advised to go through the information in detail before installing the product. User may contact Renu Electronics technical support team at support@renuelectronics.com for any specific question(s) related to safety. -
Page 5: Product Overview
Make sure that metal cutting does not enter any component already installed in the panel. Product Dimensions This section of the manual provides dimensional details of FP4 series products. All the dimensions shown below are measured in mm. Page 5 of 17 © Renu Electronics Pvt. Ltd. - Page 6 FlexiPanels Advance HMI ® Page 6 of 17 © Renu Electronics Pvt. Ltd.
-
Page 7: Minimum Clearances
The optimum method for grounding electronic equipment is to ground it separately from other high-power systems and to ground more than one unit of electronic equipment with a single-point ground. Following marked terminal is provided with the unit for grounding: Page 7 of 17 © Renu Electronics Pvt. Ltd. -
Page 8: Product Specifications
Size: 12.1” SVGA color TFT with 4-wire analog resistive touch screen Resolution: 800 x 600pixels Brightness: 500cd/m Backlight life: 70,000Hrs. Size: 15” XGA color TFT with 4-wire analog resistive touch screen Resolution: 1024 x 768pixels Brightness: 400cd/m Backlight life: 50,000Hrs. Page 8 of 17 © Renu Electronics Pvt. Ltd. -
Page 9: Cpu, Memory And Power Supply
Supported speed classes are as follows: While inserting or removing SD card, the device power must be turned off. The user must take periodic backup of logged data to avoid loss of data. Page 9 of 17 © Renu Electronics Pvt. Ltd. -
Page 10: Communication Interfaces
DB9 female port and 10.1”, 12.1” and 15” models support two DB9 female ports. Pin number Signal TX+(RS422/RS485) TXD(RS232) RXD(RS232) RX+(RS422/RS485) TX-(RS422/RS485) RX-(RS422/RS485) 7” model support one terminal block port (COM 1). Pin number Signal Page 10 of 17 © Renu Electronics Pvt. Ltd. - Page 11 If user wants to connect different devices on RS232 and RS422 / RS485 levels, simultaneously with 4.3” HMI, then he must use ‘Y’ type cable. Page 11 of 17 © Renu Electronics Pvt. Ltd.
-
Page 12: Ethernet Port
FP4 products support one USB Host port that connects to USB 2.0 compatible pen drives. The pen drive can be used as external memory for data logging and transferring user application or firmware to the unit. Pin number Signal Page 12 of 17 © Renu Electronics Pvt. Ltd. -
Page 13: Y Type Cable
Ethernet models of FP4 products support one SD card slot. SD card can be used as external memory for data logging and transferring user application or firmware to the unit. MicroSD HC card with capacity between 4GB to 32GB is supported. Following speed classes are supported: Page 13 of 17 © Renu Electronics Pvt. Ltd. -
Page 14: Accessories
Micro USB Part number: PC-USBAB-00-Micro [Note: PC-USBAB-00: 2M cable, PC-USBAB-05: 5M cable, PC-USBAB-10: 10M cable] Communication Cable RS-232 Part number: IBM0909-1-00 [Note: IBM0909-1-00: 2M cable, IBM0909-1-05: 5M cable, IBM0909-1-10: 10M cable] Page 14 of 17 © Renu Electronics Pvt. Ltd. -
Page 15: Default Product Setting
EN 61000-6-2 : 2005/AC : 2005 EN 61000-6-4 : 2007/A1 : 2011 Protection IP66 for front panel mounting Yes (Class I Division 2) RoHS [Note: For UL Operating Temperature range is 0-50°C] Page 15 of 17 © Renu Electronics Pvt. Ltd. -
Page 16: Revision History
3. Added Default Product Settings Ordering part number of 15" HMI is changed from 13/12/2018 FP4150 to FP4151 Renu Electronics reserves the right to change or discontinue specifications and features without prior notice. Page 16 of 17 © Renu Electronics Pvt. Ltd. -
Page 17: Notes
FlexiPanels Advance HMI ® NOTES Page 17 of 17 © Renu Electronics Pvt. Ltd.
