weintek cMT3072XP Series Installation Instructions

cMT3072XP series

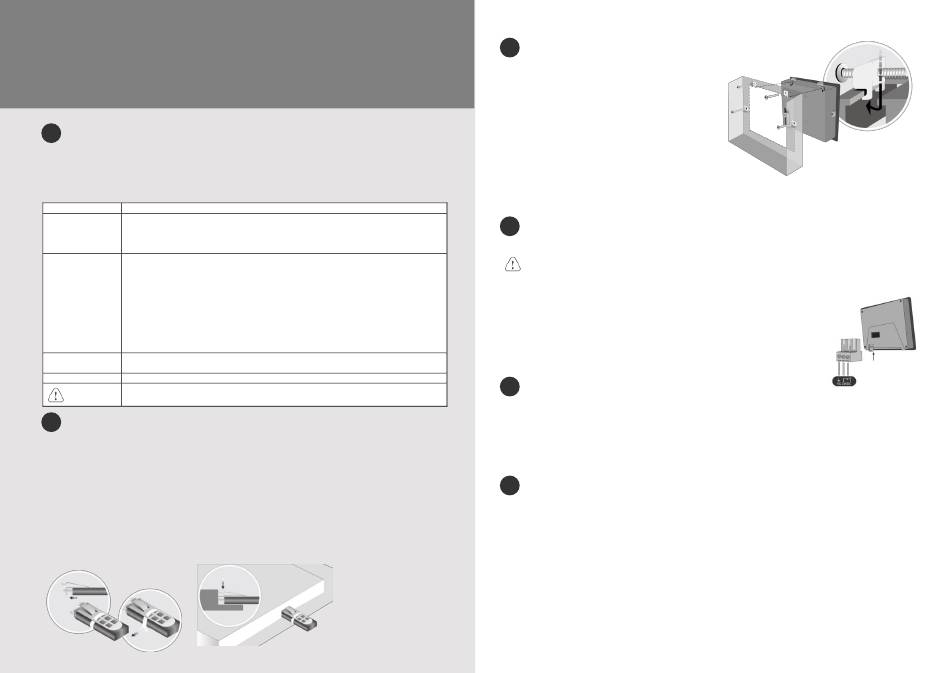

1 Installation and Startup Guide
This document covers the installation of cMT3072XP Series HMI, for the detailed specifications and
operation, please refer to Datasheet, Brochure and EasyBuilder Pro User Manual. Please read all
warnings, precautions, and instructions on the device carefully before use.
Install Environment:
NEMA Rating The HMI product is NEMA 4 rated (Indoor Only).
The HMI product has been tested to conform to European CE requirements. This
Electrical means that the circuitry is designed to resist the effects of electrical noise. This
Environment does not guarantee noise immunity in severe cases. Proper wire routing and
grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the operating
limits are followed. Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
Environmental flammable gases, vapors or dusts.
Considerations (3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5) For use in Pollution Degree 2 Environment and dry location.
(6) Relative Humidity: 10% ~ 90% (non-condensing)
Cleaning Clean the device using dry cloths. Do not use liquid or spray detergents for
Considerations cleaning.
IP Rating IP 66
Protection impairment if used in a manner not specified by the manufacturer.
Warning
Déficit de protection si utilisé d'une manière non spécifiée par le fabricant.
Unpacking the Unit
2
Unpack and check the delivery. If damage is found, please contact the supplier.
NOTE: Place the operator panel on a stable surface during installation. Dropping it or letting it
fall may cause damage.
The package includes:
(1) Installation Instruction, 2-sided A4 *1 (2) Human Machine Interface *1 (3) Power Connector *1
(4) Brackets & Screws *1 pack (5) USB Stick Clamp & Tying Strap *1
USB Stick Clamp Usage
Combining the USB Stick with the clamp and the tying strap can prevent USB stick from disconnecting
with HMI when strong vibration is present.
1. Insert the USB connector to the clamp and tie them together with the tying strap.
2. Press the spring and insert the USB stick into HMI.
Installation Instruction
3
Installation Instructions
Use a control box that provides enough stiffness.
Cutout Dimension: 192 mm x 138 mm. Secure the
operator panel in position, using all the fastening holes
and the provided brackets and screws. Screw Torque:
2.6 ~ 3.9 lbf.in. (For reaching waterproof effect and
preventing the panel from being deformed.)
Plan for adequate space around the unit and inside the
enclosure, for ventilation and cables. Consider the
heat from other devices inside the enclosure. The
ambient temperature around the unit must be 0 ~ 55°C
Minimum required clearances (along the overlay): Top
/ Bottom / Sides 15 mm
Maximum panel thickness: 4.5 mm
4 Power Connections
Power Connector Specifications:
Wire AWG: 24~12
Wiring Conductor Minimum Temperature: 75°C
Screw Torque: 4.5 lbf-in (max.)
Copper conduct only.
NOTE:
1. Connect positive DC line to the '+' terminal and the DC ground to the
'-' terminal.
2. When downloading project using a USB cable, do not connect HMI
with PLC and PC simultaneously, for electric potential difference may
result in damage to HMI or PC.
5 System Settings
When the HMI powers up and displays an image, tap the round Start Button in the upper-left corner to
open the Setting page. To configure the network, go to the Network tab, tap "configure," and a login
window will appear. The settings can be modified by entering the system password (default: 111111).
In the Setting page, you can see device information, configure general settings, set HMI
Time/Date/Name, and more.
6 EasyBuilder Pro Software Settings
Launch EasyBuilder Pro software, select your project file, press F7 shortcut key to open the download
dialog box: Select Ethernet > IP tab > Enter your HMI IP > Click Download to download this project file
to HMI.
Using screensaver and backlight saver is recommended in order to avoid image persistence caused
by displaying the same image on HMI for a long time.
(Please refer to EasyBuilder Pro User Manual for software operation details.)
Spécifications du connecteur d'alimentation:
AWG de fil: 24 ~ 12
Température minimale du conducteur de câblage: 75°C
Couple de vis: 4.5 lbf-in (max.)
Conducteur en cuivre seulement
