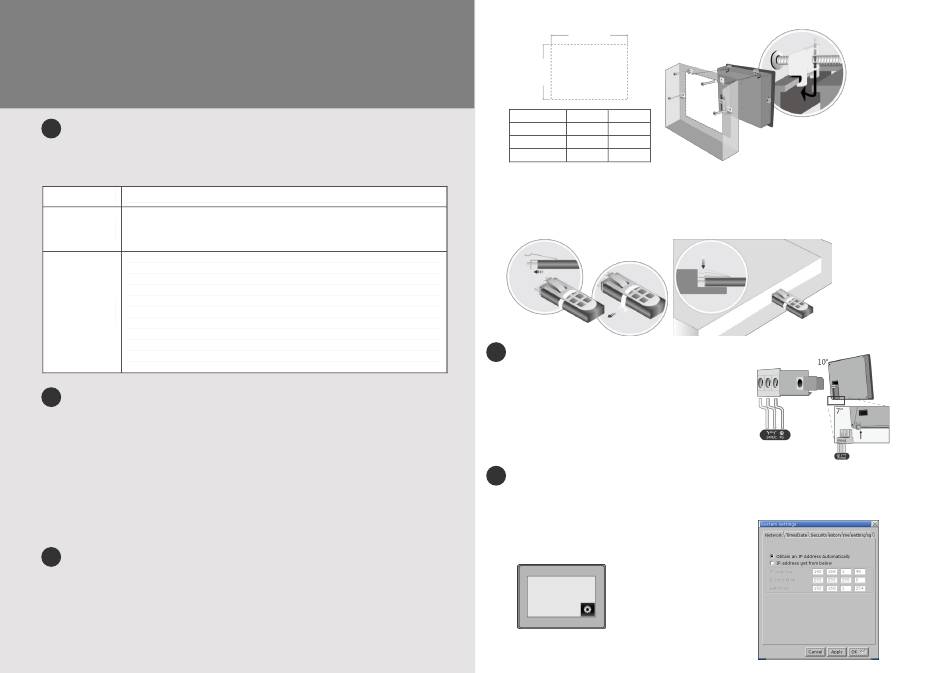

MT6000/8000iE series
1

Installation and Startup Guide

This document covers the installation of MT6000/8000iE Series HMI, for the detailed specifications
and operation, please refer to Brochure and EasyBuilder Pro User Manual.

Install Environment:

NEMA Rating
The
MT6000/8000iE
Series HMI is NEMA 4 rated (Indoor Use Only).
The
MT6000/8000iE
Series has been tested to conform to European CE
Electrical
requirements. This means that the circuitry is designed to resist the effects of
Environment
electrical noise. This does not guarantee noise immunity in severe cases. Proper
Wire Routing and grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the operating
limits are followed. Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2)
Do not operate the unit in areas subject to explosion hazards due to
flammable gases, vapors or dusts.
Environmental
(3) Do not install the unit where acid gas, such as SO2 exists.
Considerations
(4)
This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5)
Conform to UL508 (ISBN 0-7629-0404-6) machine safety for use in
Pollution Degree 2 Environment.
(6)
Relative Humidity: 10% ~ 90% (non-condensing)
2

Unpacking the Unit

Unpack and check the delivery. If damage is found, notify the supplier.
NOTE:
Place the operator panel on a stable surface during installation. Dropping it or letting it fall may
cause damage.
(1) Installation Instruction, 2-sided A4 *1
(2) Human Machine Interface *1
(3) Power Connector *1
(4) Brackets & Screws *1 pack
(5) USB Stick Clamp & Tying Strap *1
(6) Fuse 1.25A/250V 5*20mm *1
Installation Instructions
3
Secure the operator panel in position, using all the fastening holes and the provided brackets
and screws. Screw Torque: 2.6 ~ 3.9 lbf.in. (For reaching waterproof effect and preventing the panel
from being deformed.)
Installation Instruction
4
5
(A)
Cutout
(B)
Type
A(mm)
B(mm)
MT6070iE
192
138
MT8070iE
192
138
MT8100iE
260
202

USB Stick Clamp Usage

Combining the USB Stick with the clamp and the tying strap can prevent USB stick from disconnecting
with HMI when strong vibration is present.
1. Insert the USB connector to the clamp and tie them together with the tying strap.
2. Press the spring and insert the USB stick into HMI.

Power Connections

NOTE:
1. Connect positive DC line to the '+' terminal and the DC
ground to the '-' terminal.
2. When downloading project using a USB cable, do not
connect HMI with PLC and PC simultaneously, for
electric potential difference may result in damage to HMI
or PC.

System Settings

When HMI is powered up and displays image,
click the system setting button.
(Default System Password: 111111)
It is necessary to connect the HMI to
your network through a RJ-45 cable.
(N/A for MT6070iE)
Go to the Network tab, you may choose
to auto get DHCP IP, or designate your
own IP.
