Summary of Contents for CatLink Scooper Pro-X

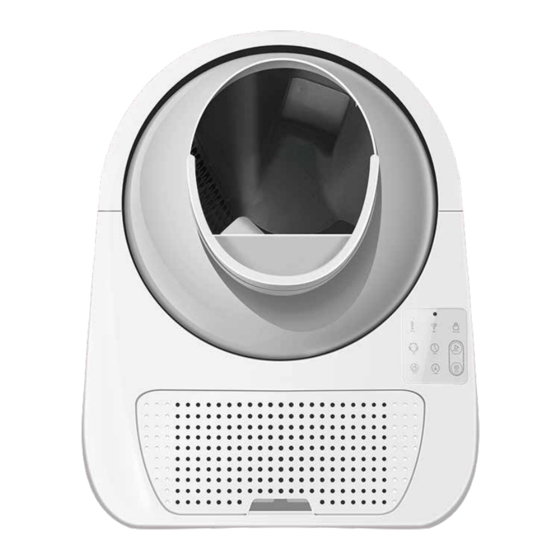

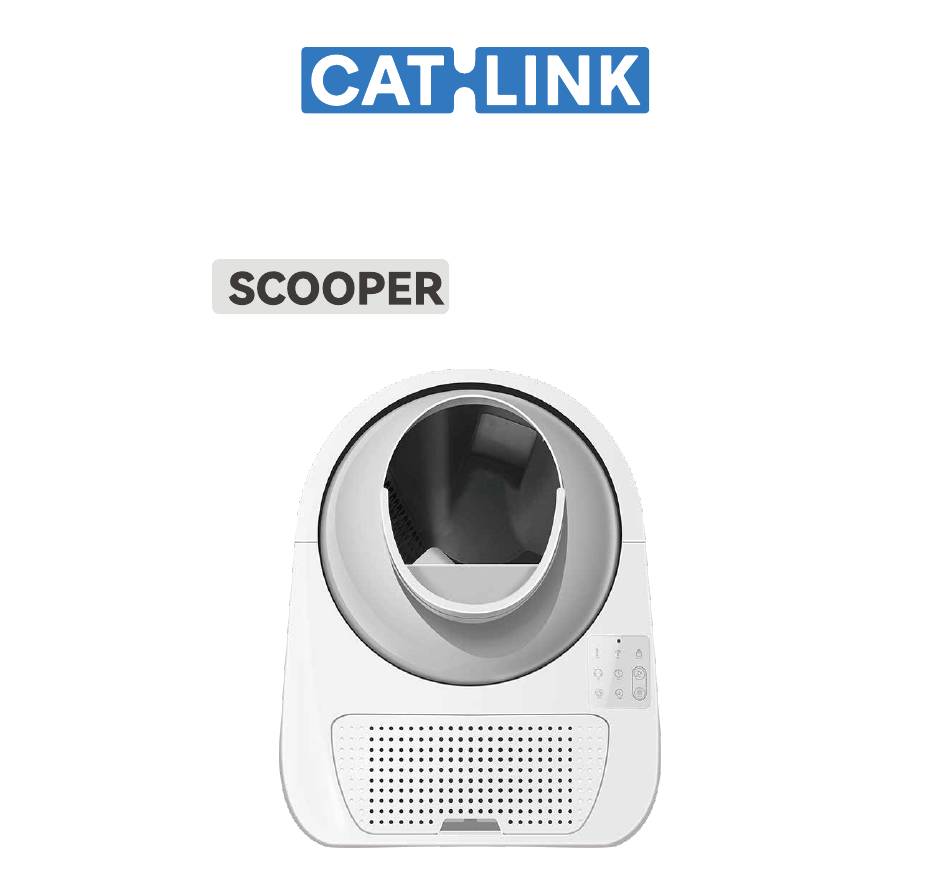

- Page 1 AI Cat Litter Box（Pro - X） User Manual Toll free: +1 833 440 2772 Email: support@catlink.cn...
- Page 2 Toll free: +1 833 440 2772 Email: support@catlink.cn...
- Page 3 Thank you for purchasing a CATLINK AI Cat Litter Box Scooper Pro - X! CATLINK aims to develop products that keep your pets happy and make your life easier. This manual will help you get the most out of your Scooper Pro - X. We will guide you through the setup process, as well as provide you with useful tips and advices.
- Page 4 Never allow children or others to play with the Scooper. Never use an external power supply other than the one provided with the unit. If the external power supply is damaged, please contact us for a replacement. Toll free: +1 833 440 2772 Email: support@catlink.cn...
-
Page 5: Table Of Contents
4.Cat Litter 【Control Panel - Button Functions】 1.Control Panel 2.Button Functions 【Indicator Lights】 【Working Mode】 【Protection Mechanism】 【Replace All Cat Litter】 【Cleaning and Attentions】 【Troubleshooting】 【Accessories】 【Product Specifications】 【Compare CATLINK Models】 【Customer Service】 Toll free: +1 833 440 2772 Email: support@catlink.cn... -
Page 6: Product Structure
【Product Structure】 Cover Night Light Globe Handle Control Panel UV Sterilization Waste Drawer Base Carbon Filter Box Power Input Toll free: +1 833 440 2772 Email: support@catlink.cn... -
Page 7: Packing List
Suitable for Bentonite Cat Litter Mixed Cat Litter The carbon fitter box has been placed in the waste box. CATLINK recommends taking this part out every month and exposing it to the sun, and replacing it every 2 months. Carbon Filter Box Toll free: +1 833 440 2772 Email: support@catlink.cn... -
Page 8: Setting Up Your Scooper Pro
(must not be touching any walls), and there is no other objects are placed on the top. Make sure that the unit is close to the Wi-Fi signal and far away from electrical appliances with strong interference. Toll free: +1 833 440 2772 Email: support@catlink.cn... -
Page 9: Power And Initial Test Cycle
Plug the small end of the power supply into the power input at the back of the Base. Then plug the adapter into a wall outlet. The unit will perform a test cycle every time it is plugged in. DO NOT touch the unit or buttons during this process. It takes about 3 minutes. Toll free: +1 833 440 2772 Email: support@catlink.cn... -
Page 10: Wifi Connection
4) Please use 2.4GHz WIFI, 5GHz WIFI is not supported, as well as hotels, airports, etc. that require special certification of WIFI. Download the CATLINK APP in the application market of your phone or scan the QR code. Register your account in the app and log in. ( Please authorize location, please turn on GPS for Android. ) On the DEVICE page, click the ‘+’... - Page 11 Please turn off the power, give it a try one more time. Please read the NOTE under the title [WIFI Connection] of this chapter, to ensure that there are no errors in the process. If the connection is unsuccessful, please feel free to contact us. (Toll free:+1 833 440 2772, Email:support@catlink.cn ) Toll free: +1 833 440 2772 Email: support@catlink.cn...
-
Page 12: Cat Litter
If you are using a litter alternative not listed here, please contact Customer Service to make sure you are using a compatible litter. Congratulations! Your Scooper Pro - X is now ready to use. Toll free: +1 833 440 2772 Email: support@catlink.cn... -
Page 13: Control Panel - Button Functions
【Control Panel - Button Functions】 1.Control Panel Error Indicator WIFI Indicator Panel lock Indicator Auto Mode Indicator Timer Mode Indicator Clean/ Pause Button Manual Mode Indicator Empty Mode Indicator Mode Button Toll free: +1 833 440 2772 Email: support@catlink.cn... -
Page 14: Button Functions
Mode Switch means that the WIFI pairing has been Clean/Pause buttons, completed. release them after WIFI Connection hearing beeps, enter the WIFI pairing mode, and complete the pairing with the CATLINK APP Toll free: +1 833 440 2772 Email: support@catlink.cn... -
Page 15: Indicator Lights
Error + Panel Lock Under Motor stalled protection, Flashing Slow the unit suspends operation. WIFI not connected WIFI WIFI connected Flashing WIFI pairing Panel Lock off Panel Lock Panel Lock On Toll free: +1 833 440 2772 Email: support@catlink.cn... -
Page 16: Working Mode
Manual control to start and pause cleaning. Only after the WIFI pairing is successful, you can set the time for Timer regular cleaning on the APP. Empty Empty the cat litter in the Globe. Toll free: +1 833 440 2772 Email: support@catlink.cn... -
Page 17: Protection Mechanism
This protection can only be lifted after human intervention. The Globe will stop rotating when the motor resistance suddenly Motor Stalled Level 4 increases during the rotation. This protection can only be cancelled with human intervention. Toll free: +1 833 440 2772 Email: support@catlink.cn... -
Page 18: Replace All Cat Litter
Waste Drawer back to its original position. return to its original position. Add new cat litter, below the MAX mark, then click the Clean / Pause button to clean once to smooth the cat litter. Toll free: +1 833 440 2772 Email: support@catlink.cn... -
Page 19: Cleaning And Attentions
(Pay attention to removing the support rod (The Carbon Filter is recommended to expose of the rotating shaft on the back of the Globe). it to the sunshine once a month and replace it every two months). Toll free: +1 833 440 2772 Email: support@catlink.cn... - Page 20 (be sure to wipe and dry thoroughly after washing). cannot be washed directly). After cleaning up, install a new Carbon Filter back to the Waste Drawer, and follow the reverse steps to assemble the device properly. Toll free: +1 833 440 2772 Email: support@catlink.cn...
-
Page 21: Troubleshooting
ZERO 2 beeps, the Manual Mode indicator and the Mode Switch button indicator flash. Immediately press and hold the Mode Switch button again, release it after hearing 2 beeps. Operation complete. Toll free: +1 833 440 2772 Email: support@catlink.cn... - Page 22 Mode Switch indicator flashes. After the indicator light of the Mode Switch button is always on and a beep sounds, the weighing calibration is completed. Toll free: +1 833 440 2772 Email: support@catlink.cn...
-
Page 23: Accessories
【Accessories】 Name Product pictures Trash Liner Carbon Filter Box Ramp Clumping Litter Cat litter Odor Remover You can order the above products on Amazon.com or www.catlinkus.com Amazon.com www.catlinkus.com Toll free: +1 833 440 2772 Email: support@catlink.cn... -
Page 24: Product Specifications
【Product Specifications】 Product Name CATLINK AI Cat Litter Box（Pro - X）- SCOOPER Product Model CL-07 / CL-08 Main Material Product Size 23.62 x 22.83 x 27.95 inch Rated Voltage Rated Power Applicable Scope Cat (3.3-22 lbs) Weight 24.25 lbs Carried Standard GB 4706.1-2005... -
Page 25: Compare Catlink Models
√ Anti-pinch Sensor √ √ Radar Sensor √ √ UV Sterilization √ √ Deodorization √ √ NOTE: Deodorization function: This function is enabled by default. Closing and mode adjustment are not supported. Toll free: +1 833 440 2772 Email: support@catlink.cn... -
Page 26: Customer Service
We will provide customers with a one-year free warranty service. If you have questions or need assistance, contact us! Phone Support +1 833 440 2772 Mon–Fri: 10AM–6PM EST Email Support support@catlink.cn 24/7 Toll free: +1 833 440 2772 Email: support@catlink.cn... - Page 27 Toll free: +1 833 440 2772 Email: support@catlink.cn...
- Page 28 Toll free: +1 833 440 2772 Email: support@catlink.cn...
