Summary of Contents for CatLink CL-05

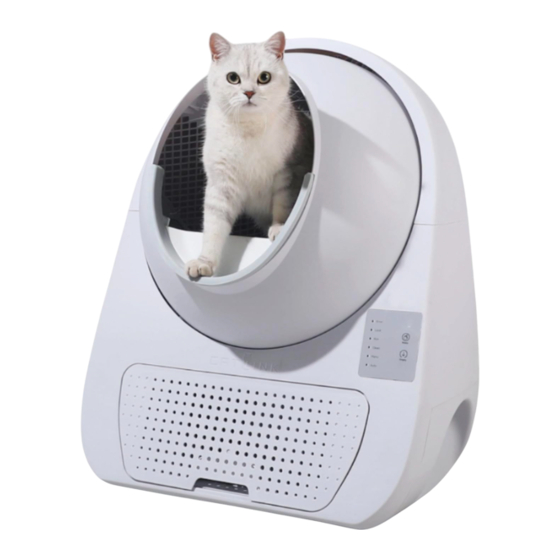

- Page 1 Link every thing for cat’ s life. CATLINK SCOOPER User Manual2.0 for AI Litter Box-PRO Shanghai Lianchong Intelligent Technology Co., Ltd...
-
Page 3: Table Of Contents
【Contents】 【Unpacking operation】 【Packing list】 【Product structure & Function differences】 【Working mode & Protection Mechanism】 【Control panel&Mode Description&Button Operation】 【Indicator conditions】 【Wi-Fi Connection】 【Cat litter Replacement】 【Product Cleaning and Attentions】 【Exception Dealing】 【Product Specifications】 【Catlink Features】 【Afer-sale Service】... -
Page 4: Unpacking Operation
【 Unpacking operation】 Check whether the items are complete according to the 【Product List】 (Page 3). Place the product properly according to the 【Product structure】 （ Page 4） . Insert the power adapter into the power port at the back of the product. -------------------------------------------------------------------------------------------please refer to picture 3.1 Check whether the waste bag is properly inserted, and properly push the waste bin back to its original... - Page 5 3） Make sure that the device is close to the Wi-Fi signal and far away from electrical appliances with strong interference..-----------------------------------------------------please refer to picture 5.3 【Picture 5.1】 【Picture 5.2】 【Picture 5.3】 When the power is turned on, the device will automatically turn on and wait for the device to complete the self-check (the ball cabin will reset and stop after turning counterclockwise and clockwise each half a turn).
-
Page 6: Packing List
The litter box can be used normally when the above steps are completed. 【Packing list】 Activated carbon filter cotton The filter cotton has been placed in the waste box. Catlink recommends taking it out and shining it once a month and replacing it every two months One CATLINK One Power... -
Page 7: Product Structure & Function Differences
【Product structure】 Cover Ball Cabin Base Waste Box... -
Page 8: Working Mode & Protection Mechanism
✓ UV sterilization Note: The ambient light needs to be turned on CATLINK APPafter the connection to the network The ambient light sensor above the panel can enable or disable the ambient light based on the ambient light You can set the function on your CATLINK The ambient light on the lid helps cats find the device in a dark room and prevent... - Page 9 【Working mode】 Icon of App Mode Notifications Operation method &Control panel "In this mode, if the device detects a cat's entering and leaving, it will automatically cleanthe ball cabin Auto mode once after the safe time has passed." In this mode, you can start or Manual Mode pause the filter cat litter by manual Operation through APP...
- Page 10 【Protection Method】 Protective Priority Notifications function level Radar protection The radar protection will be activated when a moving object enters *Only supported the ball cabin, and the ball cabin will stop rotating; The ball cabin will by Pro version rotation again when the object is confirmed to leave. The ball cabin will stop rotating when an object larger than 1.5kg Protection from weighing...
-
Page 11: Control Panel&Mode Description&Button Operation
【Control panel】 Error Wi-Fi Child safety lock indicator indicator indicator Auto mode Timer Mode Start/Pause indicator indicator button Manual Mode Empty Mode Mode indicator indicator button 【Button Functions】 Mode button The mode will be switched in order from Cat, Manual, Timer, Empty in a cyclicThe mode will be switched in order from Cat, Manual, Timer, Empty in a cyclic manner each time you press the button. - Page 12 If the Panel lock indicator is off, the panel locking is successfully disabled. Note: This key can also be turned on or off on CATLINK APP Wi-Fi connection button Press and hold the Mode button and the Start/Pause button. Release the button when you hear the second beeping sound.
- Page 13 【Indicator conditions】 Lighting Indicator Notifications conditions The device is in the Auto mode. the device is available for cat to use and will sense the cat's Auto mode indicator Constantly on entering and leaving and operate automatically. The device is in the Manual mode. The device is available for a cat to use and needs to be Manual Mode indicator Constantly on...
-
Page 14: Indicator Conditions
【Indicator conditions】 Lighting Indicator Notifications conditions Error indicator+ Fast flashing During weighing, the device is suspended Child safety lock indicator Slow flashing During radar protection, the device is suspended Lights off Not connected Constantly on Wi-Fi indicator Wi-Fi connection Flashing Connecting Lights off... -
Page 15: Wi-Fi Connection
Note: Name of WiFi cannot contain Chinese, spaces, or special characters, so asnot to affect the WiFi connection. Open the CATLINK to register and log in. Find and click "Add Device" -> "AI Litter Box" and follow the instructions. *Please authorize location information. Android need to turn on GPS. - Page 16 WiFi password is correct. There may be a problem of poor network connection for some Android users. If possible, please use other phones for network connec- tion.After the network is successfully connection, log in to the CATLINK on your original phone and you can use it normally."...
- Page 17 Mode Manu Empty 【Picture 6.1】 【Picture 7.1】...
-
Page 18: Cat Litter Replacement
【Cat litter Replacement】 After the ball cabin is reset, take out the waster Short press the mode button once until it switches to the empty mode box, seal and discard the waste cat litter, put on a new waste bag, and push the waste box back to its original position The ball cabin starts to rotate clockwise when a single short press of the start/pause button... -
Page 19: Product Cleaning And Attentions
【Product Cleaning and Attentions】 Open the cover--------- Refer to the steps of 【Cat litter Take out the ball cabin (pay Replacement】 (Page 15) , and attention to remove the support- power off after the cat litter is ing rod of the rotating shaft on empty the back of the ball cabin) Take out the waste box and the filter cotton... - Page 20 Parts can be wiped with wet wipes ( contains After cleaning up, install a new filter cotton electronic parts and cannot be washed directly) back to the waste box, and follow the reverse steps to assemble the device properly...
-
Page 21: Exception Dealing
【Exception Dealing】 Operation Exceptions Operation steps method The device stops running due to Press the Start/Pause button abnormal radar/weighing protection Cancel by manual once or full waste box Press the Start/Pause button The device stops running due to the Cancel by manual once anti-pinch function being triggered Empty the... - Page 22 Operation Exceptions Operation steps method Empty the cat litter Inaccurate weighing data(Inaccura- Adjust the cies caused by the use environ- weighing Power off and ment have been excluded)） restart the device Put a 1.5kg object into the ball cabin after rotating the ball cabin, 1.5kg press and hold the mode button, release it after hearing two beeps,...
-
Page 23: Product Specifications
【Product Specifications】 Name CATLINK AI Litter Box-Scooper Pro Product Model CL-05/CL-06 Primary material Size 600x580x710mm Rated voltage 12V/2A Rated power General Scope Cat (1.5-10 kg) Weight 10KG Carried standard GB 4706.1-2005 The specifications of different models or batches of products may vary. - Page 24 The main account can share unlimited permissions to family menmbers and friends, and their can control the device or view health reports through the APP 【CATLINK unlimited numbers of cat】 A single device can be associated with multiple cats without limitation.
- Page 25 The CATLINK APP page will be updated from time to time. The actual report page may be different from the above picture. The above picture is for reference only.
-
Page 26: Afer-Sale Service
【Afer-sale Service】 According to China's national regulations, we will provide customers with a one-year free warranty service. After-sales service contact information in Mainland China 1.Customer service of your CATLINK 2.WeChat of after-sale:18121365823、 18121136180 3.Tel Number of after-sale:18117545826、 18121136180 4.mailbox of after-sale:customer@catlink.cn... - Page 27 【Service Card】 Dear CATLINK user, thanks for using CATLINK series products, please read the following warranty clauses carefully before using this product. 1. The warranty period of this product is: within one year from the date shown on the valid purchase certificate.
- Page 28 【Service Card】 Name of user Tel of user Address of user Name of product Purchase date The way of buying Problem Description...
- Page 30 Link every thing for cat’ s life. Shanghai Lianchong Intelligent Technology Co., Ltd Company address: Kehai Building, 800 Naxian Road, Pudong New Area, Shanghai, China Company number:021-50686520 Company mailbox:business@catlink.cn Company website:www.catlinks.cn...
- Page 31 FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
