THOMSON 510050 Quick Start Manual

Remote control
EN
for electric gate opener
ref. 510050
A - SAFETY INSTRUCTIONS
A1 - OPERATING PRECAUTIONS
• Read this manual carefully before installing.
• Do not allow children to handle the product.
• For detailed use of the remote control (pedestrian access,
deleting), please refer to the gate opener instructions.
• This remote control is compatible only with Thomson gate
openers fitted with one of the electronic cards described in
these instructions. If in doubt regarding compatibility, please do
not hesitate to contact our technical support service.
A2 - SERVICING AND CLEANING
• Use a soft, slightly damp cloth to clean your product.
• Do not use abrasive or corrosive substances.
• Do not spray any products directly onto the unit.
A3 - RECYCLING
The disposal of used batteries in household waste
is strictly forbidden. Batteries/accumulators
containing harmful substances are marked with
symbols (shown opposite) which indicate that it is
forbidden to discard them in the household waste.
The corresponding heavy metals are referred to
as follows: Cd= cadmium, Hg= mercury, Pb= lead.
You can dispose of these used batteries/accumulators at local
waste treatment centres (centres for sorting recyclable materials),
which are required to accept them. Keep batteries/button cells/
accumulators out of reach of children and store them in a safe
place not accessible to them. They could be swallowed by
children or pets. Risk of death! In the event that a battery is
swallowed, consult a doctor or go to A&E immediately. Never
short-circuit the batteries, and do not burn or recharge them as
they may explode!
This symbol means that devices no longer in use
should not be disposed of with household waste as
they are likely to contain hazardous substances that
are dangerous to health and the environment.
Return the equipment to your local distributor or use
the recycling collection service provided by your
local council
.
Pour en savoir plus :
www.quefairedemesdechets.fr
V6
B - PRODUCT DESCRIPTION

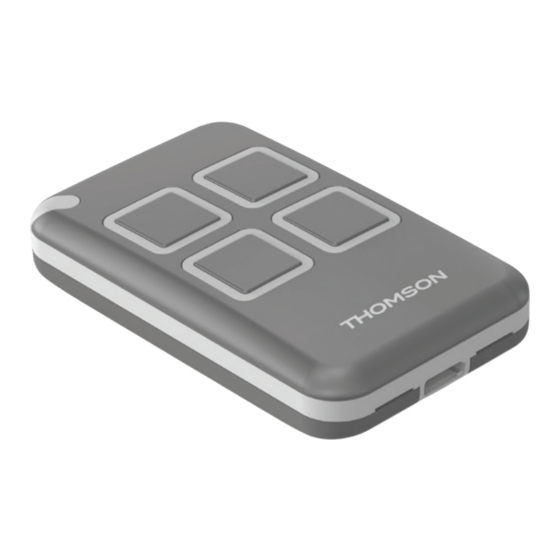

B1 - REMOTE CONTROL
Every key can be programmed to operate an automatic sliding
or swinging gate opener.
Only one key is required to control one automatic opener.
C - REPLACING THE REMOTE CONTROL
BATTERY
D - TECHNICAL AND LEGAL INFORMATION
D1 - TECHNICAL FEATURES
• Type: AM On/Off Keying (OOK) modulation. 16-bit Rolling
code encoder (i.e. 65,536 possible combinations)
• Frequency: 433.92MHz
• Power supply: CR2032
• Keys: 4 keys
• Radiated power: < 10mW
• Battery life: 2 years at a rate of 10 x 2s uses per day
• Operating temperature: -20°C/+60°C
• Protection rating: IP40 (For indoor use only: home, car or
sheltered location)
• Your product is guaranteed for parts and labour for 1 year
from the date of purchase. Proof of purchase must be retained
for the duration of the warranty period.
• The warranty does not cover the battery, nor does it cover
damage caused by negligence, knocks, or accidents.
• None of the components of this product may be opened or
repaired by any persons not employed by Avidsen except to
insert or replace the battery.
• The warranty will be void if the device is tampered with.
D2 - HELP AND ADVICE
• Despite the care we have taken in designing our products and
drafting these instructions, you may still encounter difficulties
when installing your product, or have questions. If this is the
case, please do not hesitate to contact one of our specialists
who will be glad to help.
• If you have any operating problems during or shortly after the
installation, please ensure you are next to your installation when
contacting us, so that one of our technicians can diagnose the
source of the problem, as this is often caused by an incorrect
setting or an installation that is not to specification. If the
problem is caused by the product itself, the technician will give
you an RMA number so that you can return the unit to the
shop.
Without this RMA number, the shop may refuse to exchange
your product.
If you need advice for the operation or installation of your
product,
please contact our after-sales service team technicians:
0 892 701 369 0,35 € / min
Monday to Friday, 9am to 12pm, and 2pm to 6pm.
Avidsen undertakes to keep a stock of spare parts for this
product throughout the contractual warranty period.
D3 - DECLARATION OF CONFORMITY
Declaration of conformity with the EMC Directive
AVIDSEN declares that the equipment described below:
Remote control 510050
Complies with the RED directive and its conformity has been
assessed pursuant to the applicable standards in force.
EN 300 220-1 V3.1.1
EN 300 220-2 V3.2.1
EN 62368-1:2014 + A11:2017
EN 62479:2010
EN 301 489-1 V2.2.3
EN 301 489-3 V2.1.1
Tours
date: 15/11/2022
Alexandre Chaverot,
CEO
Discover our entire range
on www.mythomson.com
Avidsen - 19 avenue Marcel Dassault
37200 Tours - France
