Summary of Contents for Solt GGSRCB900BS

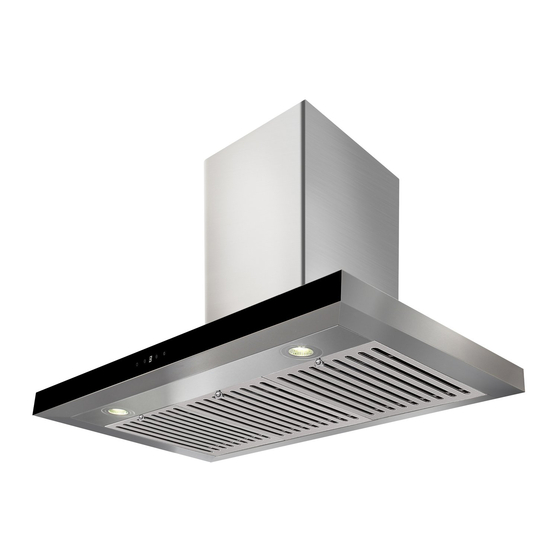

- Page 1 MODEL GGSRCB900BS V1.2 0923 User Manual 90cm Box Canopy Rangehood...
- Page 2 GGSRCB900BS Welcome Residentia Group Congratulations on purchasing your new 90cm Box Canopy Rangehood. — Sôlt is proudly distributed within Australia by Residentia Group Pty Ltd. Head Office 165 Barkly Avenue Please refer to the warranty card at the rear of this manual for information Burnley Victoria regarding your product’s parts and labour warranty, or visit us online at:...
-
Page 3: Table Of Contents
User Manual Contents Safety Information Your Rangehood Operating Instructions Installation Instructions Cleaning & Maintenance Troubleshooting Technical Specifications Purchase Details Warranty Information Customer Care Sôlt recommends the use of original spare parts. When contacting our customer service team by calling 1300 11 4357, or by e-mailing support@residentiagroup.com.au, please ensure that you have the following information at hand, which can befound on your appliances’... -
Page 4: Safety Information
In the event that you misplace this manual, a digital version can be found by visiting persons (including children) with reduced physical, our website at www.solt.house sensory or mental capabilities, or a lack of experience and knowledge, unless they have been given adequate •... - Page 5 User Manual Exhaust Ducting Installation • Safe operation is only possible when the negative pressure in the room where the appliance is located • The following rules must be strictly followed to obtain does not exceed 4 Pa (0.04 mbar). This can be achieved optimal air extraction.
-
Page 6: Your Rangehood
GGSRCB900BS Your Rangehood GGSRCB900BS Rangehood Key 1. Control Panel Included Accessories Tools Required for Installation • 1 × Rangehood, User Manual & Quick Start Guide • Ducting relevant to your installation requirements, including any rigid bends, vents or adapters • 1 × Expandable Ø 150mm Pipe •... -
Page 7: Operating Instructions
User Manual Operating Instructions Control Panel Control Panel Key 4. Increase Speed Press this button to increase the extraction speed. 1. Power NOTE: When operating on power level 3, the increase Press this button to turn the rangehood on and off. button will not change any speed settings as it is already 2. -
Page 8: Installation Instructions
GGSRCB900BS Installation Instructions Installation Safety Ducted Installation • WARNING: Before starting the installation, please refer For maximum performance we recommend installing to the Safety Information section. with rigid or semi rigid ducting. Use cable ties or suitable duct tape to secure the flexible pipe or ducting to the •... - Page 9 User Manual Positioning the Rangehood Wall Mounting Preparation NOTE: When the rangehood and appliance supplied • IMPORTANT: Do not connect the power cable until the with energy other than electricity are simultaneously in installation is complete! Sôlt recommends installing in a operation, the negative pressure in the room must be not team of at least two people to avoid any accidents.
- Page 10 GGSRCB900BS Installation Instructions (continued) Safety Holes Lower Chimney Bracket Installation 1. Set the positions of the two safety holes on the wall. 1. Set the positions of the two chimney bracket holes. 2. Drill the two holes into the wall using an 8mm drill-bit.
- Page 11 User Manual Upper Chimney Bracket Installation 1. Set the position of the two chimney bracket holes. 2. Drill the two holes into the wall using an 8mm drill-bit. 3. Gently insert two wall plugs. 4. Attach the upper chimney bracket to the wall plugs Need Help? You can speak to our using the two ST4 ×...
-
Page 12: Cleaning & Maintenance
GGSRCB900BS Cleaning & Maintenance Cleaning Your Rangehood Task Frequency Clean the Exterior Surface: with a soft cloth lightly dampened in lukewarm Weekly water, thoroughly wrung. A compatible cleaning solution may also be used. Ensure the rangehood is powered off NOTE: To prevent any scratches, ensure that you use a soft cloth when before commencing cleaning. - Page 13 Note: An activated carbon filter is not included. But you hood. User Manual Cleaning the Grease Filters Installing and Replacing the Carbon Filters • Soak the filter in your kitchen sink for approximately The carbon filters are an optional spare part available to 3 minutes in max 30º...
-
Page 14: Troubleshooting
GGSRCB900BS Troubleshooting For Minor Faults Problem Possible Cause Solution The lights can be turned on, The fan switch, the motor or the Call our After Sales Support Team for however the motor does not. capacitor may be damaged. further guidance. -
Page 15: Technical Specifications
User Manual Technical Specifications Product Specifications Model GGSRCB900BS Finish Stainless Steel w. Black Glass Fascia Extraction 1000m³/hr Speed Settings 4 (Low, Medium, High, Boost) Aluminium Filter 3 × Aluminium Baffle Filters Optional accessory, for purchasing details please Carbon Filters email parts@residentiagroup.com.au to learn more Lighting 2 ×... -
Page 16: Purchase Details
GGSRCB900BS Purchase Details For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. STORE DETAILS STORE NAME ADDRESS TELEPHONE PURCHASE DATE PRODUCT DETAILS MODEL NO. - Page 17 User Manual Notes...
-
Page 18: Warranty Information
GGSRCB900BS Warranty Information WARRANTY TERMS AND CONDITIONS IN THIS WARRANTY RANGEHOODS ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in This document sets out the terms and conditions of the the ACL;... - Page 19 User Manual You will bear the cost of transportation, travel and For Appliances and services provided by Residentia delivery of the Appliance to and from Residentia Group Group in Australia, the Appliances come with a or its ASR. If you reside outside of the service area, you guarantee by Residentia Group that cannot be excluded will bear the cost of: under the Australian Consumer Law.
- Page 20 An initiative by Residentia Group T. 1300 11 4357 E. support@residentiagroup.com.au www.solt.house...
