- Page 1 MODEL GGSRHF600W V1.4 0923 User Manual 60cm Fixed Rangehood...
- Page 2 GGSRHF600W Welcome Residentia Group Congratulations on purchasing your new 60cm Fixed Rangehood. — Sôlt is proudly distributed within Australia by Residentia Group Pty Ltd. Head Office 165 Barkly Avenue Please refer to the warranty card at the rear of this manual for information Burnley Victoria regarding your product’s parts and labour warranty, or visit us online at:...
-
Page 3: Table Of Contents
User Manual Contents Safety Information Installation Instructions Your Rangehood Operating Instructions Cleaning & Maintenance Troubleshooting Technical Specifications Purchase Details Warranty Information Customer Care Sôlt recommends the use of original spare parts. When contacting our customer service team by calling 1300 11 4357, or by e-mailing support@residentiagroup.com.au, please ensure that you have the following information at hand, which can befound on your appliances’... -
Page 4: Safety Information
GGSRHF600W Safety Information Conditions of Use Before Installation & Maintenance This appliance is intended to be used in household • Read these instructions carefully before installing or and similar applications such as farm houses or by using this appliance. customers in serviced apartments, holiday apartments •... - Page 5 User Manual Operation & Maintenance • Rangehoods and other cooking fume extractors may adversely affect the safe operation of appliances • WARNING: Follow these instructions carefully to avoid burning gas or other fuels (including those in other injury, electric shock or fire. rooms) due to back flow of combustion gases.
- Page 6 GGSRHF600W Safety Information (continued) outside. In the extraction mode, indoor air is removed Disposal from the kitchen and the adjacent rooms — without • This appliance is labeled in compliance with European sufficient air intake this creates a vacuum. Toxic gases...
-
Page 7: Installation Instructions
User Manual Installation Instructions Installation Safety Electrical Connection • WARNING: Before starting the installation, please refer • Always check that the method of installation complies to the Safety Information section. with the standards of local building, gas and electrical authorities. Before connecting your rangehood to the •... - Page 8 GGSRHF600W Installation Instructions (continued) Recirculating Installation Check-Valve Installation • Before beginning the installation of your rangehood, • Hold onto check valve with your hands, align the box consider your ducting method. gap, place the check valve into the gap, and then rotate until the three groves of the check valve are secured.
- Page 9 User Manual Ducted Installation Positioning the Rangehood For maximum performance we recommend installing NOTE: When the rangehood and appliance supplied with rigid or semi rigid ducting. Use cable ties or suitable with energy other than electricity are simultaneously in duct tape to secure the flexible pipe or ducting to the operation, the negative pressure in the room must be not exceed 4 Pa (4 ×...
- Page 10 GGSRHF600W Installation Instructions (continued) Cupboard Mounting Installation Wall Mounting Installation • IMPORTANT: Do not connect the power cable until the • To mount your rangehood on the wall, drill two 10mm installation is complete! Sôlt recommends installing in a diameter holes 538mm apart aligning centred directly team of at least two people to avoid injuries.
-
Page 11: Your Rangehood

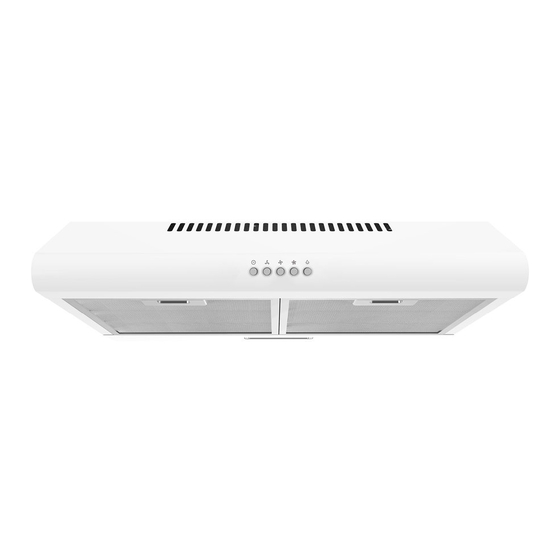

User Manual Product Overview Your Rangehood YOUR RANGEHOOD GGSRHF600W IN PARAMETERS Ø120 Ø120 d Voltage and Frequency 240V~ 50Hz-60Hz Motor Input Power:100W/125W MAIN PARAMETERS tain circumstances electrical appliance may be a danger hazard. Rated Voltage and Frequency 220-240V~ 50Hz-60Hz Motor Input Power:100W/125W... -
Page 12: Operating Instructions
GGSRHF600W Operating Instructions Control Panel Control Panel Key 1. Power 4. High Speed Press this button to turn off the rangehood fan. Press this button to set the extraction to the highest speed. Use this fan setting for heavy smoke or steam to 2. -
Page 13: Cleaning & Maintenance
User Manual Cleaning & Maintenance Cleaning Your Rangehood Task Frequency Clean the Exterior Surface: with a soft cloth lightly dampened in lukewarm Weekly water. A compatible cleaning solution may also be used. Ensure the rangehood is powered off NOTE: To prevent any scratches, ensure that you use a soft cloth when before commencing cleaning. - Page 14 GGSRHF600W Cleaning & Maintenance (continued) Cleaning the Grease Filters Replacing the Light Bulb • Soak the filter in your kitchen sink for approximately A replacement light is available to purchase by contacting 3 minutes in max 30º C water with a mild, non-corrosive our After Sales Support Team.
-
Page 15: Troubleshooting
User Manual Troubleshooting For Minor Faults Problem Possible Cause Solution The lights can be turned on, The fan switch, the motor or the Call our After Sales Support Team for however the motor does not. capacitor may be damaged. further guidance. The blades may be blocked. -
Page 16: Technical Specifications
GGSRHF600W Technical Specifications Model GGSRHF600W Finish White Extraction 300m³/hr Speed Settings 3 (Low, Medium, High) Aluminium Filters 2 × Aluminium Grease Filters Optional accessory, for purchasing details please Carbon Filter e-mail parts@residentiagroup.com.au to learn more Lighting 1 × 1.5W LED Max. -
Page 17: Purchase Details
User Manual Purchase Details For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. STORE DETAILS STORE NAME ADDRESS TELEPHONE PURCHASE DATE PRODUCT DETAILS MODEL NO. -
Page 18: Warranty Information
GGSRHF600W Warranty Information WARRANTY TERMS AND CONDITIONS IN THIS WARRANTY RANGEHOODS ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in This document sets out the terms and conditions of the the ACL;... - Page 19 User Manual You will bear the cost of transportation, travel and For Appliances and services provided by Residentia delivery of the Appliance to and from Residentia Group Group in Australia, the Appliances come with a or its ASR. If you reside outside of the service area, you guarantee by Residentia Group that cannot be excluded will bear the cost of: under the Australian Consumer Law.
- Page 20 An initiative by Residentia Group T. 1300 11 4357 E. support@residentiagroup.com.au www.solt.house...
